5. Seal the IDU COM connector using tar seal or weatherproof tape to protect
against rain and moisture.
6. Route the Ethernet cable from the ODU to the IDU following your cable plan
and connect it to the ODU port on the IDU (see Figure 1-5). The RJ-45 port
LED on the IDU should turn on to indicate a valid link.
Note: Connecting the Ethernet cable to the IDU powers on the ODU.
Grounding Wire Connection
When connecting a ground wire to the ODU, be sure to use the grounding screw
located on the base od the unit.
Be sure that grounding is available and that it meets local and national
Caution:
electrical codes.
To connect a grounding wire to the ODU, follow these steps:
1. Connect the ground wire to the grounding screw (marked
it.

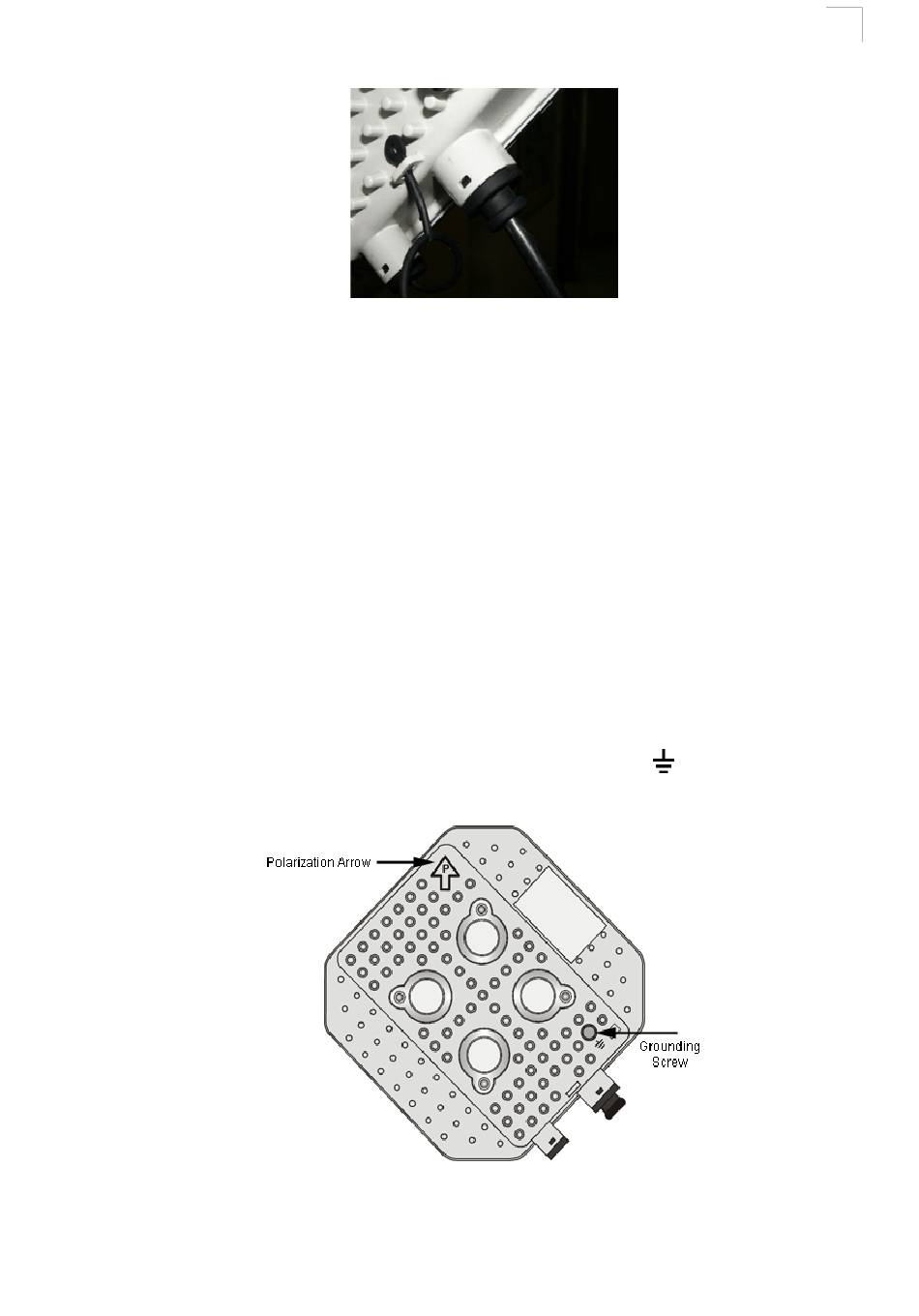

Figure 2-5 IDU COM Port Connection

Figure 2-6 ODU Grounding Screw

ODU Cable Connections
) and firmly tighten
2
2-7
