4.2.2

Inside view

Control variants
• Machines with M1.xx control
There are additional control elements inside the machine for function control.
• Machines with M2.4x control
A "JOB list" label to define the welding tasks is attached to the inside of the casing
cover.
Item Symbol Description
1
2
3
4
5
6
7
8
9
10
099-005172-EW501
21.09.2011
Machine description – quick overview
0
Sticker, JOB List
Operating elements (see chapter Internal operating elements)
Wire feed unit
Operating / Connection element not used in this system!
Connector plug, welding current "+"
Welding current connection on wire feed unit
Earth cable connecting (PE)
Connection of green-yellow earth cable from the intermediate tube package
Operating / Connection element not used in this system!
Wire spool holder
Connecting thread (G¼")
Shielding gas
7-pole connection socket
Wire feed unit control lead
NOTE

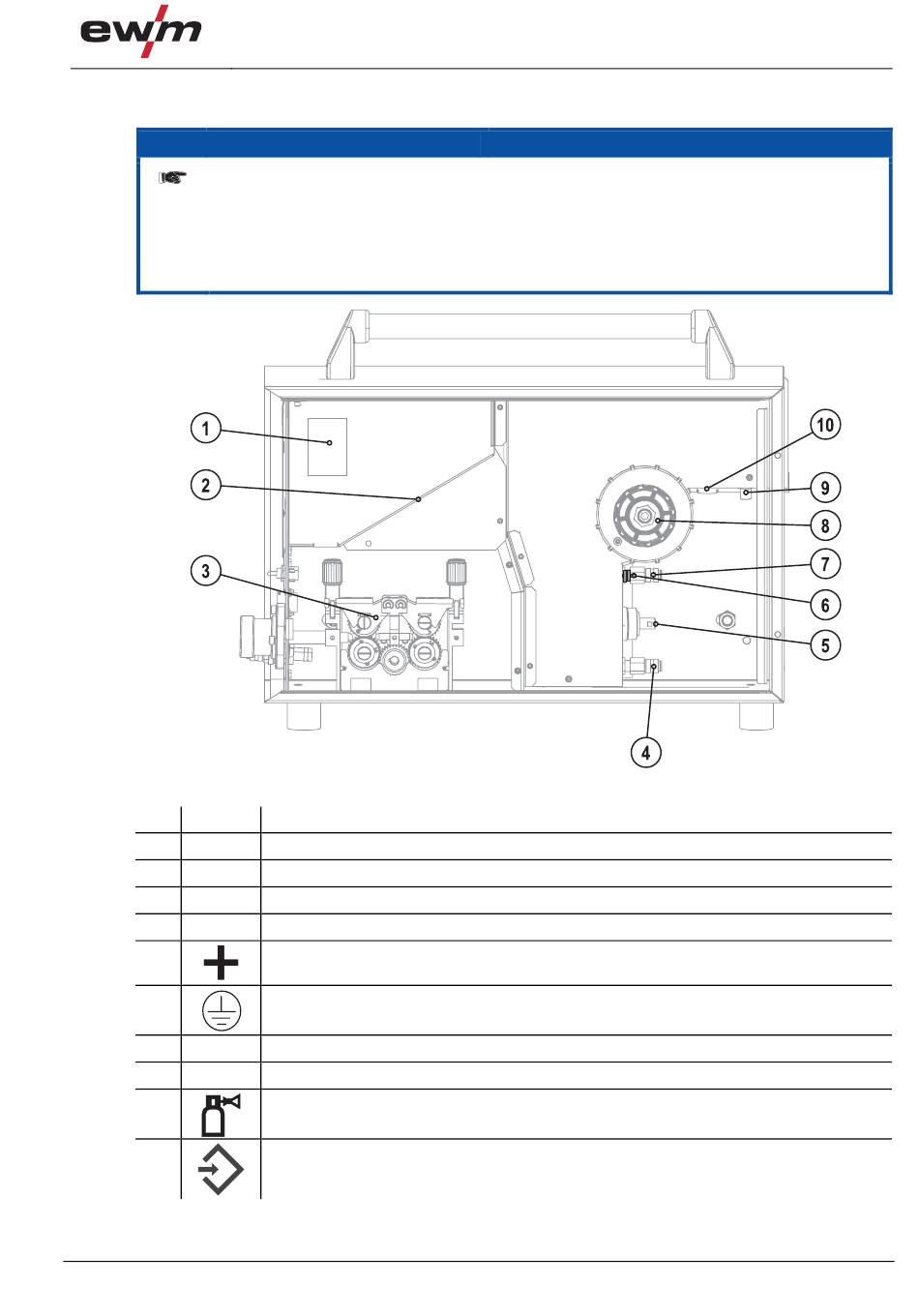

Figure 4-5
Saturn drive 41
