5.5

Inserting the wire electrode

5.5.1

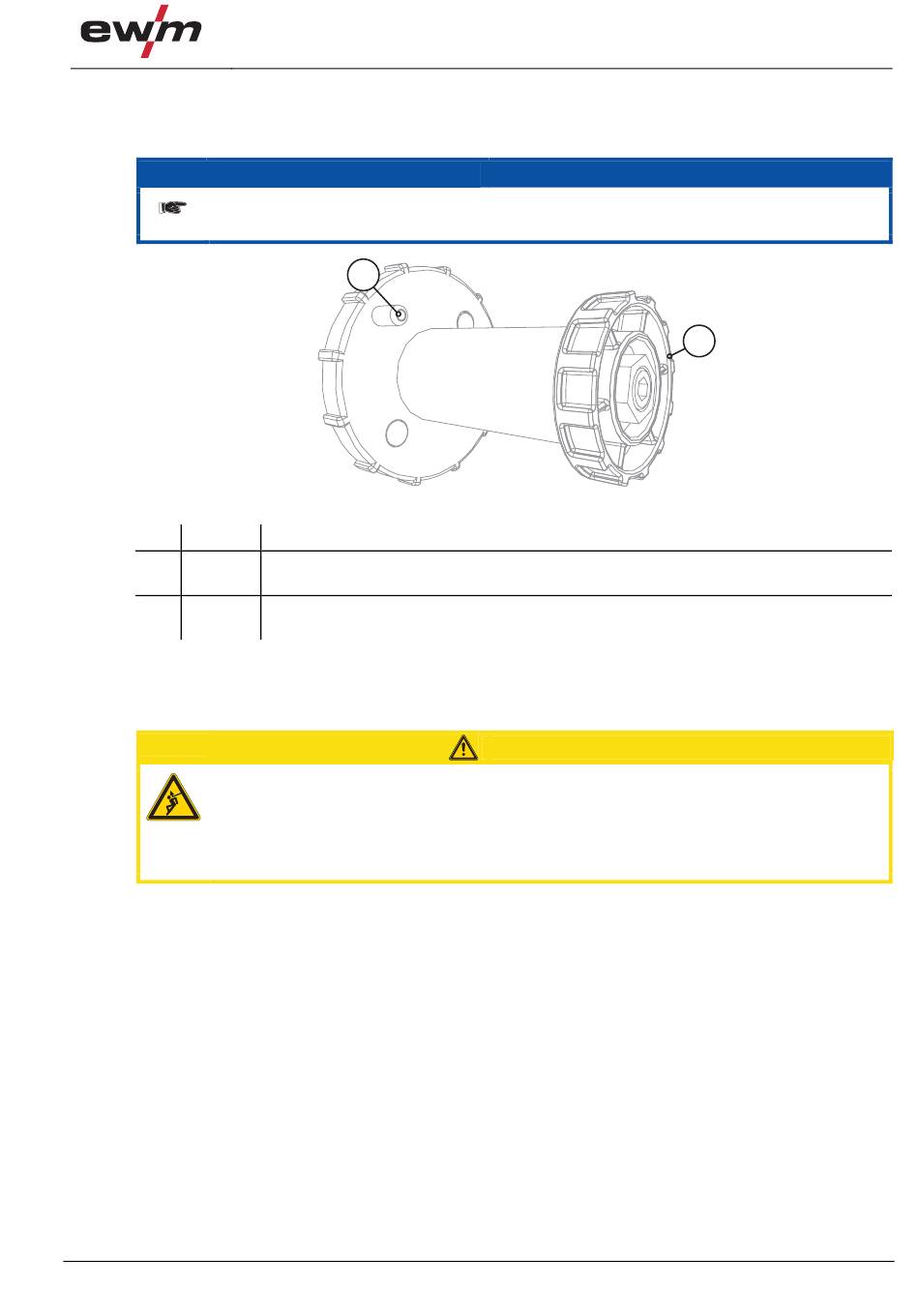

Inserting the wire spool

Standard D300 wire spool holder can be used. Adapters (see accessories) are required
when using standardised basket coils (DIN 8559).
Item Symbol Description
1
2
• Loosen knurled nut from spool holder.
• Fix welding wire reel onto the spool holder so that the carrier pin locks into the spool bore.
• Fasten wire spool using knurled nut.
Risk of injury due to incorrectly secured wire spool.
If the wire spool is not secured properly, it may come loose from the wire spool holder
and fall to the ground, causing damage to the machine and injuries.
• Securely fasten the wire spool to the wire spool holder using the knurled nut.
• Before you start working, always check the wire spool is securely fastened.
099-005172-EW501
21.09.2011
1
0
Carrier pin
For fixing the wire spool
Knurled nut
For fixing the wire spool
Design and function
NOTE
Figure 5-6
CAUTION
Inserting the wire electrode
