Machine description – quick overview
Machine control – Operating elements
4.3.3.4

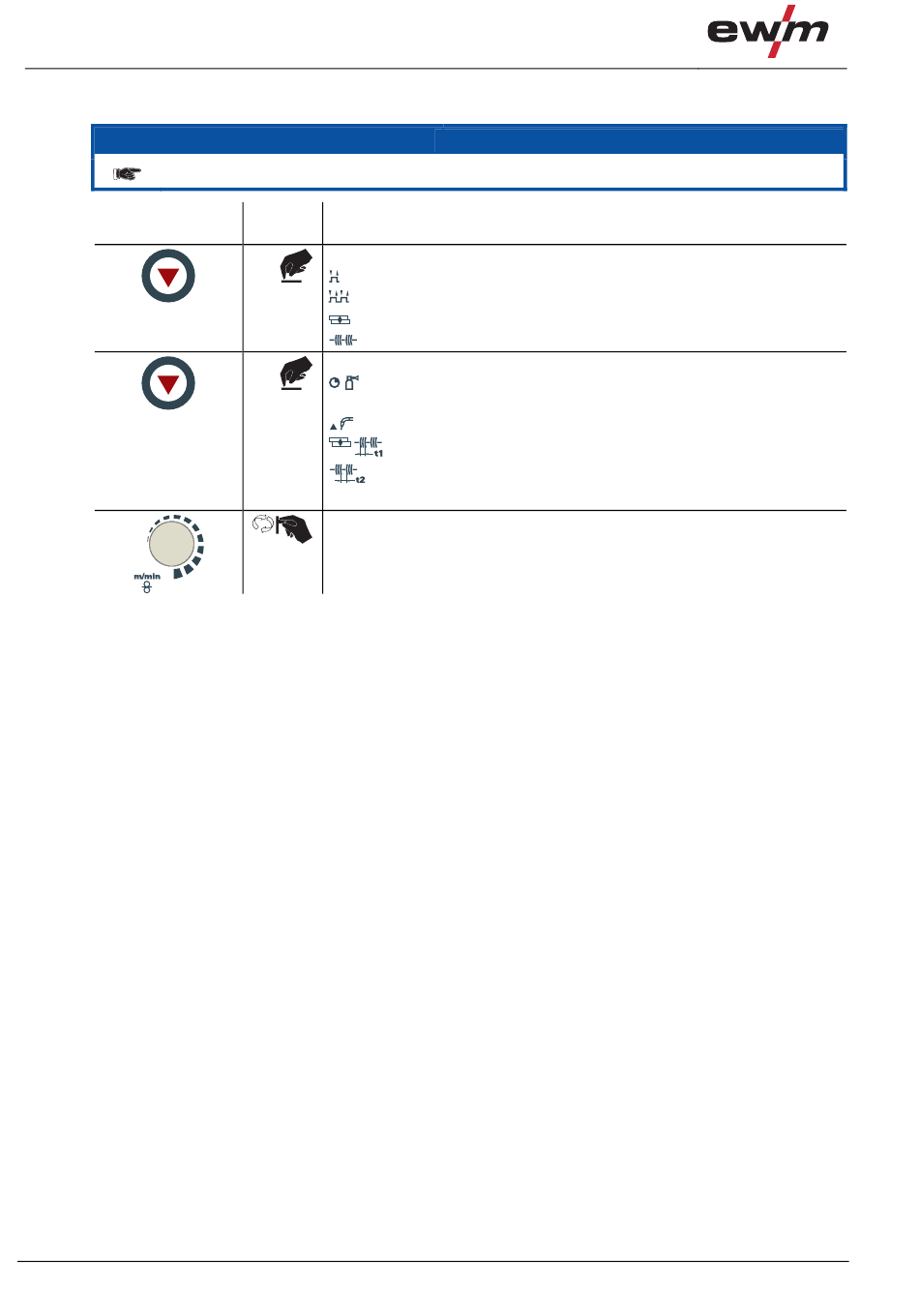

Setting the operating mode and runtime parameters

The parameter values set are preset in the JOB and can be modified if necessary.
Operating
element
32
Action Result
Select operating mode:
n x Non-latched
Latched
Spots
Interval
Select welding parameter:
n x
Set gas post-flow time "GnS"
(0.0 s to 10.0 s)
Set wire burn-back time "drb" (-50% to 50%)
Spot/interval time "t1" (0.1 s to 5.0 s)
Interval/pause "t2" (0.1 s to 2.0 s)
The selected parameter is shown on the display
Set the parameter chosen
NOTE
