Machine description – quick overview
Saturn drive 41L
4.1.2

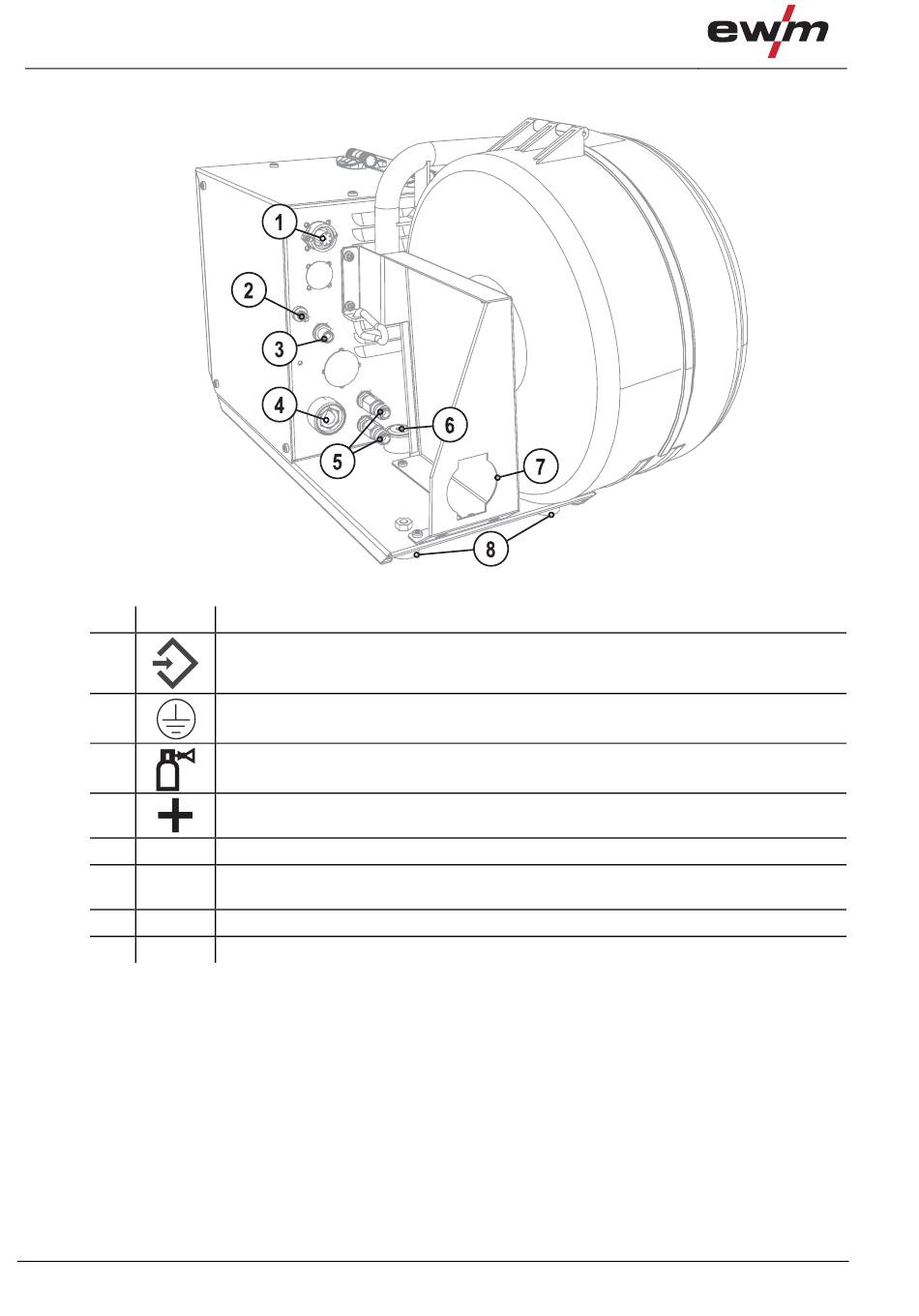

Rear view

Item Symbol Description
1
2
3
4
5
6
7
8
16
0
7-pole connection socket
Wire feed unit control lead
Earth cable connecting (PE)
Connection of green-yellow earth cable from the intermediate tube package
Connecting thread (G¼")
Shielding gas
Connector plug, welding current "+"
Welding current connection on wire feed unit
Operating / Connection element not used in this system!
Take up point
For housing arbor, wire feed unit
Intermediate tube package strain relief
Machine feet
Figure 4-2
