4 Machine description – quick overview
4.1

Saturn drive 41L

4.1.1

Front view

Item Symbol Description
1
2
3
4
5
6
099-005172-EW501
21.09.2011
Machine description – quick overview
0
Carrying handle
Machine control
See Machine control – operating elements chapter
Wire feed unit cover lock
Central connection for welding torch (Euro)
Integrated welding current, shielding gas and torch trigger
Operating / Connection element not used in this system!
Machine feet

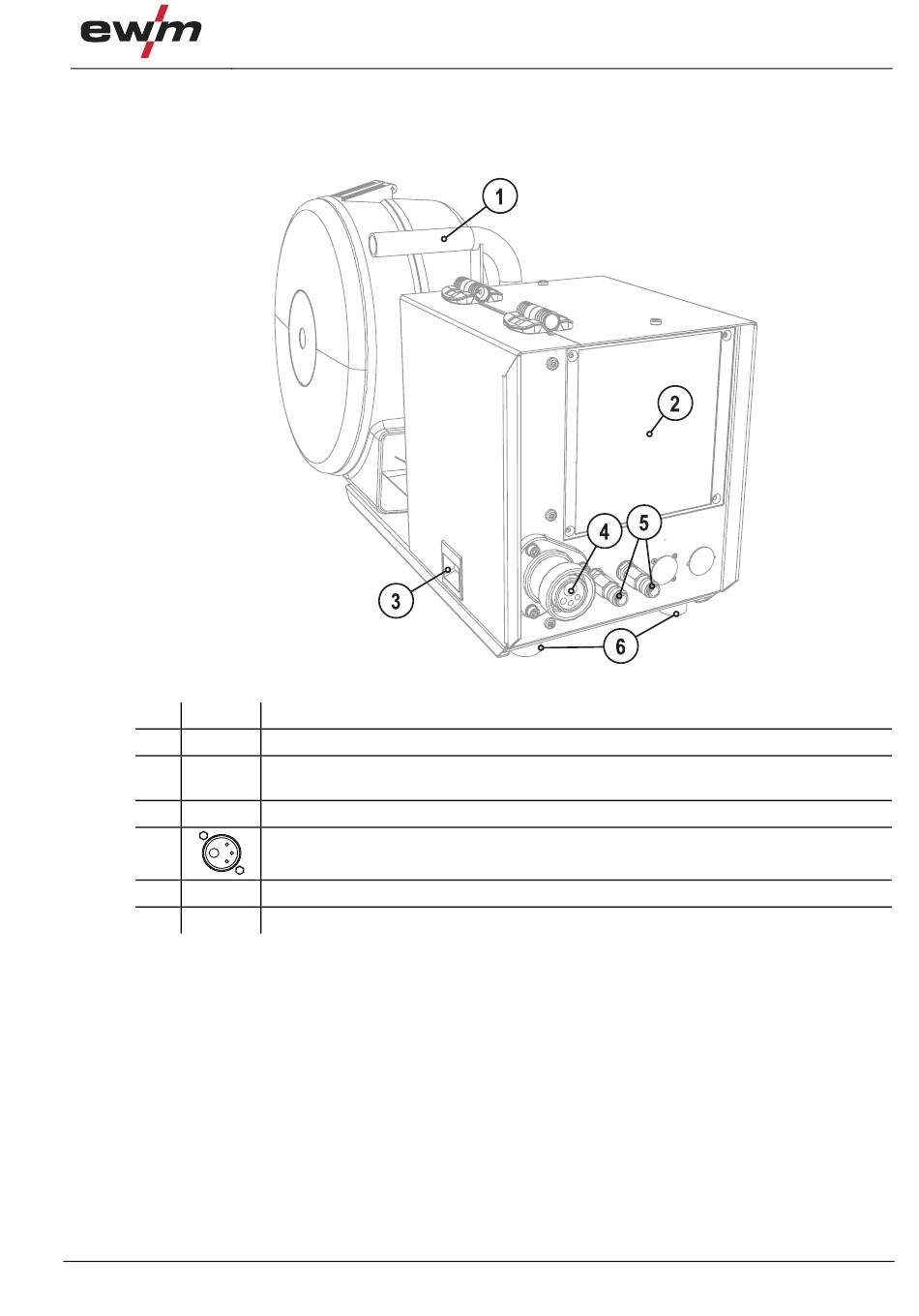

Figure 4-1
Saturn drive 41L
