Design and function
Transport and installation
5.2.2

Intermediate tube package connection

5.2.2.1

Saturn drive 41L

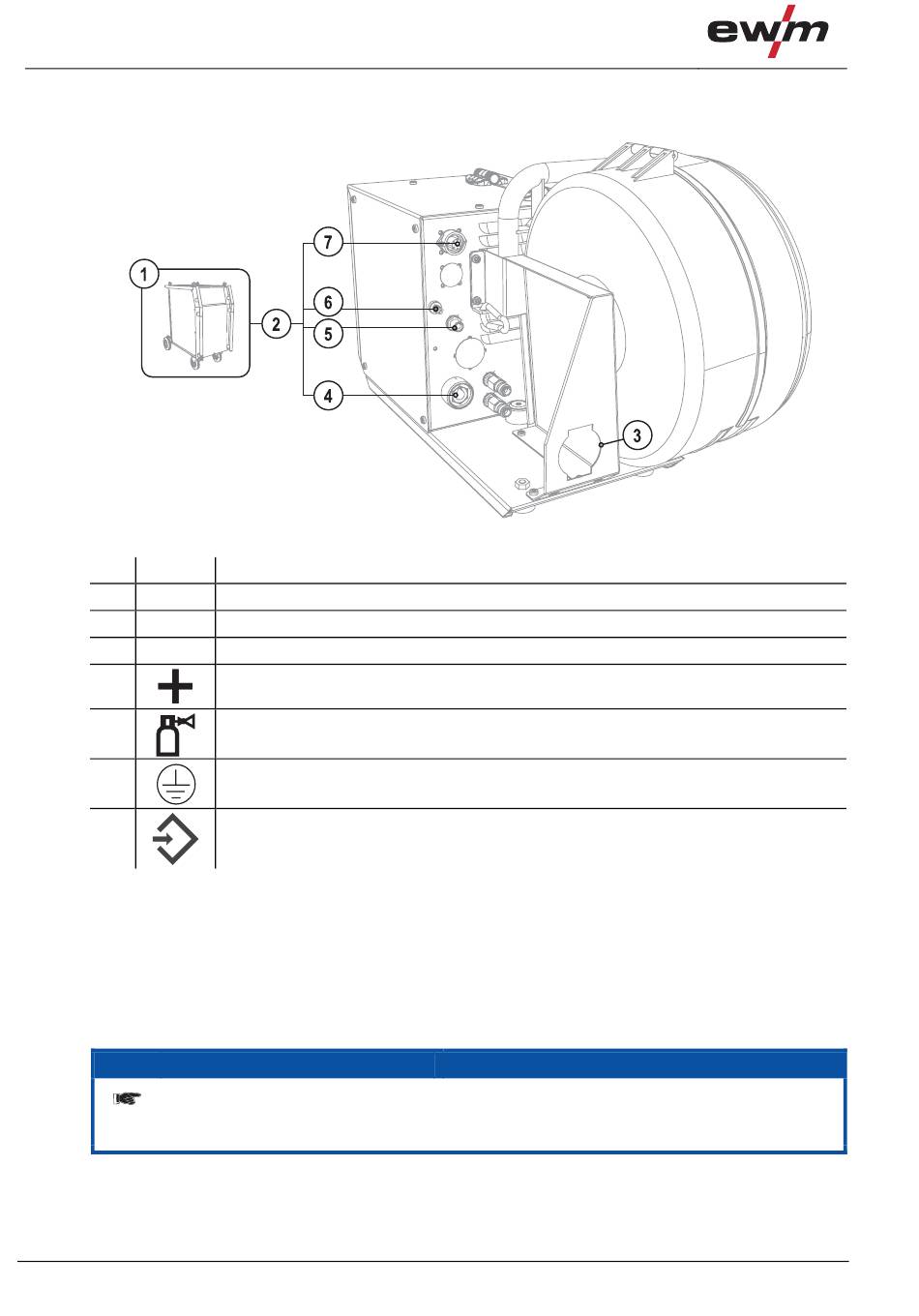

Item Symbol Description
1
2
3
4
5
6
7
• Insert the end of the tube package through the strain relief of the tube package and lock by turning to
the right.
• Insert the plug on the welding current lead into the welding current connection socket "+" and lock.
• Connect crown nut of the shielding gas line to the G¼" connecting nipple.
• Screw the eyelet of the earth lead on to the connecting nipple of the earth lead.
• Insert cable plug on the control lead into the 7-pole connection socket and secure with crown nut (the
plug can only be inserted into the connection socket in one position).
A pilot static tube for a gas flow of 0-16 l/min is fitted on each wire feed unit as
standard. For applications where a higher gas flow rate is required (e.g. for aluminium),
a pilot static tube of 0-25 l/min (see accessories) should be installed.
38
0
Power source
Intermediate tube package
Intermediate tube package strain relief
Connector plug, welding current "+"
Welding current connection on wire feed unit
Connecting nipple G¼, shielding gas connection
Earth cable connecting (PE)
Connection of green-yellow earth cable from the intermediate tube package
7-pole connection socket
Wire feed unit control lead
Figure 5-2
NOTE
099-005172-EW501
21.09.2011
