5.2.2.2
Saturn drive 41
Item
Symbol Description
1
2
3
4
5
6
7
•
Insert the end of the tube package through the strain relief of the tube package and lock by turning to
the right.
•
Insert the plug on the welding current lead into the welding current connection socket "+" and lock.
•
Connect crown nut of the shielding gas line to the G¼" connecting nipple.
•
Screw the eyelet of the earth lead on to the connecting nipple of the earth lead.
•
Insert cable plug on the control lead into the 7-pole connection socket and secure with crown nut (the
plug can only be inserted into the connection socket in one position).
A pilot static tube for a gas flow of 0-16 l/min is fitted on each wire feed unit as
standard. For applications where a higher gas flow rate is required (e.g. for aluminium),
a pilot static tube of 0-25 l/min (see accessories) should be installed.
099-005172-EW501
21.09.2011
0
Power source
Intermediate tube package
7-pole connection socket
Wire feed unit control lead
Connecting nipple G¼, shielding gas connection
Earth cable connecting (PE)
Connection of green-yellow earth cable from the intermediate tube package
Connector plug, welding current "+"
Welding current connection on wire feed unit
Intermediate tube package strain relief
Design and function

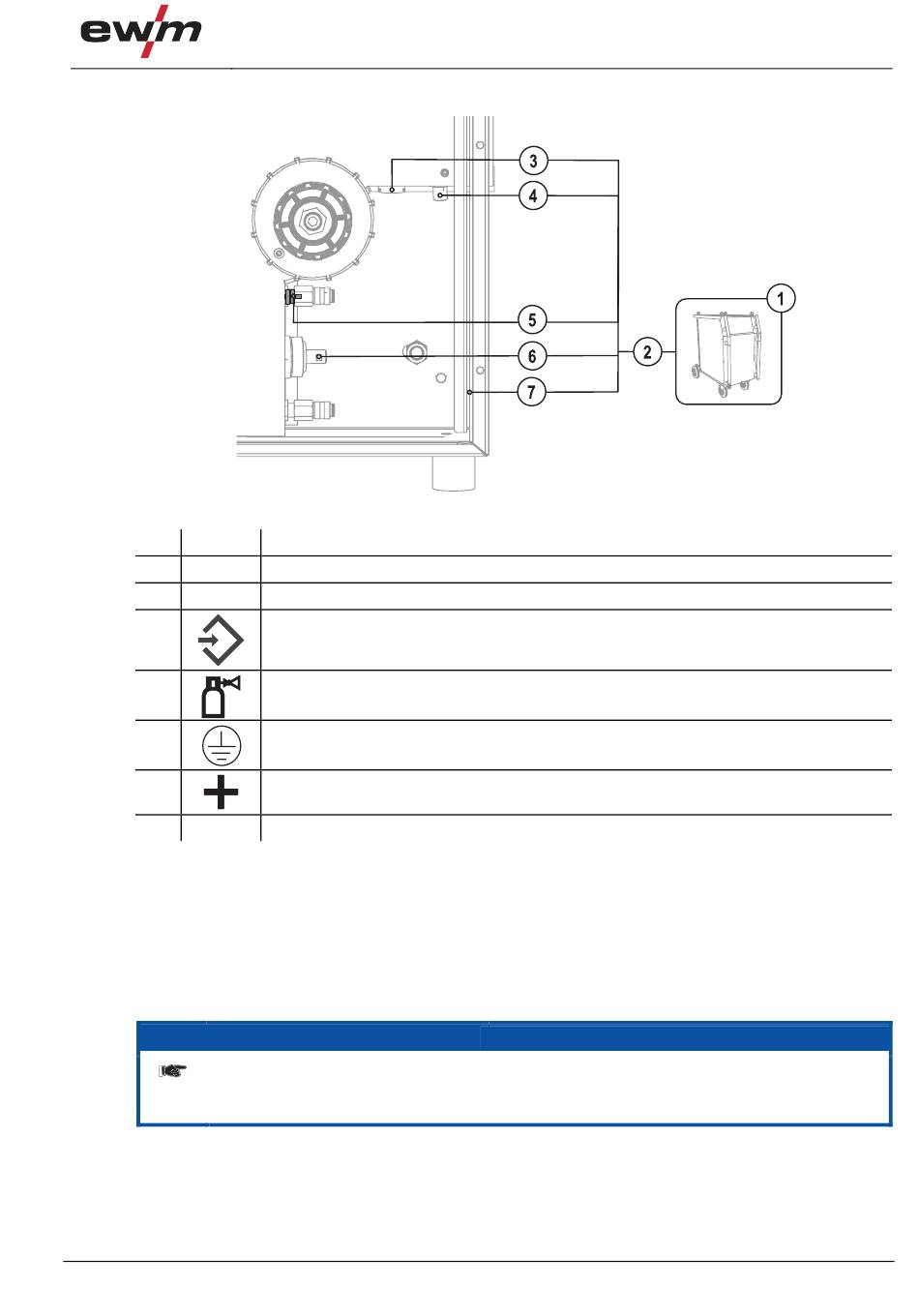

Figure 5-3
