4.3.1.1

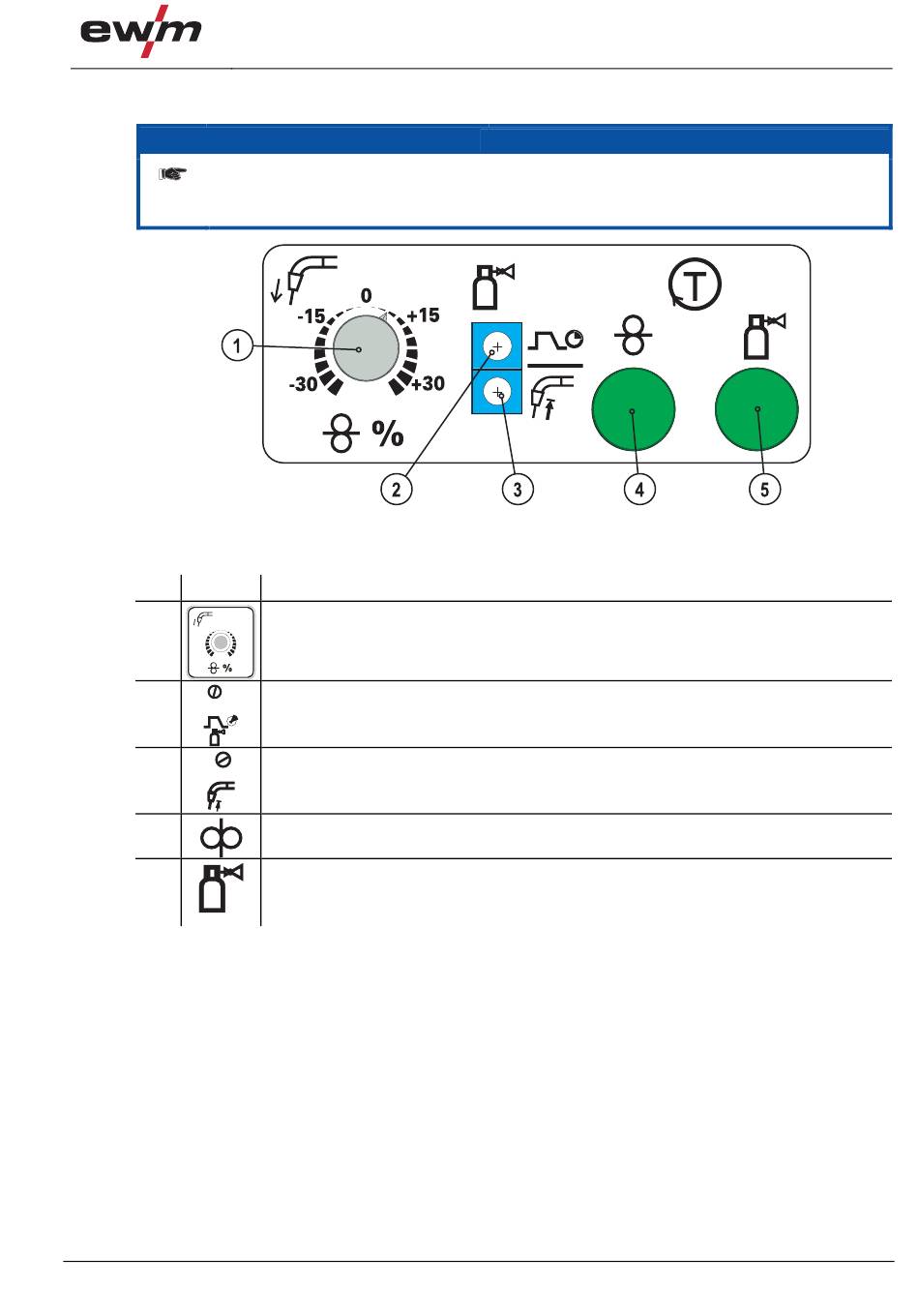

Internal operating elements

The maximum possible machine configuration is given in the text description.
If necessary, the optional connection may need to be retrofitted (see "Accessories"
chapter).
All details in percent relate to the values stored in the characteristics.
Item Symbol Description
1
0
-15 +15
-30 +30
2
3
4
5
099-005172-EW501
21.09.2011
Machine description – quick overview
0
Rotary dial, Wire creep (optional)
+/- 30%
"Gas post-flow time" trimmer
Setting range 0.2-10 s
Trimmer, Burn-back
+/- 50%
Key Button, Wire inching
Currentless wire inching
Key button, Gas test
Currentless gas test
Machine control – Operating elements
NOTE
Figure 4-7
