Operating Guide | VLT® Refrigeration Drive FC 103
5.11.3 Control Terminal Types

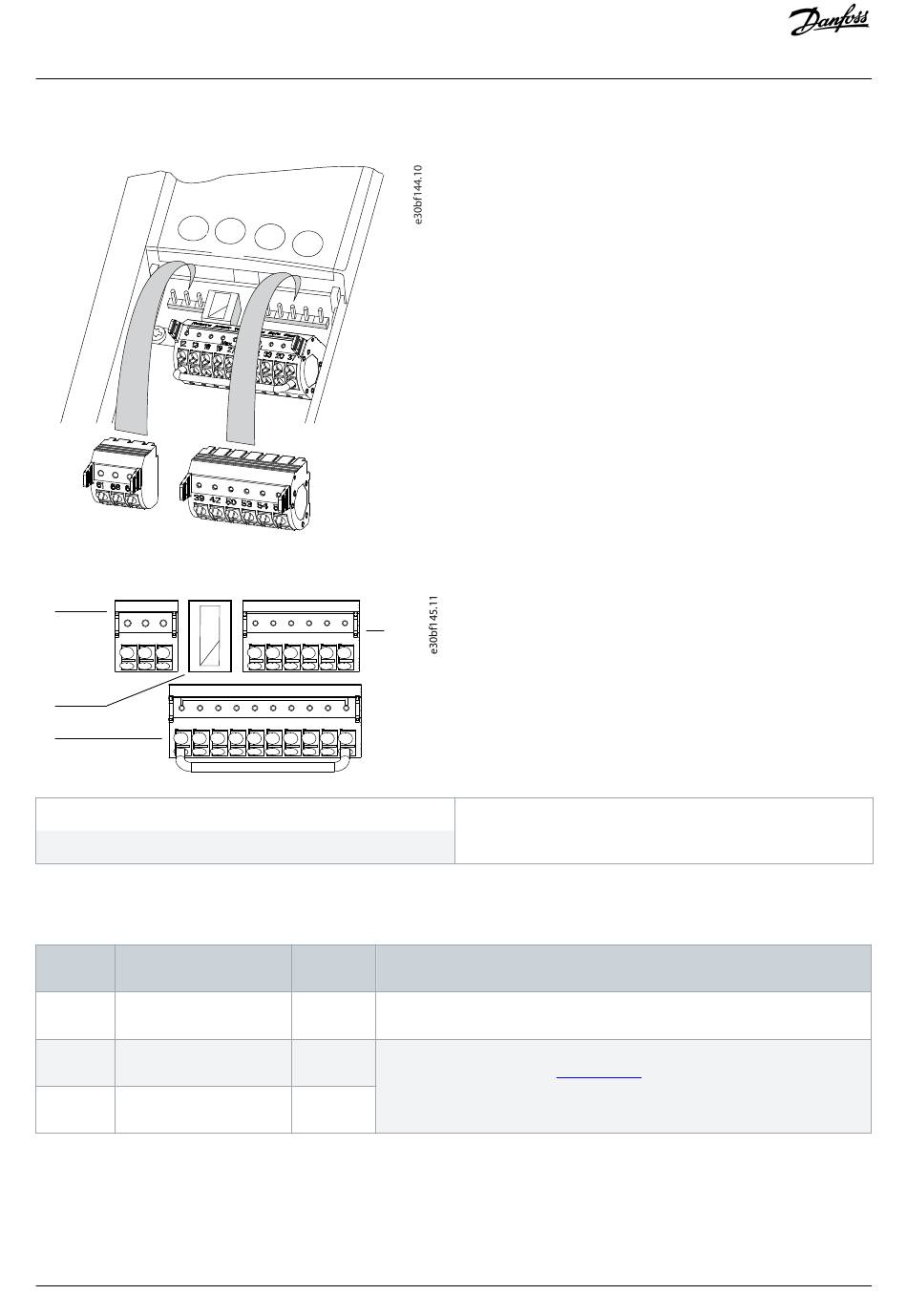

Illustration 32:
Control Terminal Locations
1
61
68
69
2
12 13 18 19 27 29 32 33 20 37
3
1 Serial communication terminals
3 Analog input/output terminals
Illustration 33:
Terminal Numbers Located on the Connectors
Table 10: Serial Communication Terminals
Terminal
Parameter
61
–
68
Parameter group 8-3* FC
Port Settings
69
Parameter group 8-3* FC
Port Settings
Danfoss A/S © 2020.01
4
39
42 50 53 54 55
Default
Description
Setting
–
Integrated RC-filter for cable shield. ONLY for connecting the shield if EMC
problems exist.
–
RS485 interface. A switch (BUS TER.) is provided on the control card for bus
termination resistance. See
–
2 Digital input/output terminals
illustration
38.
AQ275652766279en-000101 / 130R0707| 57
Electrical Installation
