Electrical Installation

4.8 Control Wiring

•
Isolate control wiring from high power components
in the adjustable frequency drive.
•
When the adjustable frequency drive is connected
to a thermistor, ensure that the thermistor control
wiring is shielded and reinforced/double insulated.
A 24 V DC supply voltage is recommended.

4.8.1 Control Terminal Types

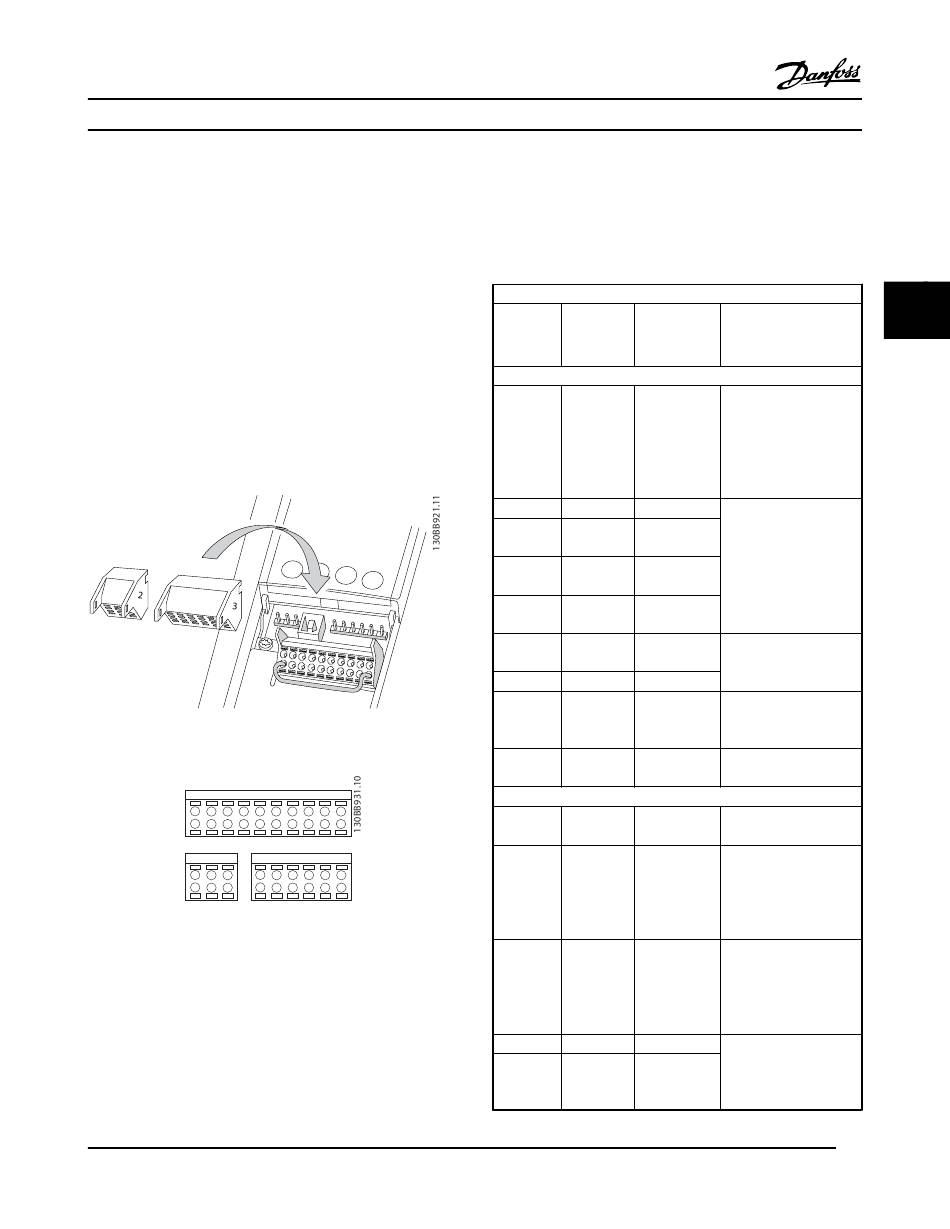

Figure 4.11 shows the removable adjustable frequency drive
connectors. Terminal functions and default settings are
summarized in Table 4.3.
Figure 4.11 Control Terminal Locations
1
12 13 18 19 27 29 32 33 20 37
2 3
61 68 69 39 42 50 53 54 55
Figure 4.12 Terminal Numbers
•
Connector 1 provides four programmable digital
inputs terminals, two additional digital terminals
programmable as either input or output, a 24 V DC
terminal supply voltage, and a common for optional
customer supplied 24 V DC voltage.
•
Connector 2 terminals (+)68 and (-)69 are for an
RS-485 serial communications connection
®
VLT HVAC Drive Instruction Manual
Terminal
4
1
MG11AJ22 - Rev. 2013-09-13
•
Connector 3 provides two analog inputs, one
analog output, 10 V DC supply voltage, and
commons for the inputs and output
•
Connector 4 is a USB port available for use with the
MCT 10 Set-up Software
Terminal description
Default
Parameter Setting
Digital Inputs/Outputs
12, 13 - +24 V DC
18 5-10 [8] Start
19 5-11 [0] No
operation
32 5-14 [0] No
operation
33 5-15 [0] No
operation
27 5-12 [2] Coast
inverse
29 5-13 [14] JOG
20 -
37 - Safe Torque
Off (STO)
Analog Inputs/Outputs
39 -
42 6-50 Speed 0 -
High Limit
50 - +10 V DC
53 6-1 Reference
54 6-2 Feedback
4
Description
24 V DC supply voltage.
Maximum output
current is 200 mA total
for all 24 V loads. Usable
for digital inputs and
external transducers.
Digital inputs.
Selectable for digital
input and output.
Default setting is input.
Common for digital
inputs and 0 V potential
for 24 V supply.
Safe input (optional).
Used for STO.
Common for analog
output.
Programmable analog
output. The analog
signal is 0–20 mA or 4–
20 mA at a maximum of
500 Ω.
10 V DC analog supply
voltage. 15 mA
maximum commonly
used for potentiometer
or thermistor.
Analog input. Selectable
for voltage or current.
Switches A53 and A54
select mA or V.
