7.1.14 Wiring Configuration for a Compressor Pack

P
0
Illustration 45: P Pressure Transmitter
0
AC Drive
12 18 27
Supply

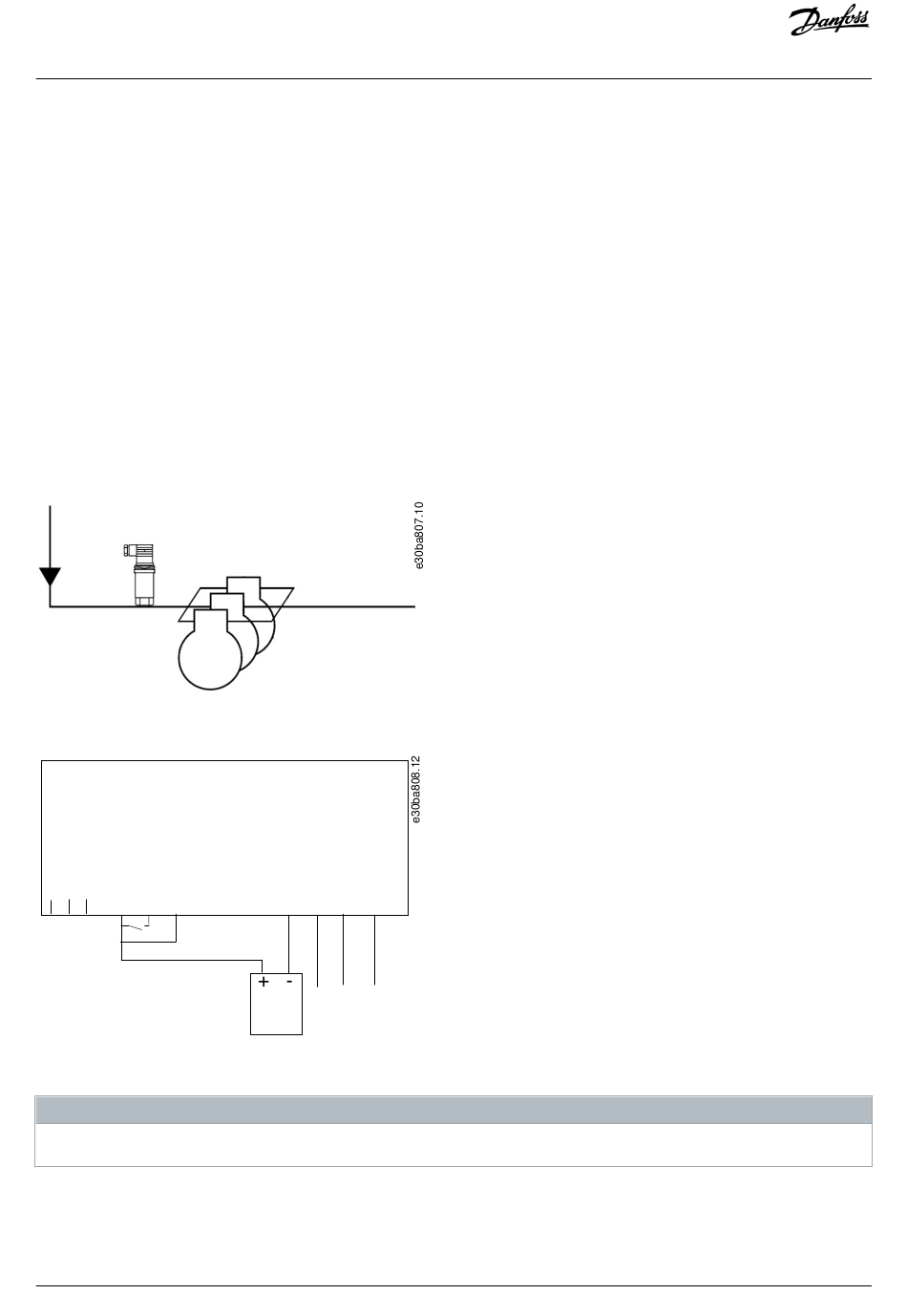

Illustration 46: How to Connect the FC 103 and AKS33 for Closed-Loop Applications
To find out which parameters are relevant, run the SmartStart.
