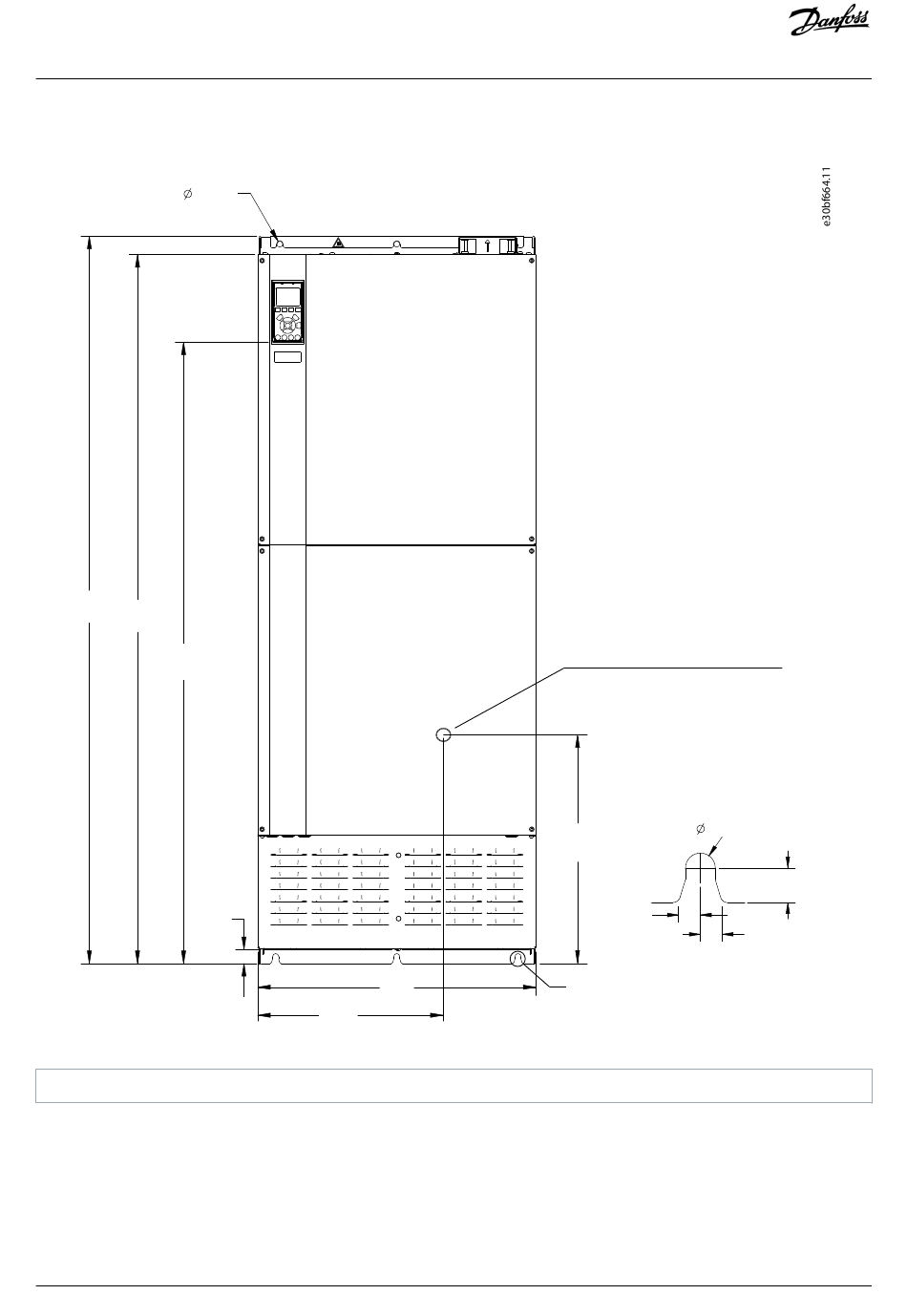

9.8.4 E4h Exterior Dimensions
3X
13 (0.5)
1578
1537
(62.1)
(60.5)
1348
1
(53.1)
A
13 (0.5)
447
15 (0.6)
(17.6)
30
10 (0.4)
(1.2)
10 (0.4)
604
A
(23.8)
337
(13.3)
1 Disconnect option only
Illustration 64:
Front View of E4h
152 | Danfoss A/S © 2020.01
AQ275652766279en-000101 / 130R0707
