Positioning the doors
64

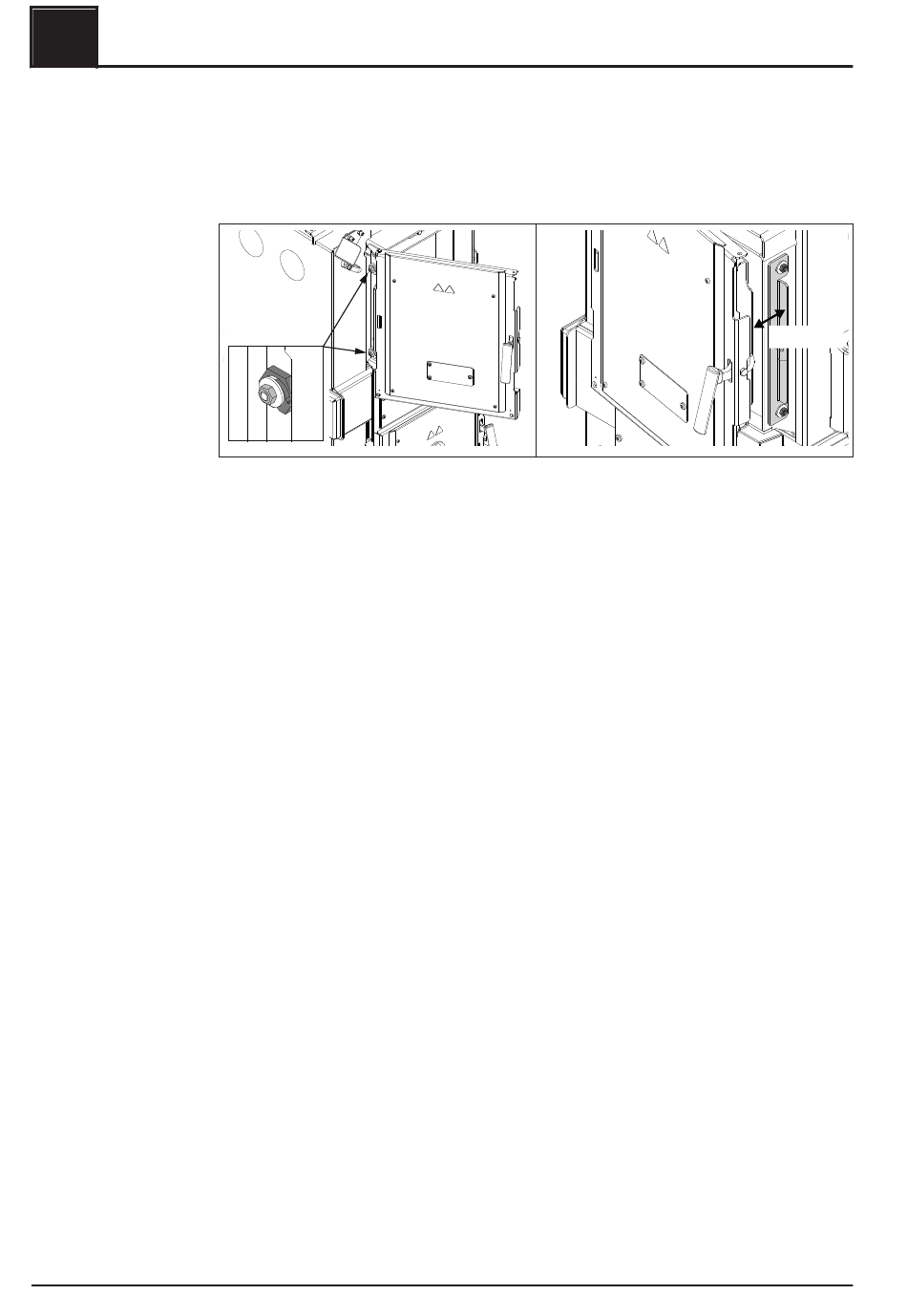

The example below shows how to position the fuel loading door. The procedure is the
same for positioning the combustion chamber door!
❒ Loosen the lock nuts on the locking cams at the top and bottom
❒ Close the door
➥ With a gap of approx. 2 to 3 cm there should be a noticeable resistance
❒ If the resistance is too low or too high, move the locking cams backwards or
forwards using the key provided (SW 32 mm)
➥ The movement of the locking cams causes the hinged plate to move, allowing
the contact pressure to be adjusted
➥ Caution: The two locking cams (top and bottom) must be adjusted equally!
❒ Close the door
❒ If the door will not close, move the locking cams forward slightly
➥ Caution: The two locking cams (top and bottom) must be adjusted equally!
❒ Tighten the lock nuts (M8)
