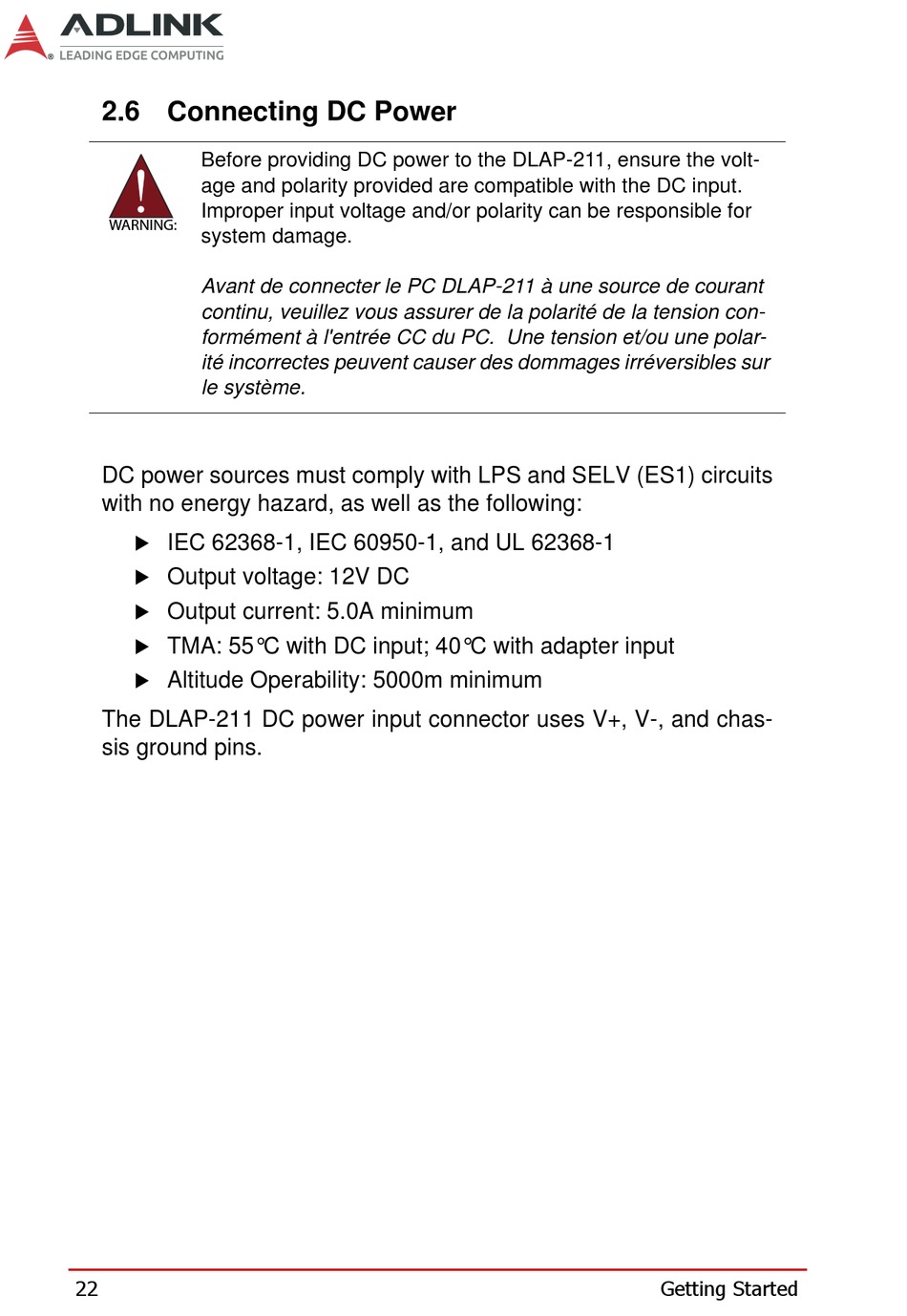

2.6 Connecting DC Power

Before providing DC power to the DLAP-211, ensure the volt-
age and polarity provided are compatible with the DC input.
Improper input voltage and/or polarity can be responsible for
WARNING:
system damage.
Avant de connecter le PC DLAP-211 à une source de courant
continu, veuillez vous assurer de la polarité de la tension con-
formément à l'entrée CC du PC. Une tension et/ou une polar-
ité incorrectes peuvent causer des dommages irréversibles sur
le système.
DC power sources must comply with LPS and SELV (ES1) circuits
with no energy hazard, as well as the following:

IEC 62368-1, IEC 60950-1, and UL 62368-1

Output voltage: 12V DC

Output current: 5.0A minimum
 TMA: 55°C with DC input; 40°C with adapter input
 Altitude Operability: 5000m minimum
The DLAP-211 DC power input connector uses V+, V-, and chas-
sis ground pins.
