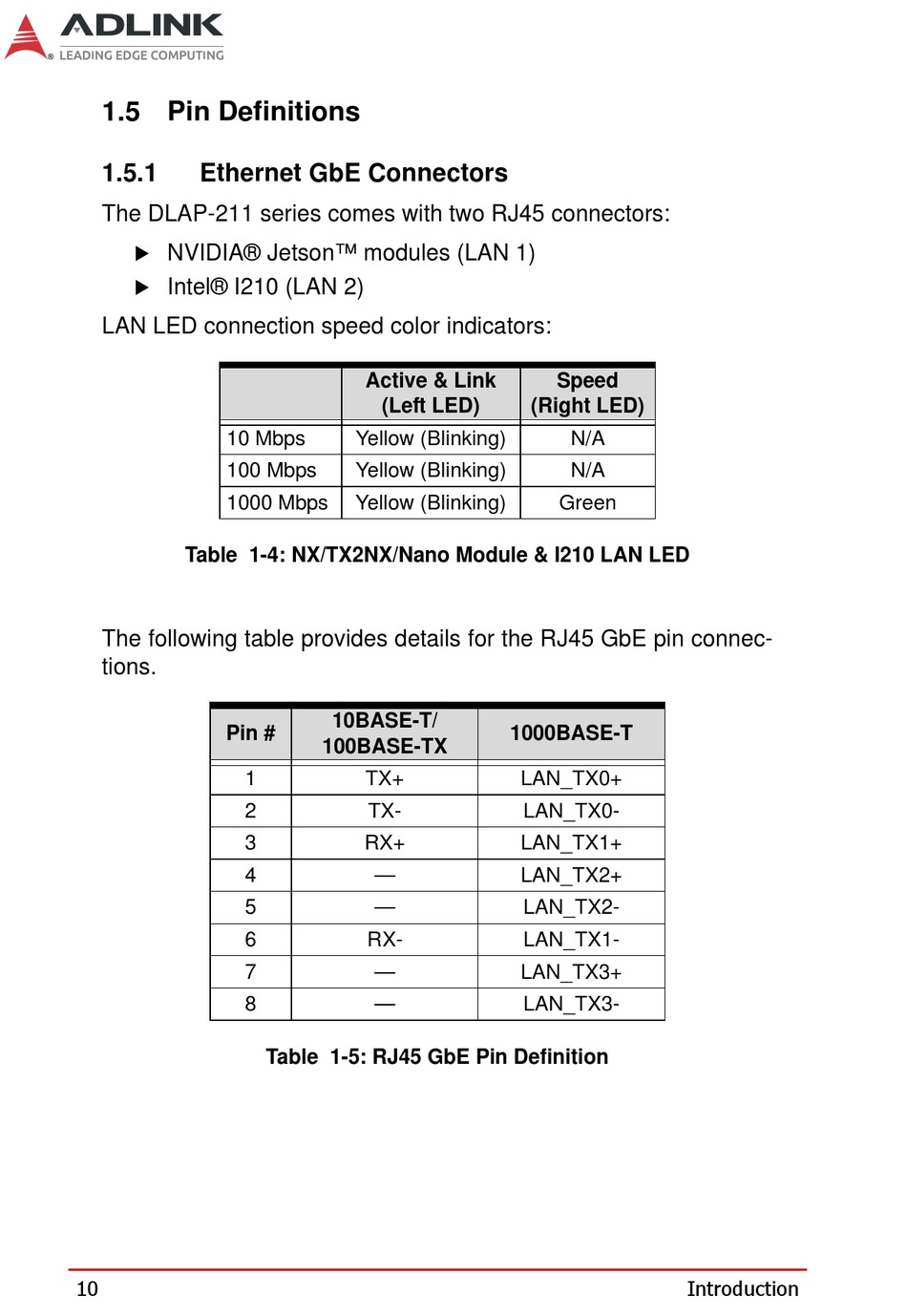

1.5 Pin Definitions

1.5.1

Ethernet GbE Connectors

The DLAP-211 series comes with two RJ45 connectors:

NVIDIA® Jetson™ modules (LAN 1)

Intel® I210 (LAN 2)
LAN LED connection speed color indicators:
10 Mbps
100 Mbps
1000 Mbps
Table 1-4: NX/TX2NX/Nano Module & I210 LAN LED
The following table provides details for the RJ45 GbE pin connec-
tions.
Pin #
1
2
3
4
5
6
7
8
10
Active & Link
(Left LED)
Yellow (Blinking)
Yellow (Blinking)
Yellow (Blinking)
10BASE-T/
100BASE-TX
TX+
TX-
RX+
—
—
RX-
—
—

Table 1-5: RJ45 GbE Pin Definition

Speed
(Right LED)
N/A
N/A
Green
1000BASE-T
LAN_TX0+
LAN_TX0-
LAN_TX1+
LAN_TX2+
LAN_TX2-
LAN_TX1-
LAN_TX3+
LAN_TX3-
