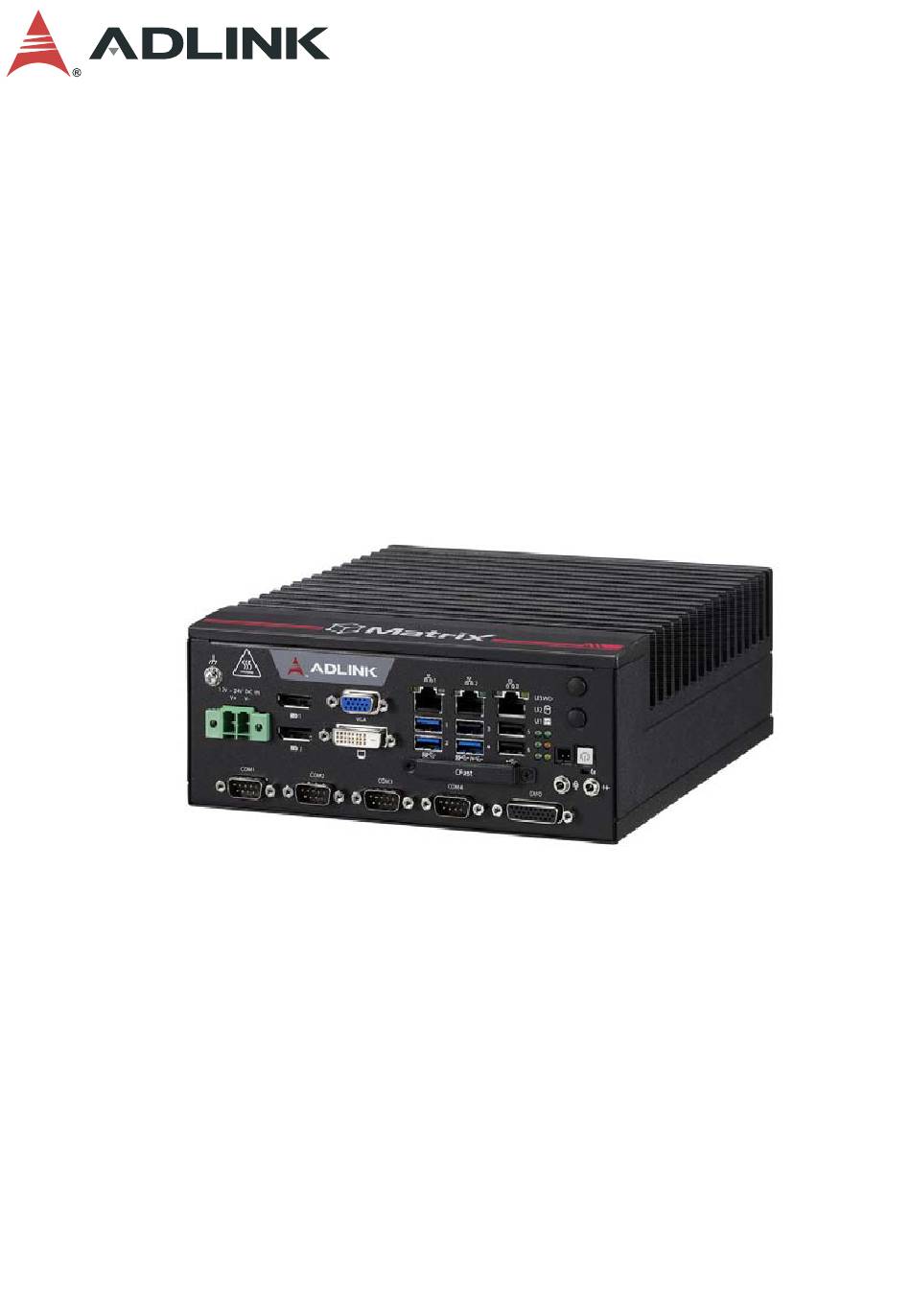

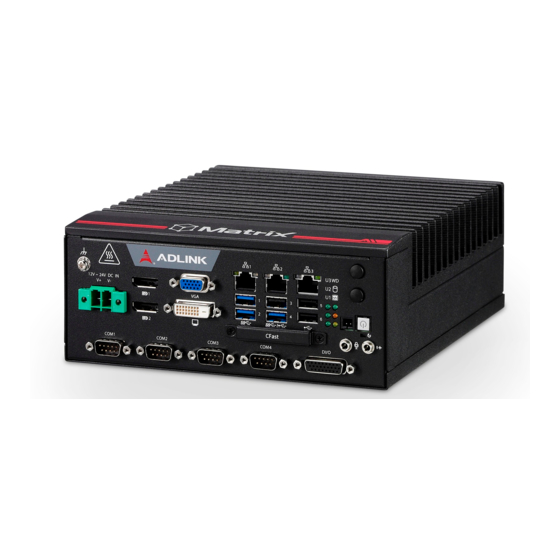

MVP-5100 Series
Value Line
9th Gen Intel® Core™ i7/i5/i3 &
8th Gen Celeron® Processor
Embedded Fanless Computer
MVP-510A/5101/5102/5103/5104
User's Manual
Manual Rev.:
Revision Date:
Part No:
Leading EDGE COMPUTING
1.0
February 20, 2020
50-1Z305-1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Value MVP-5100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADLINK Technology Value MVP-5100 Series

Summary of Contents for ADLINK Technology Value MVP-5100 Series

  • Page 1 MVP-5100 Series Value Line 9th Gen Intel® Core™ i7/i5/i3 & 8th Gen Celeron® Processor Embedded Fanless Computer MVP-510A/5101/5102/5103/5104 User’s Manual Manual Rev.: February 20, 2020 Revision Date: 50-1Z305-1000 Part No: Leading EDGE COMPUTING...
  • Page 2 Leading EDGE COMPUTING Revision History Revision Release Date Description of Change(s) 2020-02-20 Initial release Revision History...

  • Page 3: Preface

    MVP-5100 Preface Copyright © 2020 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Leading EDGE COMPUTING California Proposition 65 Warning WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene, cadmium, Tris(1,3-dichloro-2-propyl) phosphate (TDCPP), 1,4- Dioxane, formaldehyde, lead, DEHP, styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP, DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause...

  • Page 5: Table Of Contents

    MVP-5100 Table of Contents Revision History..............ii Preface ..................iii List of Tables................. vii List of Figures ................ ix 1 Introduction ................ 1 Overview................1 Features................1 Packing List ................. 2 Optional Accessories ............2 2 Specifications ..............3 MVP-510A, MVP-5101 ............3 MVP-5102, MVP-5103, MVP-5104........
  • Page 6 Leading EDGE COMPUTING B Appendix: BIOS Setup............35 Main ................... 36 Advanced ................38 Chipset................55 Security ................66 Boot ................... 68 Save & Exit ................ 70 C Appendix: Watchdog Timer (WDT) Function Library ..............73 WDT with API/Windows ............. 73 WDT with DOS/Linux ............76 D Appendix: Digital Input/Output Function Library ..............79 Important Safety Instructions..........

  • Page 7: List Of Tables

    MVP-5100 List of Tables Table 2-1: Maximum Available Resolution Display Configurations8 Table 3-1: Front Panel I/O Legend ..........11 Table 3-2: DisplayPort Pin Definition ......... 13 Table 3-3: Applicable Cable Types..........13 Table 3-4: Digital Input/Output Connector Pin Definition ... 14 Table 3-5: DVI-D Connector Pin Definition ........
  • Page 8 Leading EDGE COMPUTING This page intentionally left blank. viii List of Tables...

  • Page 9: List Of Figures

    MVP-5100 List of Figures Figure 2-1: MVP-5100 Functional Block Diagram......7 Figure 2-2: MVP-5100 Top View (including wall-mount brackets) ..9 Figure 2-3: MVP-5100 Side View (including wall-mount brackets) .. 10 Figure 2-4: MVP-5100 Front View (including wall-mount brackets) . 10 Figure 3-1: Front Panel I/O ..............
  • Page 10 Leading EDGE COMPUTING This page intentionally left blank. List of Figures...

  • Page 11: Introduction

    MVP-5100 Introduction 1.1 Overview ADLINK’s MVP-5100 Series of value line fanless embedded com- ® ® puting platforms, incorporating Intel Core™ & Celeron proces- sors, 2 internal SATA trays, 1 M.2 2280 drive, 1 Mini PCIe slot and single-side access for I/O ports, optimizing easy maintenance in industrial automation environments.

  • Page 12: Packing List

    Leading EDGE COMPUTING 1.3 Packing List Before unpacking, check the shipping carton for any damage. If the shipping carton and/or contents are damaged, inform your dealer immediately. Retain the shipping carton and packing mate- rials for inspection. Obtain authorization from your dealer before returning any product to ADLINK.

  • Page 13: Specifications

    MVP-5100 Specifications 2.1 MVP-510A, MVP-5101 MVP-510A MVP-5101 System Core Intel® Core™ i7-9700E Intel® Core™ i7-9700TE Processor (8-cores, 65W, 2.6/4.4 GHz) (8-cores, 35W, 1.8/3.8 GHz) Chipset H310 (C246 optional) Memory 4GB DDR4 2400MHz, dual SODIMMs, up to 32GB I/O Interface 2x DP++, DVI-D, VGA (3 displays) Display (2 independent displays w/ H310, 3 independent displays w/ C246) 3x Intel GbE, 2x i211AT + i219...
  • Page 14 Leading EDGE COMPUTING MVP-510A MVP-5101 Power Supply DC Input 12-24VDC (± 10% tolerance) AC Input Optional: 160W/220W AC/DC adapter Environmental Standard Operating 0°C to 50°C, w/ airflow 0.6 m/s Temperature Extended -20°C to 50°C, w/ airflow 0.6 m/s -20°C to 60°C, w/ airflow 0.6 m/s Operating (w/ industrial storage) (w/ industrial storage)

  • Page 15: Mvp-5102, Mvp-5103, Mvp-5104

    MVP-5100 2.2 MVP-5102, MVP-5103, MVP-5104 MVP-5102 MVP-5103 MVP-5104 System Core Intel® Core™ Intel® Core™ Intel® Celeron® Processor i5-9500TE (6-cores, i3-9100TE (4-cores, G4900T (2-cores, 35W, 2.2/3.6 GHz) 35W, 2.2/3.2 GHz) 35W, 2.9 GHz) Chipset H310 (C246 optional) Memory 4GB DDR4 2400MHz, dual SODIMMs, up to 32GB I/O Interface 2x DP++, DVI-D, VGA (3 displays) Display...
  • Page 16 Leading EDGE COMPUTING MVP-5102 MVP-5103 MVP-5104 Power Supply DC Input 12-24VDC (± 10% tolerance) AC Input Optional: 160W/220W AC/DC adapter Environmental Standard Operating 0°C to 50°C, w/ airflow 0.6 m/s Temperature Extended -20°C to 60°C, w/ airflow 0.6 m/s Operating (w/ industrial storage) Temperature Storage...

  • Page 17: Mvp-5100 Functional Block Diagram

    MVP-5100 2.3 MVP-5100 Functional Block Diagram DDI1 DDR4 SO-DIMM DP CN DDI2 DDR4 SO-DIMM DP CN Intel® DDI3 Processor DP to DVI LS DVI CN PTN3360 PEG (x16) eDP to VGA PTN3355 Intel PHY PCIe PCIe x4 (C 246 support) RJ45 CN I219 Board...

  • Page 18: Display Options

    Leading EDGE COMPUTING 2.4 Display Options With computing and graphic performance enhancement from its 8th & 9th Generation Intel processors, the MVP-5100 controller can support two (H310) or three (C246) independent displays, with configurations as follows. Port Resolution DisplayPort1 4096x2304@60Hz Display Option 1 DisplayPort2 4096x2304@60Hz...

  • Page 19: Mechanical Dimensions

    MVP-5100 2.5 Mechanical Dimensions R2.6 units: mm Figure 2-2: MVP-5100 Top View (including wall-mount brackets) Specifications...

  • Page 20: Figure 2-3: Mvp-5100 Side View (Including Wall-Mount Brackets)

    Leading EDGE COMPUTING units: mm Figure 2-3: MVP-5100 Side View (including wall-mount brackets) units: mm Figure 2-4: MVP-5100 Front View (including wall-mount brackets) Specifications...

  • Page 21: System Layout

    MVP-5100 System Layout 3.1 Front Panel The MVP-5100 Series provides the following front panel access features. G H I J K Figure 3-1: Front Panel I/O DC Power Input Extend Power Button DisplayPort x2 J Power DVI-D K Reset L Audio (Mic, Phones/Speaker) USB 2.0 Type-A x3 (1, 2, 4) M Digital Input/Output Gigabit Ethernet x 3...
  • Page 22 Leading EDGE COMPUTING 3.1.1 Power Button The power button is a non-latched push button with a blue LED indicator. System is turned on when the button is depressed, and the power LED lights. If the system hangs, depress the button for 5 seconds to turn off the system completely.

  • Page 23: Table 3-2: Displayport Pin Definition

    MVP-5100 3.1.4 DisplayPort Connectors Two DisplayPort connectors on the front panel can connect to VGA, DVI, HDMI and DisplayPort monitors via DisplayPort to VGA adapter cable, DisplayPort to DVI adapter cable, or DisplayPort to HDMI adapter cable and DisplayPort cable. Figure 3-2: DisplayPort Connector Pin Definition Signal Signal...

  • Page 24: Table 3-4: Digital Input/Output Connector Pin Definition

    Leading EDGE COMPUTING 3.1.5 Digital I/O Connector The MVP-5100 provides 8 channels of non-isolation digital input and 8 channels of non-isolation digital output circuits, with spec and circuits as follows. 8-channel Digital Input VIH: 2 to 5.25V VIL: 0 to 0.8V 8-channel Digital Output Output type: Open drain N-channel MOSFET driver with internal pull high of 200Ω...

  • Page 25: Figure 3-4: Digital Input Circuit

    MVP-5100 Figure 3-4: Digital Input Circuit Figure 3-5: Digital Output Circuit System Layout...

  • Page 26: Table 3-5: Dvi-D Connector Pin Definition

    Leading EDGE COMPUTING 3.1.6 DVI-D Connector The MVP-5100 provides one DVI-D connector for connection to an external monitor. Figure 3-6: DVI-D Connector Pin Definition Signal Signal Signal DVIdata 2- DVIdata 1+ DVIdata 2+ DVI clock + DVIDC clock DVI clock - DVIDC data Hot plug detect DVIdata 0-...

  • Page 27: Table 3-6: Vga Connector Pin Definition

    MVP-5100 3.1.7 VGA Connector Figure 3-7: VGA Connector Pin Definition Signal G_VGA_R G_VGA_G G_VGA_B CRT_DDAT_CN G_VGA_HSYNC G_VGA_VSYNC CRT_DCLK_CN Table 3-6: VGA Connector Pin Definition System Layout...
  • Page 28 Leading EDGE COMPUTING 3.1.8 USB 2.0 Ports The MVP-5100 provides three USB 2.0 ports supporting Type A USB connection on the front panel. All USB ports are compatible with high-speed, full-speed and low-speed USB devices. The MVP-5100 supports multiple boot devices, including USB flash drive, USB external hard drive, USB floppy, USB CD-ROM and others.

  • Page 29: Table 3-7: Ethernet Port Pin Definition

    MVP-5100 Speed LED Active/Link Green/Orange Yellow Figure 3-8: Ethernet Port and LEDs 10BASE-T/ Pin # 1000BASE-T 100BASE-TX LAN_TX0+ LAN_TX0- LAN_TX1+ — LAN_TX2+ — LAN_TX2- LAN_TX1- — LAN_TX3+ — LAN_TX3- Table 3-7: Ethernet Port Pin Definition LED Color Status Description Ethernet port is disconnected. Yellow Ethernet port is connected with no activity.

  • Page 30: Table 3-10: Dc Power Input Pin Definition

    Leading EDGE COMPUTING 3.1.11 DC Power Input Figure 3-9: DC Power Input Signal V+ (DC_IN) V- (DGND) Table 3-10: DC Power Input Pin Definition Refer to Section 4.1: Attach DC Power Connector on page 29 to install the DC Power Connector to the DC Power Input. Please use an approved power source as certified by IEC or UL.

  • Page 31: Table 3-11: D-Sub 9-Pin Signal Function Of Com Ports

    MVP-5100 3.1.12 COM Port Connectors The MVP-5100 provides four COM ports through D-sub 9-pin con- nectors. The COM1 & COM2 ports support RS-232/422/485 modes by BIOS setting, while COM3 and COM4 support only RS- 232. Figure 3-10: COM Port Pin Definition Signal Name RS-232 RS-422...

  • Page 32: Figure 3-11: Cfast Host Slot

    Leading EDGE COMPUTING 3.1.13 CFast Host Slot The MVP-5100 is equipped with a Type II Push-Push CFast host slot on the front panel, by SATA interface. Data transfer rates up to 3.0Gb/s (300MB/s) are supported. The host SATA controller provides a legacy operating mode using I/O space, and an AHCI operating mode using memory space.

  • Page 33: Internal I/O Connectors

    MVP-5100 3.2 Internal I/O Connectors 3.2.1 Mainboard Connector Locations Figure 3-12: Mainboard Connectors System Layout...

  • Page 34: Table 3-12: Mainboard Connector Legend

    Leading EDGE COMPUTING Smart Fan SATA USB 2.0 dongle SATA DDR4 SODIMM PCIe x16 slot for PEG and SATA Wafer for GPS external power SIM for M.2 SIM for Mini PCIe Mini PCIe Wafer for I2C sensor Wafer for Speaker Wafer for COM x2 (optional), DI x8, DO x8, Mic in and Line Out Wafer for COM x4...

  • Page 35: Table 3-13: Gps Module Power Header Pin Definition

    MVP-5100 3.2.2 GPS Module Power Headers Power supply via cable for Mini PCIe GPS module cards (5V). Figure 3-13: GPS Module Power Header Pin Definition Signal +5V_GPS Table 3-13: GPS Module Power Header Pin Definition 3.2.3 USB 2.0 Connector One USB 2.0 Type-A connector is provided on the mainboard for internal USB dongle, with another on the backplane board.

  • Page 36: Table 3-14: 12V Fan Connector Pin Definition

    Leading EDGE COMPUTING 3.2.6 12V Fan Connector DC 12V fan module power supply is provided through the connec- tor, to which the optional fan module connects when installed in the chassis. Figure 3-14: 12V Fan Connector Pin Definition Signal FAN_GND P_+12V_FAN SIO_FAN_IN SIO_FAN_OUT...

  • Page 37: Table 3-15: Pwr/Reset Header Pin Definition

    MVP-5100 3.2.8 Extended PWR/RESET Header An internal header is provided for the Power and Reset buttons, with pin definition as shown. Figure 3-16: PWR/RESET Header Pin Definition Signal PWR_BTN-L RESET_BTN-L Table 3-15: PWR/RESET Header Pin Definition System Layout...

  • Page 38: Table 3-16: 12V Power Pin Definition

    Leading EDGE COMPUTING 3.2.9 USIM Slot The USIM slot connects to the Mini PCIe and M.2 slots. 3.2.10 12V Power for Additional AFM MXM Carrier Board One 12V power pin header provides additional AFM MXM carrier board power for an MXM card, if used. Figure 3-17: 12V Power Pin Definition Signal Signal...

  • Page 39: Getting Started

    MVP-5100 Getting Started 4.1 Attach DC Power Connector Locate the DC power connector shown below that is included in the Accessory Box. Insert it into the DC Power Input “A” shown in Figure 3-1 on page 11 and secure it to the chassis using the cap- tive screws.

  • Page 40: Mounting The Mvp-5100

    Leading EDGE COMPUTING 4.2 Mounting the MVP-5100 4.2.1 Install the Wall-mount Brackets Use the 6 M4 6mm screws included in the Accessory Box to attach the 2 included wall-mount brackets to the chassis as indi- cated by the red circles below. Utilisez les 6 vis M4 6 mm incluses dans la boîte d'accessoires pour fixer les 2 supports de montage mural inclus au châssis, comme indiqué...
  • Page 41 MVP-5100 Mounting the Device / Montage de l'Appareil Mount the device to a wall using the 4 keyhole openings indicated or the 6 mounting holes circled in red, according to the spacing dimensions of the holes in the bracket as shown in Figure 2-2 MVP-5100 Top View (including wall-mount brackets).

  • Page 42: Driver Installation

    Leading EDGE COMPUTING 4.3 Driver Installation Download the Windows 10 drivers for your system from the prod- uct page at https://www.adlinktech.com/Products/Industrial_PCs_ Fanless_Embedded_PCs/ExpandableFanlessEmbedded Computers/MVP-5100_Series and install. The following drivers must be installed: Chipset Graphics Audio Ethernet Intel ME DI/O Getting Started...

  • Page 43: A Appendix: Power

    MVP-5100 Appendix A Power Information in this Appendix is for power budget planning and design purposes only. Actual power consumption may differ based on final application. NOTE: NOTE: A.1 Power Consumption Reference Power consumption as follows is based on lab data in which 24V DC is applied and current is measured by the DC power supply.
  • Page 44 Leading EDGE COMPUTING Sufficient power supply for the entire system is required to meet these specifications. At least 100W at 24V input is recommended. NOTE: NOTE: Heat generated by add-on PCI/PCIe adapters affects thermal stability. Additional heat dissipa- tion is required when the system operates at high temperatures or in harsh environments with add-on adapters.

  • Page 45: B Appendix: Bios Setup

    MVP-5100 Appendix B BIOS Setup The Basic Input/Output System (BIOS) is a program that provides a basic level of communication between the processor and peripherals. In addition, the BIOS also contains codes for various advanced features applied to the MVP-5100. The BIOS setup program includes menus for configuring settings and enabling features of the MVP-5100.

  • Page 46: Main

    Leading EDGE COMPUTING B.1 Main Contains basic system information for the MVP-5100. Changing BIOS settings may lead to incorrect controller behav- ior and possible inability to boot. In such a case, Section 3.2.7:Clear CMOS Jumper provides instruction on WARNING: clearing the CMOS and restoring default settings BIOS Information Shows current system BIOS Vendor, BIOS Version, Build Date, MRC Version, GOP Version and ME FW Version.
  • Page 47 MVP-5100 System Time/System Date Allows adjustment of system time and date, as follows. 1. Highlight System Time or System Date using the up and down <Arrow> keys. 2. Enter new values using the keyboard and select <Enter>. 3. Select < Tab > to move between fields. The date must be entered in MM/DD/YY format, and the time in HH:MM:SS.

  • Page 48: Advanced

    Leading EDGE COMPUTING B.2 Advanced Setting incorrect or conflicting values in Advanced BIOS Setup may cause system malfunction. CAUTION: Accesses advanced options of the MVP-5100. BIOS Setup...
  • Page 49 MVP-5100 B.2.1 CPU Configuration Hyper-Threading Enabled for Windows XP and Linux (optimized for Hyper-Thread- ing Technology) and Disabled for other OS (not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled. Active Processor Cores Number of cores to enable in each processor package. Intel (VMX) Virtualization Technology When enabled, a VMM can utilize the additional hardware capabil- ities provided by Vanderpool Technology.
  • Page 50 Leading EDGE COMPUTING ® Intel Speed Shift Technology) ® Enables/disables Intel Speed Shift Technology support. Enabling will expose the CPPC v2 interface to allow hardware controlled P- states. TCC Activation Offset Offset from factory set TCC activation temperature at which the Thermal Control Circuit must be activated.
  • Page 51 MVP-5100 RTC Wake system from S5 Enables/disables System Wake on Alarm event. FixedTime sets system to wake on the hr::min::sec specified, DynamicTime sets system to wake ay the current time + Increase minute(s). Ring Wake Enables/disables RI ping for Wake On Ring function (PCH PME# signal).
  • Page 52 Leading EDGE COMPUTING B.2.3 Serial Console Configuration COM1 Console Redirection Enables/disables SIO COM1 Console Redirection. Console Redirection Settings Specify how the host computer and the remote computer (in use) exchange data. Both computers should have the same or compat- ible settings. COM SOL (Pci Bus0,Dev22.Fun3) Console Redirection Enables/disables PCI SOL Console Redirection.
  • Page 53 MVP-5100 Console Redirection Settings Specify how the host computer and the remote computer (in use) exchange data. Both computers should have the same or compat- ible settings. B.2.4 USB Configuration USB Mass Storage Driver Support Enables/disables USB mass storage driver support. USB transfer time-out The time-out value for Control, Bulk, and Interrupt transfers.
  • Page 54 Leading EDGE COMPUTING Device power-up delay Maximum time the device will take before it properly reports itself to the Host Controller, where Auto uses default value for Root port 100ms, and for Hub port the delay is taken from Hub descriptor. B.2.5 TPM 2.0 Configuration Security Device Support...
  • Page 55 MVP-5100 SHA256 PCR Bank Enables/disables SHA256 PCR Bank. Pending Operation Schedules Operation for the Security Device. Computer will reboot during restart in order to change State of Security Device. Platform Hierarchy Enables/disables Platform Hierarchy. Storage Hierarchy Enables/disables Storage Hierarchy. Endorsement Hierarchy Enables/disables Endorsement Hierarchy.
  • Page 56 Leading EDGE COMPUTING B.2.6 AMT Configuration AMT BIOS Features When disabled, AMT BIOS features are no longer supported and user is no longer able to access MEBx Setup. MEBx Hotkey Pressed Enables/disables automatic MEBx hotkey press. BIOS Setup...
  • Page 57 MVP-5100 B.2.7 Onboard Devices Configuration COM1 Control Selects COM1 mode from RS232, RS422 or RS485. COM2 Control Selects COM2 mode from RS232, RS422 or RS485. LAN #1 (Intel I219) Enables/disables I219 LAN1. LAN #2 (Intel I211AT) Enables/disables I211 LAN2. LAN #3 (Intel I211AT) Enables/disables I211 LAN3.
  • Page 58 Leading EDGE COMPUTING B.2.8 NCT6106D HW Monitor Displays CPU/Board Temperatures, System fan speeds, and vari- ous Voltages. BIOS Setup...
  • Page 59 MVP-5100 System Fan Control Mode Configures fan control mode from among Manual Mode, Auto Mode, and SMART FAN IV. Manual Mode Allows configuration of a set fan duty cycle. BIOS Setup...
  • Page 60 Leading EDGE COMPUTING Auto Mode Fan runs at automatic speed for optimal thermal solution. BIOS Setup...
  • Page 61 MVP-5100 SMART FAN IV Four temperatures and four fan duty cycles, with three avail- able fan speed presets, can be user-configured. BIOS Setup...
  • Page 62 Leading EDGE COMPUTING B.2.9 BIOS Watchdog Timer BIOS POST Watchdog Disable disables WatchDog Timer, Second Mode enables Watch- dog Timer in second mode, Minute Mode enables Watchdog Timer in minute mode. BIOS Setup...
  • Page 63 MVP-5100 B.2.10 NVME Configuration Displays NVMe device status. BIOS Setup...
  • Page 64 Leading EDGE COMPUTING B.2.11 Network Stack Configuration Network Stack Enables/disables UEFI Network Stack. BIOS Setup...

  • Page 65: Chipset

    MVP-5100 B.3 Chipset Setting incorrect or conflicting values in Chipset BIOS Setup may cause system malfunction WARNING: Above 4G Decoding Enables/disables 64bit-capable devices to be decoded in Above 4G Address Space (only when system supports 64-bit PCI Decod- ing). BIOS Setup...
  • Page 66 Leading EDGE COMPUTING B.3.1 System Agent (SA) Configuration System Agent (SA) Configuration Displays and configures VT-d capability and provides settings for Memory, Graphics, and DMI/OPI configuration. BIOS Setup...
  • Page 67 MVP-5100 B.3.1.1 Memory Configuration Memory Configuration Displays memory speed, size, maker, and configuration. BIOS Setup...
  • Page 68 Leading EDGE COMPUTING B.3.1.2 Graphics Configuration Internal Graphics Keeps IGFX enabled based on Setup options. GTT Size Selects GTT Size. Aperture Size Selects Aperture Size. DVMT Pre-Allocated Selects DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. BIOS Setup...
  • Page 69 MVP-5100 DVMT Total Gfx Mem Selects DVMT5.0 Total Graphic Memory size used by Internal Graphics Device. B.3.1.3 DMI/OPI Configuration DMI/OPI Configuration Displays DMI link speed and width. DMI Max Link Speed Sets DMI Speed from among Gen1/Gen2/Gen3. BIOS Setup...
  • Page 70 Leading EDGE COMPUTING B.3.2 PCH-IO Configuration PCH-IO Configuration Configures SATA, Security, and HD Audio. BIOS Setup...
  • Page 71 MVP-5100 B.3.2.1 SATA And RST Configuration SATA Mode Selection Determines how SATA controller(s) operate. SATA Controller Speed Sets maximum speed the SATA controller can support. CFast Card Enables/disables CFast Card. Hot Plug Designates the port as Hot Pluggable. BIOS Setup...
  • Page 72 Leading EDGE COMPUTING SATA HDD 1 Enables/disables SATA HDD 1. SATA HDD 2 Enables/disables SATA HDD 2. BIOS Setup...
  • Page 73 MVP-5100 B.3.2.2 Security Configuration BIOS Lock Enables/disables PCH BIOS Lock Enable. Required to be enabled to ensure SMM flash protection. BIOS Setup...
  • Page 74 Leading EDGE COMPUTING B.3.2.3 HD Audio Configuration Audio Output Selection Selects Audio Output. BIOS Setup...
  • Page 75 MVP-5100 B.3.2.4 M.2 Device Configuration M.2 Port Device Link Selection Configures M.2 port PCIe Link as X1 or X2. BIOS Setup...

  • Page 76: Security

    Leading EDGE COMPUTING B.4 Security If only the Administrator password is set, access is limited and the password requested on Setup. If User password is set, it acts as a power-on password and must be entered to boot or enter setup. Administrator Password Sets Administrator Password.
  • Page 77 MVP-5100 B.4.1 Secure Boot Menu Secure Boot Control Active if Secure Boot is Enabled, Platform Key (PK) is enrolled and the System is in User mode. Mode change requires platform reset. Secure Boot Mode Selects from Standard or Custom. In Custom, Secure Boot Policy variables can be configured by a physically present user without full authentication.

  • Page 78: Boot

    Leading EDGE COMPUTING B.5 Boot Setup Prompt Timeout Number of seconds before setup activation key is launched, with 65535(0xFFFF) setting indefinite waiting. Bootup Num-Lock State Sets keypad Number Lock status following boot. BIOS Setup...
  • Page 79 MVP-5100 Quiet Boot Option Description Disabled Directs BIOS to display POST messages Enabled Directs BIOS to display the OEM logo. Fast Boot Option Description Disabled Directs BIOS to perform all POST tests. Directs BIOS to skip certain POST tests to boot Enabled faster.

  • Page 80: Save & Exit

    Leading EDGE COMPUTING B.6 Save & Exit Save Changes and Exit Exits system setup after saving the changes. Discard Changes and Exit Exits system setup without saving any changes. Save Changes and Reset Resets the system setup after saving changes. Discard Changes and Reset Resets system setup without saving any changes.
  • Page 81 MVP-5100 Save Changes Saves Changes so far to any of the setup options. Discard Changes Discards Changes so far to any of the setup options. Restore Defaults Sets all BIOS options to default settings, designed for maximum system stability but less than maximum performance. Select Restore Defaults if the computer encounters system configuration problems.
  • Page 82 Leading EDGE COMPUTING This page intentionally left blank. BIOS Setup...

  • Page 83: C Appendix: Watchdog Timer (Wdt)

    MVP-5100 Appendix C Watchdog Timer (WDT) Function Library This appendix describes use of the watchdog timer (WDT) func- tion library for the MVP-5100 controller. The watchdog timer is a hardware mechanism provided to reset the system if the operating system or an application stalls. After starting, the watchdog timer in the application must be periodically reset before the timer expires.
  • Page 84 Leading EDGE COMPUTING SetWDT Sets the timeout value of the watchdog timer. There are two parameters for this function to indicate the timeout ticks and unit. ResetWDT or StopWDT should be called before the expi- ration of watchdog timer, or the system will reset. Syntax C/C++ BOOL SetWDT(BYTE tick, BYTE unit)
  • Page 85 MVP-5100 Parameters None Return codes TRUE if watchdog timer is successfully started. FALSE if watchdog timer is failed to start. ResetWDT Reset the watchdog timer. The invocation of ResetWDT allows restoration of the watchdog timer to the initial timeout value specified in SetWDT function.

  • Page 86: Wdt With Dos/Linux

    Leading EDGE COMPUTING C.2 WDT with DOS/Linux Under Linux, please program the WDT function using the LPC IO registers according to the sample program as follows. #include <dos.h> #include <stddef.h> #include <stdio.h> /* Config LPC IO NCT6102D to enter config mode */ EnterConfig(void) outp(0x4E, 0x87);...
  • Page 87 MVP-5100 printf("Init and config GPIO ports<<<<<<<<<<<<<<<<<<<<<<<<<\n"); printf("---------------------------------------------- ----\n"); EnterConfig(); /* config WDT registers */ w_reg(0x07,0x08); /* enable keyboard interrupt to reset WDT timeout value */ w_reg(0xF2,r_reg(0xF2)|0x40); /* set unit as second */ w_reg(0xF0,r_reg(0xF0)&~0x04); /* start the Watchdog */ w_reg(0x30,0x01); /* set timeout value as 30 seconds */ /* WDT start automatically while timeout value is set w_reg(0xF1,0x1E);...
  • Page 88 Leading EDGE COMPUTING printf("WDT is disable. Program is terminating."); ExitConfig(); return 0; Watchdog Timer (WDT) Function Library...

  • Page 89: D Appendix: Digital Input/Output

    MVP-5100 Appendix D Digital Input/Output Function Library DI/O provides input/output to support inter-device communica- tions. Simple programming guides allow easy transmission of digi- tal signals between the system and attached peripherals. DI/O with API/Windows Matrix DI/O API library files and a demo program (incl. source code) can be downloaded from http://www.adlinktech.com.
  • Page 90 Leading EDGE COMPUTING Parameter(s) Index Indexes the digital logic state of MVP-5100 digital input chan- nels 1 to 8 (bit 0 to 7) Value Sets the digital logic state of MVP-5100 digital output channels 1 to 8 (bit 0 to 7) to 0 or 1. Return codes 0: Operation Success -1: Operation Failed...

  • Page 91: Important Safety Instructions

    MVP-5100 Important Safety Instructions For user safety, please read and follow all instructions, Warnings, Cautions, and Notes marked in this manual and on the associated device before handling/operating the device, to avoid injury or damage. Read these safety instructions carefully. Keep the User’s Manual for future reference.
  • Page 92 Leading EDGE COMPUTING A Lithium-type battery may be provided for uninterrupted backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type; please dispose of used batteries appropriately. CAUTION: This equipment is not suitable for use in locations where children are likely to be present.

  • Page 93: Consignes De Sécurité Importante

    MVP-5100 Consignes de Sécurité Importante S'il vous plaît prêter attention stricte à tous les avertissements et mises en garde figurant sur l'appareil, pour éviter des blessures ou des dommages. Lisez attentivement ces consignes de sécurité. Conservez le manuel de l'utilisateur pour pouvoir le con- sulter ultérieurement.
  • Page 94 Leading EDGE COMPUTING Si l'appareil ne doit pas être utilisé pendant de longues péri- odes, éteignez-le et débranchez-le de sa source d'alimenta- tion N'essayez jamais de réparer l'appareil, qui ne doit être réparé que par un personnel technique qualifié à l'aide d'outils appro- priés Une batterie de type Lithium peut être fournie pour une ali- mentation de secours ininterrompue ou d'urgence.
  • Page 95 MVP-5100 RISQUE DE BRÛLURES Partie chaude! Ne touchez pas cette surface, cela pourrait entraîner des blessures. Pour éviter tout danger, laissez la surface refroidir avant de la toucher. Consignes de Sécurité Importante...
  • Page 96 Leading EDGE COMPUTING This page intentionally left blank. Consignes de Sécurité Importante...
