2.5 Installing a Mini PCIe Wi-Fi Module

Use the following steps to install a Mini PCIe Wi-Fi module.
1. Insert the Mini PCIe Wi-Fi module into the indicated slot
at an angle.
2. Press down on the module until it is seated, then secure
it to the board using two M2.5-P-head-L5 screws (not
provided).
3. Attach the wires and antennas that came with your Wi-Fi
kit. It is recommended that the Wi-Fi antenna be con-
nected to the left SMA antenna port, and Wi-Fi+blue-
tooth antennal be connected to the right SMA antenna
port.
4. Replace the bottom cover of the chassis.
Getting Started
DLAP-211-JNX / DLAP-211-JT2 / DLAP-211-Nano Series

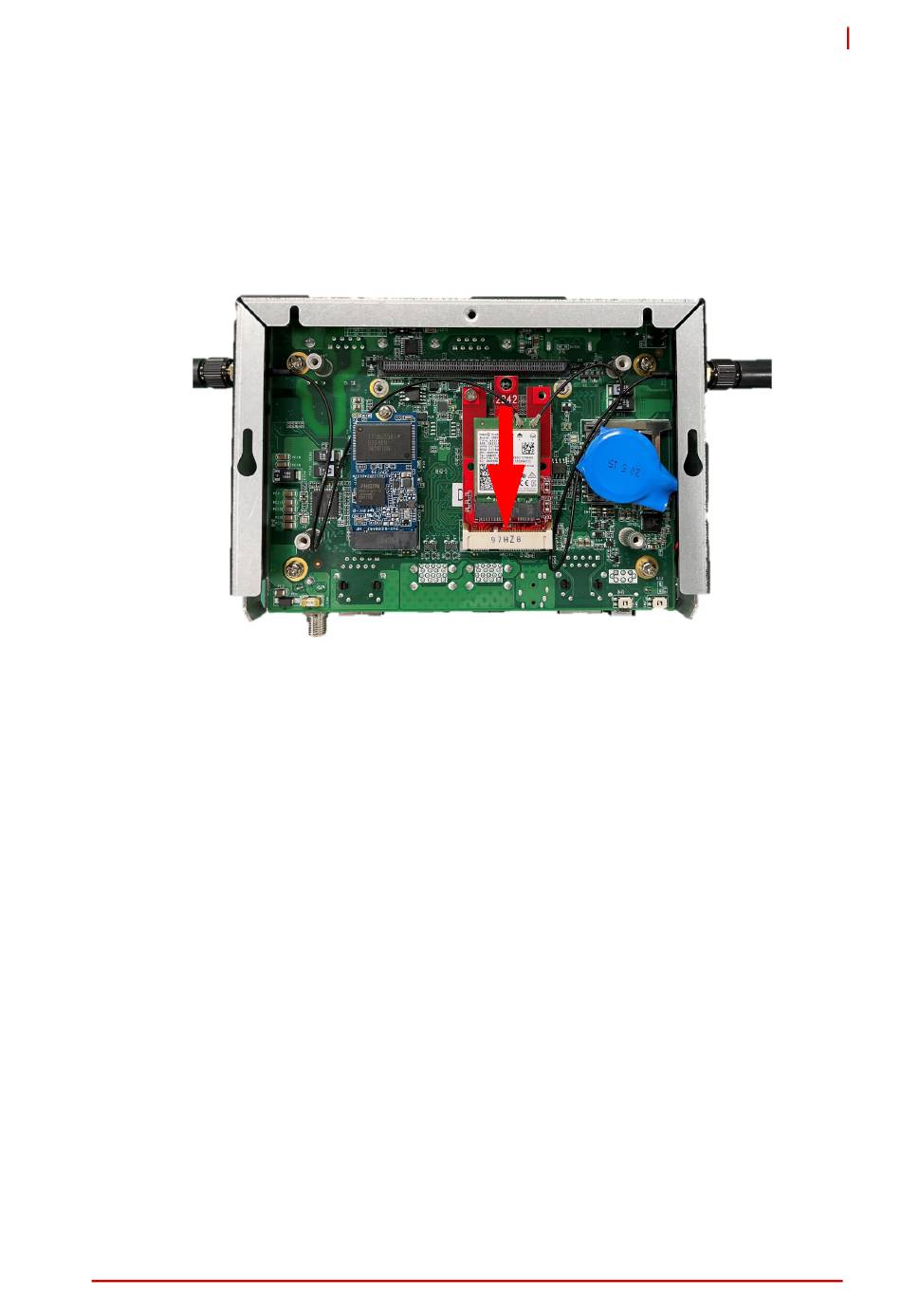

Figure 2-2: Mini PCIe Wi-Fi Slot
