2.7 VESA Mount

The DLAP-211 controller ships with a VESA 100 mounting bracket
and four M4 screws. Follow the steps below to mount the device.
1. Attach the VESA bracket to the wall (or other suitable
mounting surface) such that its keyhole-shaped mount-
ing holes are oriented with the wider openings at the top.
2. Secure the four M4 screws to the bottom of the chassis.
3. Securely attach the device to the VESA bracket by first
inserting the heads of the screws into the wider openings
of the VESA bracket's mounting holes, then sliding the
device down such that the screws are now firmly held by
the narrower portions of the mounting holes.
It is recommended that four M4 screws, 6cm in length, be used
to attach the assembled brackets to a wall. Actual fastener type
and length will be determined by the type of wall being
NOTE:
NOTE:
anchored to. (Sample anchors M4x0.7 L8mm with washer.)
24

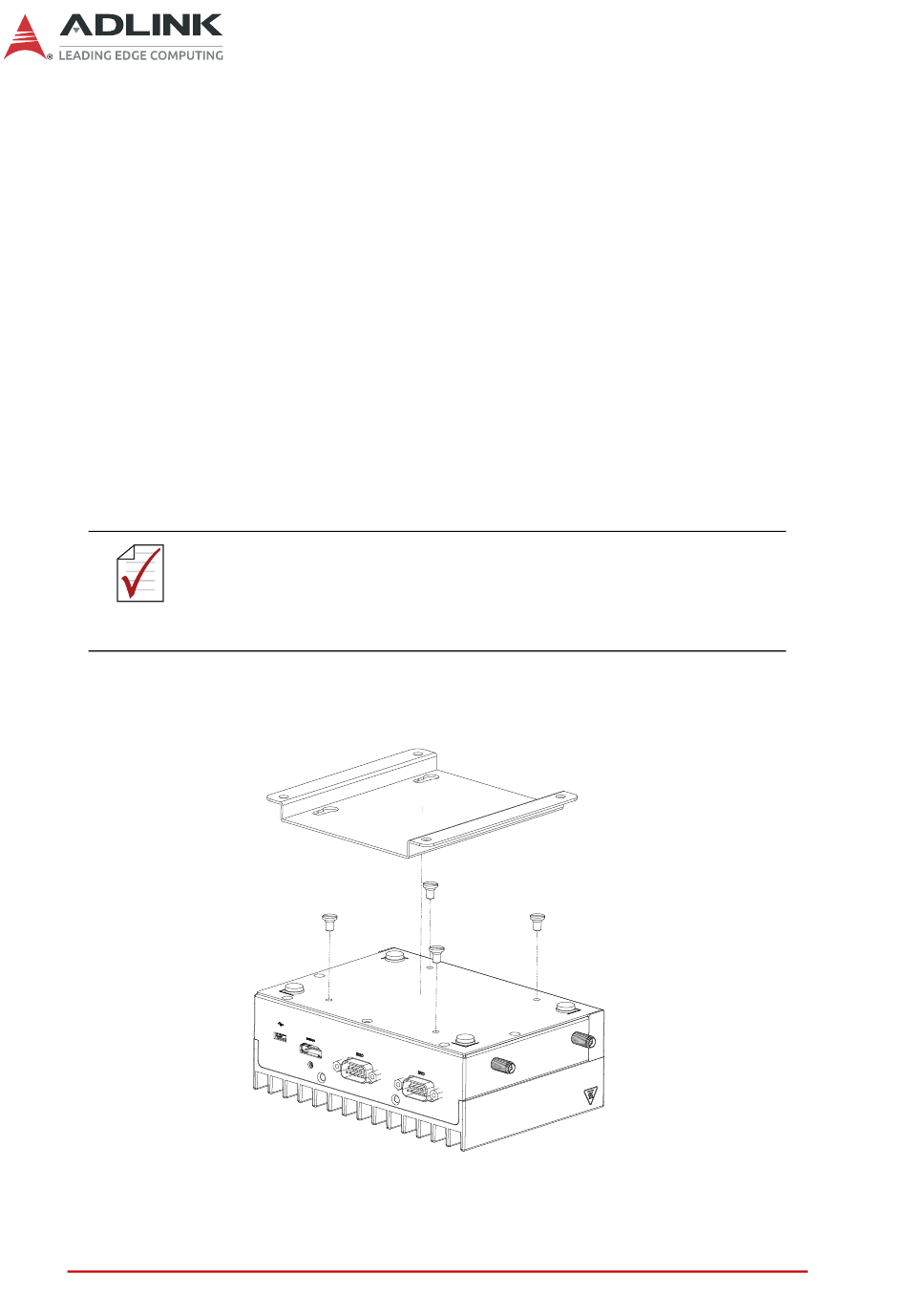

Figure 2-3: VESA Mount
