Table 1-3: Rear Panel I/O Connectors; Figure 1-7: Rear Panel I/O Connectors - ADLINK Technology DLAP-211-Nano Series User Manual

Rear Panel
H
Item Name
H CAN bus
I Serial port
J HDMI port
K USB 2.0
Introduction
DLAP-211-JNX / DLAP-211-JT2 / DLAP-211-Nano Series

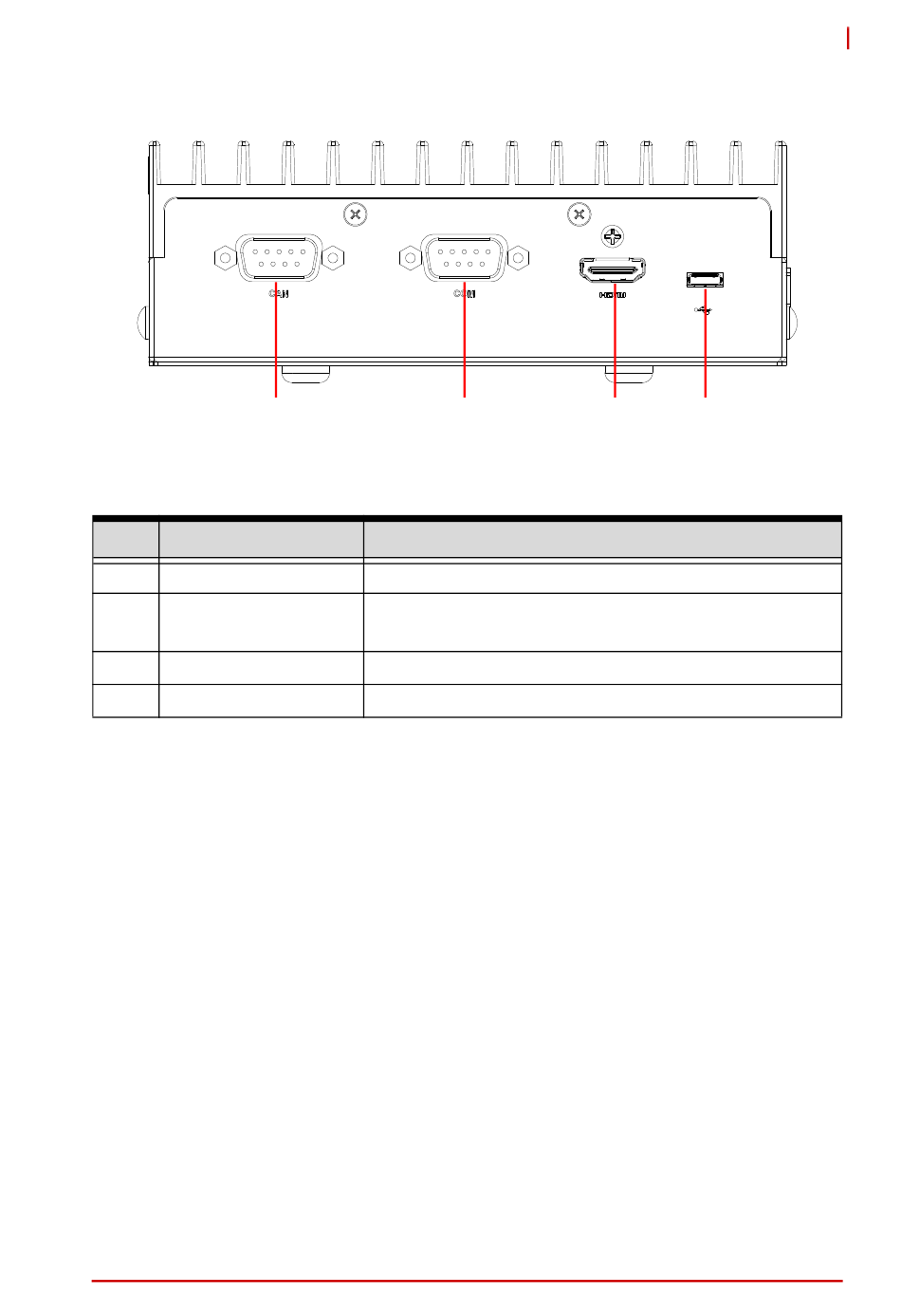

Figure 1-7: Rear Panel I/O Connectors

Description
CAN 2.0B (backward compatible with 2.0A)
COM port (DB-9 connector)
RS-232/422/485 (software programmable)
HDMI 2.0 with lock
USB 2.0 OTG (Micro USB)

Table 1-3: Rear Panel I/O Connectors
