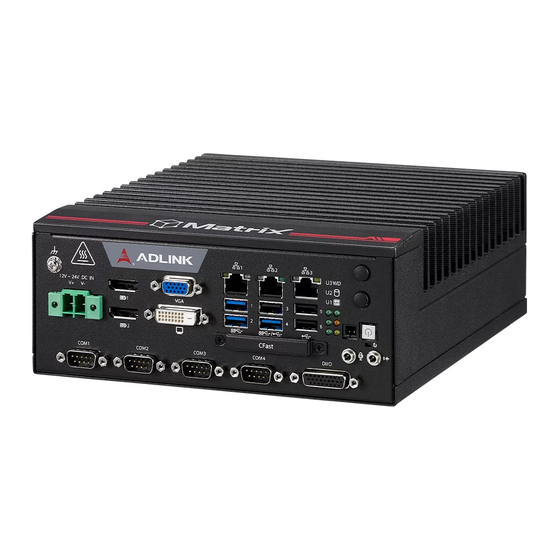

ADLINK Technology MVP-5100 Service Manual
  1. Manuals
  2. Brands
  3. ADLINK Technology Manuals
  4. Desktop
  5. MVP-5100
  6. Service manual

ADLINK Technology MVP-5100 Service Manual

Hide thumbs Also See for MVP-5100:
Table of Contents

Advertisement

Quick Links

Download this manual
MVP-5100/6100
SERVICE MANUAL ABOUT
GETTING STARTED
Rev.: 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVP-5100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADLINK Technology MVP-5100

Summary of Contents for ADLINK Technology MVP-5100

  • Page 1 MVP-5100/6100 SERVICE MANUAL ABOUT GETTING STARTED Rev.: 1.1...

  • Page 2: Table Of Contents

    Table of Contents Getting Started MVP-5100 MVP-5100-MXM  Install HDD/SSD  Install HDD/SSD  Install CFast Card  Install M.2 module  Install M.2 module  Install Mini PCIe module  Install Mini PCIe module  Wall mount  Wall mount MVP-6120/6140 ...
  • Page 3 MVP-5100 Leading EDGE COMPUTING adlinktech.com...

  • Page 4: Install Hdd/Ssd

    Install HDD/SSD 2. Remove the bottom cover by lifting 1. Remove the 6 bottom cover screws by screwdriver Leading EDGE COMPUTING adlinktech.com...
  • Page 5 Install HDD/SSD 4. Use 8 of the included M3 screws to fix two 2.5" 3. Release the hand screw to take the two bracket out. HDD or SSD unit to the Tray from the accessory pack. Note: 2.5" HDD or SSD maximum thickness support to 15mm Leading EDGE COMPUTING adlinktech.com...
  • Page 6 Install HDD/SSD 5. Gently seat the drive into the SATA connector on the PCB and 4 hand screws are fix to the bracket. Leading EDGE COMPUTING adlinktech.com...

  • Page 7: Install Cfast Card

    Install CFast card 1.Remove the screws fixing the CFast socket cover on 2. True the CFast card with the alignment guide. the front panel and remove the cover. 3.Gently insert the CFast card until it is firmly seated in the socket. Leading EDGE COMPUTING adlinktech.com...

  • Page 8: Install M.2 Module

    Install M.2 module 2. Use the included M3 standoff screw to fix it on the 1. Gently pull the drive out of the SATA connector on main board, The position depending on the size of the PCB after loosening the 4 hand screws. M.2.
  • Page 9 Install M.2 module 3. Install the M.2 module and lock the included screw. Leading EDGE COMPUTING adlinktech.com...

  • Page 10: Install Mini Pcie Module

    Install Mini PCIe module 4. Install the miniPCIe module and lock the included 3. Gently pull the drive out of the SATA connector on 2 M2.5 screws. the PCB after loosening the 4 hand screws. Leading EDGE COMPUTING adlinktech.com...

  • Page 11: Wall Mount

    Wall-mount 2.Use the 6 M4 screws shipped with the controller to 1.Remove the 6 bottom cover screws by screwdriver fix the 2 wall-mount brackets, also included, to the chassis, according to the spacing dimensions of the screw holes and brackets, as shown. Leading EDGE COMPUTING adlinktech.com...
  • Page 12 Wall mount 3.Once final assembly as shown is complete, mount the MVP-5000 on the wall via screw holes. Leading EDGE COMPUTING adlinktech.com...

  • Page 13: Mvp-6120/6140

    MVP-6120/6140 Leading EDGE COMPUTING adlinktech.com...

  • Page 14: Install Hdd/Ssd (Option)

    Install HDD/SSD 2. Remove the 4 rear base case screws by screwdriver 1. Remove the top cover after loosening the hand screw Leading EDGE COMPUTING adlinktech.com...
  • Page 15 Install HDD/SSD 4. Use 8 of the included M3 screws to fix two 2.5" HDD or SSD 3. Remove the bracket by lifting unit to the bracket. Note: 2.5" HDD or SSD maximum thickness support to 9.5mm Leading EDGE COMPUTING adlinktech.com...
  • Page 16 Install HDD/SSD 3. Gently seat the drive into the SATA connector on the PCB. Leading EDGE COMPUTING adlinktech.com...
  • Page 17 Install HDD/SSD (option) 1. Combined with two 2.5" HDD or SSD Bracket X 1 Screw X 8 Note: 2.5" HDD or SSD maximum thickness support to 15mm SATA/Power cable(short) X 1 SATA /Power cable(long) X 1 Leading EDGE COMPUTING adlinktech.com...
  • Page 18 Install HDD/SSD (option) 2. Remove the 4 side base case screws by screwdriver. 1. Remove the top cover after loosening the hand screw. Leading EDGE COMPUTING adlinktech.com...
  • Page 19 Install HDD/SSD (option) 3. Put the HDD or SSD assembly into the system and 4. Connect the cables to the PCB in sequence. lock the 4 side base case screws . SATA /Power cable(long) SATA /Power cable(short) Leading EDGE COMPUTING adlinktech.com...

  • Page 20: Install Cfast Card

    Install CFast card 1.Remove the screws fixing the CFast socket cover on 2. True the CFast card with the alignment guide. the front panel and remove the cover. 3.Gently insert the CFast card until it is firmly seated in the socket. Leading EDGE COMPUTING adlinktech.com...

  • Page 21: Install M.2 Module

    Install M.2 module 2. Use the included M3 standoff screw to fix it on the 1. Remove the top cover after loosening the hand main board, The position depending on the size of screw. M.2. M.2 size 3042 M.2 size 2280 Leading EDGE COMPUTING adlinktech.com...
  • Page 22 Install M.2 module 3. Install the M.2 module and lock the included screw. Leading EDGE COMPUTING adlinktech.com...

  • Page 23: Install Mini Pcie Module

    Install Mini PCIe module 2. Install the miniPCIe module and lock the included 1. Remove the top cover after loosening the hand 2 M2.5 screws. screw. Leading EDGE COMPUTING adlinktech.com...
  • Page 24 Wall mount for MVP-6120 (rear side) 1. Use the 6 M4 screws shipped with the controller to fix the 2 wall-mount brackets, also included, to the chassis, according to the spacing dimensions of the screw holes and brackets, as shown. Leading EDGE COMPUTING adlinktech.com...
  • Page 25 Wall mount for MVP-6140 (rear side) 1. Use the 6 M4 screws shipped with the controller to fix the 2 wall-mount brackets, also included, to the chassis, according to the spacing dimensions of the screw holes and brackets, as shown. Leading EDGE COMPUTING adlinktech.com...
  • Page 26 Wall mount for MVP-6120/6140 (right side) 1. Use the 6 M4 screws shipped with the controller to fix the 2 wall-mount brackets, also included, to the chassis, according to the spacing dimensions of the screw holes and brackets, as shown. Leading EDGE COMPUTING adlinktech.com...

  • Page 27: Install Fan Kit (Option)

    Install Fan kit (option) FAN KIT X 1 Leading EDGE COMPUTING adlinktech.com...
  • Page 28 Install Fan kit (option) 1. Remove the top cover after loosening the hand 2. First connect the fan connector to the PCB, and then screw. fasten the FAN ASSM SET to the chassis. Leading EDGE COMPUTING adlinktech.com...
  • Page 29 Max. PCI/PCIe card dimension SSD/HDD thickness >9.5mm & ≦15mm SSD/HDD thickness≦9.5mm Leading EDGE COMPUTING adlinktech.com...

  • Page 30: Mvp-5100-Mxm

    MVP-5100-MXM Leading EDGE COMPUTING adlinktech.com...

  • Page 31: Install Hdd/Ssd

    Install HDD/SSD 2. Remove the HEATSINK by lifting 1. Remove the 6 HEATSINK screws by screwdriver Leading EDGE COMPUTING adlinktech.com...
  • Page 32 Install HDD/SSD 3. Release the FPC’ PCIex16 golden finger. 4. Release the hand screw to take the two bracket out. Leading EDGE COMPUTING adlinktech.com...
  • Page 33 Install HDD/SSD 5. Use 8 of the included M3 screws to fix two 2.5" HDD 6. Gently seat the drive into the SATA connector on or SSD unit to the bracket from the accessory pack. the PCB and 4 hand screws are fix to the bracket. 7.

  • Page 34: Install M.2 Module

    Install M.2 module 1. Gently pull the drive out of the SATA connector on 2. Use the included M3 standoff screw to fix it on the main board, The position depending on the size of M.2. the PCB after loosening the 4 hand screws. M.2 size 3042 M.2 size 2280 Leading EDGE COMPUTING...
  • Page 35 Install M.2 module 3. Install the M.2 module and lock the included screw. Leading EDGE COMPUTING adlinktech.com...

  • Page 36: Install Mini Pcie Module

    Install Mini PCIe module 1. Gently pull the drive out of the SATA connector on 2. Install the miniPCIe module and lock the included the PCB after loosening the 4 hand screws. 2 M2.5 screws. Leading EDGE COMPUTING adlinktech.com...

  • Page 37: Wall Mount

    Wall mount 1. Use the 6 M4 screws shipped with the controller to fix the 2 wall-mount brackets, also included, to the chassis, according to the spacing dimensions of the screw holes and brackets, as shown. Leading EDGE COMPUTING adlinktech.com...
  • Page 38 Wall mount 1. Use the 6 M4 screws shipped with the controller to fix the 2 wall-mount brackets, also included, to the chassis, according to the spacing dimensions of the screw holes and brackets, as shown. Leading EDGE COMPUTING adlinktech.com...
