Energi Savr Node QS
Simple applications: preconfigured modes require no commissioning

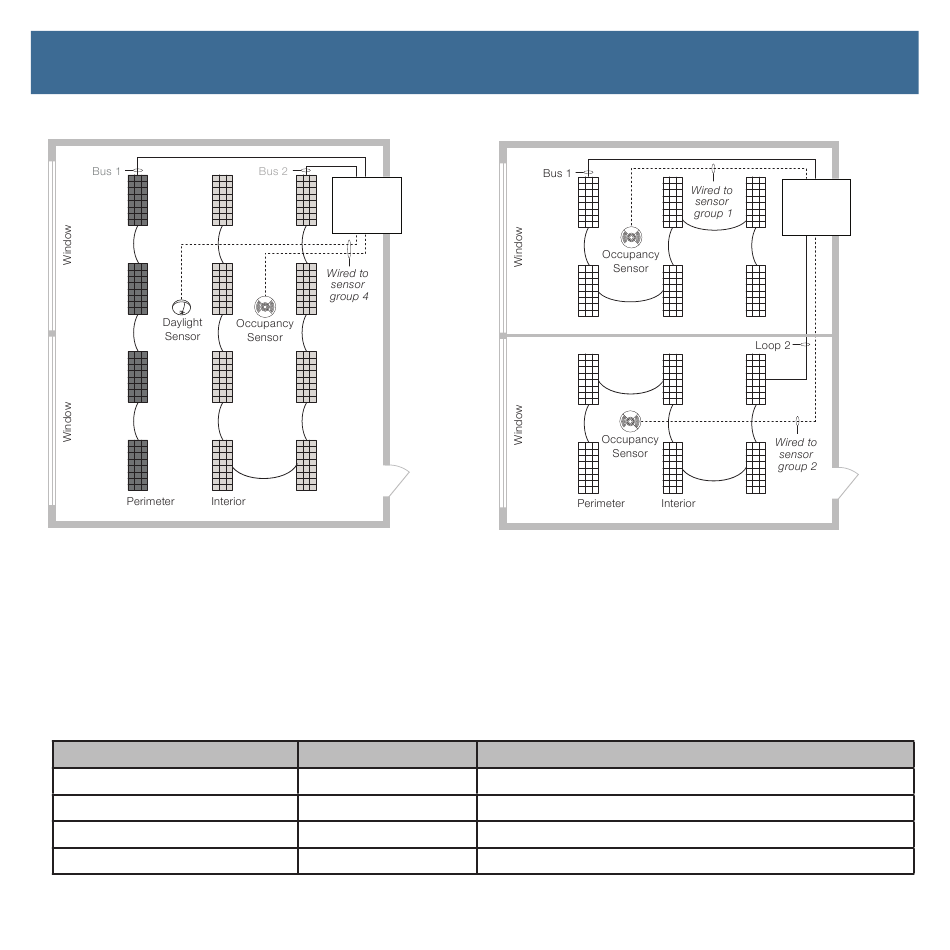

Preconfigured mode 1
Perimeter daylighting
* Four fixtures shown on bus 1 and eight fixtures
shown on bus 2, however, up to 64 fixtures can be
connected per bus.
Default Behavior for Sensor Connections
Connected to sensor group 1
Connected to sensor group 2
Connected to sensor group 3
Connected to sensor group 4
Energi Savr Node QS DALI Installation Guide
TM
DALI | Installation Guide
TM
Energi Savr
Node QS
Occupancy sensor Daylight sensor
Controls bus 1 only Controls bus 1 only
Controls bus 2 only Controls bus 2 only
Controls both buses Controls both buses with equal daylight gain
Controls both buses Controls both buses with lower daylight gain on bus 2
Preconfigured mode 2
Two zones with occupancy sensors
* Six fixtures shown on each bus. However, up to 64
fixtures can be connected per bus.
Energi Savr
Node QS
|
