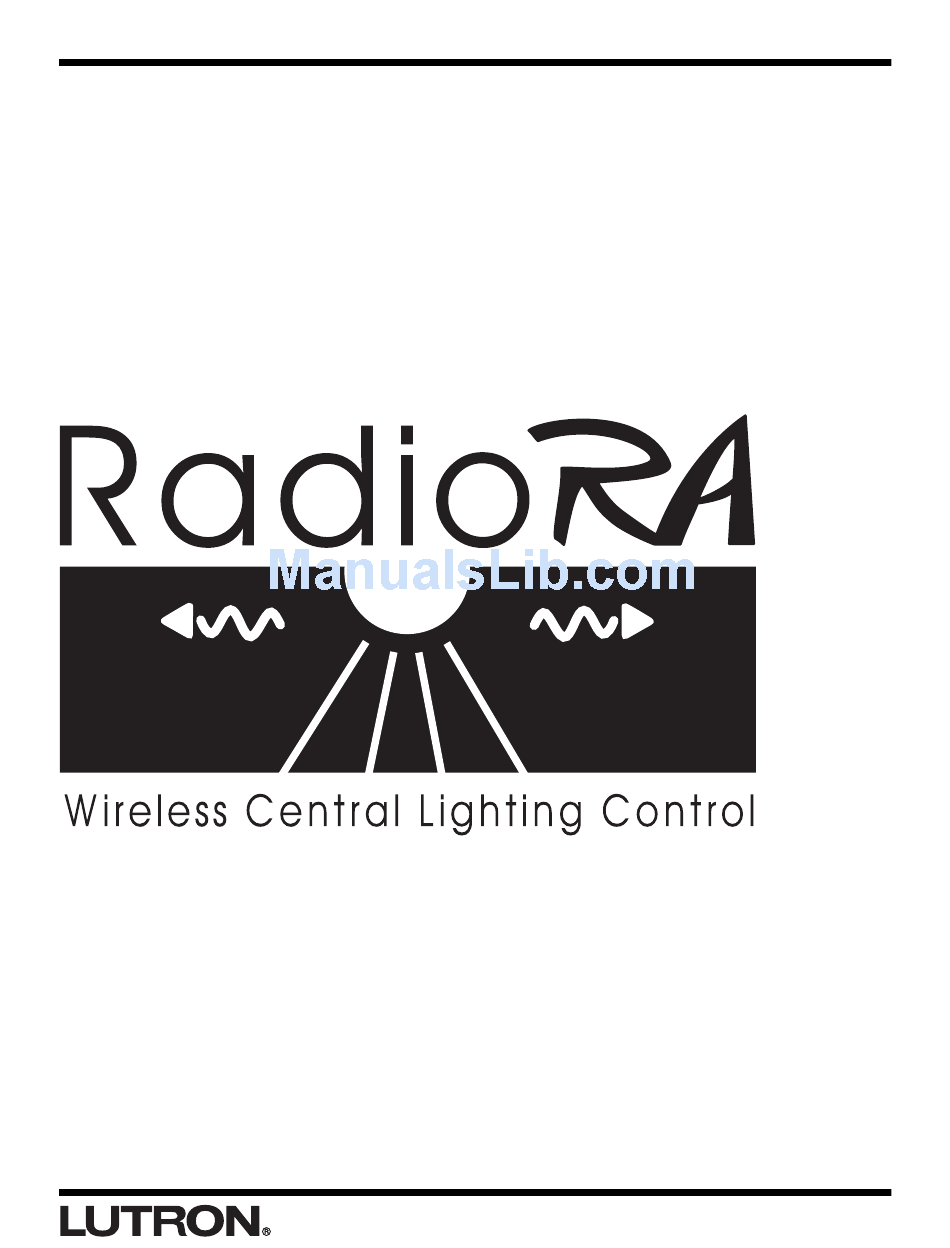

Setup Guide
A Step-by-Step Guide for Programming and Operating a
Complete Lutron RadioRA
Wireless Central Home
®
Lighting Control System
Note: Please leave this manual with homeowner.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RadioRA and is the answer not in the manual?

Questions and answers

Related Manuals for Lutron Electronics RadioRA

Summary of Contents for Lutron Electronics RadioRA

  • Page 1 ® Setup Guide A Step-by-Step Guide for Programming and Operating a Complete Lutron RadioRA Wireless Central Home ® Lighting Control System Note: Please leave this manual with homeowner.
  • Page 2 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by Lutron Electronics Co. could void the user's authority to operate this equipment. RadioRA Setup Guide ®...

  • Page 3: Table Of Contents

    Master Controls ..........................4-5 Switch Closure Interface ........................4-6 Dimmers ............................4-7 Switches ............................4-8 GRAFIK Eye Interface ........................4-9 ® Repeaters ............................4-10 Section 5 - Miscellaneous Using RadioRA Master Controls with Raise/Lower ............5-1 ® Programming Worksheet ......................5-2 RadioRA Setup Guide ®...

  • Page 4: Activating Your System

    If the ACTIVATE REPEATER LED turns orange, consult the Troubleshooting Guide, Section I or II. • If you have only one Repeater proceed Green MAIN LED is ON. to Step 4. REPEATER ACTIVATE VERIFY MAIN REPEATER BEEP AUXILIARY CONTROLS FLASH RadioRA Setup Guide ®...
  • Page 5 If the ACTIVATE REPEATER LED turns orange, consult the Troubleshooting Guide, Section I, II or III. • Repeat Step 3 to activate any remaining Auxiliary Repeaters. • Proceed to Step 4 when all Repeaters have been activated. RadioRA Setup Guide ®...

  • Page 6: Activating Controls

    Master Controls. Activate one Master Control at a time. Wait for the middle row of LEDs to turn ON before activating any remaining Master Controls. • Proceed to Step 3 when all Master Controls have been activated. RadioRA Setup Guide ®...
  • Page 7 Control Unit at a time. Wait for the control to flash its light(s) before activating any remaining controls. • Proceed to Step 4 when all Dimmers, Switches or GRAFIK Eye Control Units ® have been activated. RadioRA Setup Guide ®...
  • Page 8 Control Unit has not been ® activated, repeat Steps 1 through 5, starting on page 1-3. • Master Controls, Dimmers, Switches, and GRAFIK Eye Control Units are now ® activated. • Proceed to Programming Preparations on page 1-6. RadioRA Setup Guide ®...

  • Page 9: Programming Preparations

    After the System has been activated, the Master Controls (M.C.) should be programmed so that a light or a group of lights can be controlled by one or more Master buttons. Prior to programming your system, complete the RadioRA System Programming Worksheet (page 5-2).

  • Page 10: Assigning A Column Of Buttons As Rooms Or Scenes

    SCENE (or vice versa) will delete all previous buttons in that column programming in that column of buttons. are set as ROOM buttons. If the second LED in a column is flashing, the buttons in that column are set as SCENE buttons. RadioRA Setup Guide ®...
  • Page 11 Apply the supplied ROOMS or SCENES labels to the space provided over each button column. SCENES ROOMS ROOMS • Proceed to Assigning Dimmers, Switches or GRAFIK Eye Control Units ® to ROOM Buttons on page 1-9. RadioRA Setup Guide ®...

  • Page 12: Room Button Programming

    1 once assigned. If you assign the wrong Dimmer, Switch or GRAFIK Eye Control Unit ® to a Master Control button, turn the Dimmer, Switch or GRAFIK Eye ® Control Unit OFF to unassign it. RadioRA Setup Guide ®...

  • Page 13: Setting Light Levels/Grafik Eye Scene Selection For Room Buttons

    Master Control have Dimmers on to 100% light, Switches ON, been programmed. and GRAFIK Eye Control Units ON to ® scene 1. • Proceed to Setting Light Levels/GRAFIK Scene Selection for ROOM Buttons ® on page 1-11. RadioRA Setup Guide 1-10 ®...
  • Page 14 ON. on the GRAFIK Eye Control Unit will be the ® Devices not assigned to that button will turn OFF. scene programmed to the ROOM button. 1-11 RadioRA Setup Guide ®...
  • Page 15 2-5 of the Advance Features Section of this guide. • Proceed to Step 6 when all ROOM Congratulations. Your system is now buttons on this Master Control have programmed. Relax and enjoy your system. been programmed. RadioRA Setup Guide 1-12 ®...

  • Page 16: Scene Button Programming

    ON to scene 1 once assigned. If you assign the wrong Dimmer, Switch or GRAFIK Eye Control Unit to ® a Master Control button, turn the Dimmer, Switch or GRAFIK Eye ® Control Unit OFF to unassign it. 1-13 RadioRA Setup Guide ®...

  • Page 17: Setting Light Levels/Grafik Eye Scene Selection For Scene Buttons

    Dimmers on to 50% light, Switches ON, and GRAFIK Eye Control Units ON to ® scene 1. • Proceed to Setting Light Levels/GRAFIK Scene Selection for SCENE Buttons ® on page 1-15. RadioRA Setup Guide 1-14 ®...
  • Page 18 All devices assigned to that button will turn ON to: Dimmers 50% light level, Switches ON, and GRAFIK Eye Control Units to scene 1. All LUTRON ® devices not assigned to that button will turn OFF. 1-15 RadioRA Setup Guide ®...
  • Page 19 Master Controls. • To copy the button programming from one Master Control to another Master Control, see Copy Button Programming on page 2-5. You may now operate your Master Control SCENE buttons RadioRA Setup Guide 1-16 ®...

  • Page 20: Advanced Programming

    Advanced Programming Programming the ALL ON Button The ALL ON button on a RadioRA Master Control will, by default, turn ON all Dimmers and Switches to full ® intensity, and GRAFIK Eye Control Units to Scene 1 when pressed. The ALL ON button can be programmed to ®...
  • Page 21 ALL ON button any additional Master Controls. If you remove the wrong Dimmer, Switch, or GRAFIK Control Unit from the ® ALL ON button, turn the Dimmer, Switch, or GRAFIK Control Unit ON to ® reassign it. RadioRA Setup Guide ®...

  • Page 22: Programming The All Off Button

    Advanced Programming Programming the ALL OFF Button The ALL OFF button on a RadioRA Master Control will, by default, turn OFF all Dimmers, Switches, and GRAFIK ® Control Units when pressed. The ALL OFF button can be programmed to turn selected Dimmers, Switches, ®...
  • Page 23 ALL OFF button any additional Master Controls. If you remove the wrong Dimmer, Switch, or GRAFIK Control Unit from the ® ALL OFF button, turn the Dimmer, Switch, or GRAFIK Control Unit ON to ® reassign it. RadioRA Setup Guide ®...

  • Page 24: Copying Button Programming

    LED blinks. Upper right LED blinks. Un-programmed Master Control The programming from a ROOM button cannot be copied to a SCENE button, or vice versa. Un-programmed Master Control Note: LEDs on all other Master Controls will flash. RadioRA Setup Guide ®...
  • Page 25 • Repeat Steps 1 through 4 to copy button Previously Programmed programming on any remaining Master Control unprogrammed Master Controls. Newly Programmed Master Control • Repeat Steps 2 and 3 for all Master Control buttons that you want to copy programming to. RadioRA Setup Guide ®...

  • Page 26: Erasing Button Programming

    LED begins to flash (approximately 3 Note: The LED will seconds). first flash (slower) and then begin to flutter (faster). ALL ON ALL OFF ALL ON ALL OFF Upper right LED flashes. LED will flutter for only 3 seconds. RadioRA Setup Guide ®...
  • Page 27 The LED will stop fluttering and begin to flash. All Dimmers and/or Switches will turn OFF, and programming is now erased from that Master Control button. • Repeat Steps 2 and 3 for all Master Control buttons with programming that you want to erase. RadioRA Setup Guide ®...

  • Page 28: Adding Basic System Components

    BEEP CONTROLS FLASH AUXILIARY AUXILIARY CONTROLS FLASH If the ACTIVATE REPEATER LED turns If the ACTIVATE REPEATER LED turns orange, consult the Troubleshooting Guide, orange, consult the Troubleshooting Guide, Section I, II or III. Sections I. RadioRA Setup Guide ®...
  • Page 29 CONTROLS FLASH The green ACTIVATE REPEATER LED on ALL Repeaters will turn OFF. The MAIN or AUXILIARY green LED will remain ON. REPEATER ACTIVATE VERIFY MAIN REPEATER BEEP AUXILIARY CONTROLS FLASH • Repeaters are now activated. RadioRA Setup Guide ®...

  • Page 30: Adding Controls

    Guide, Section VI or VII. Repeat the above Step to activate any remaining Master Controls Activate one Master Control at a time. Wait for the middle row of LEDs to turn ON before activating any remaining Master Controls. RadioRA Setup Guide ®...
  • Page 31 Activate one Dimmer, Switch or GRAFIK Eye Control Unit at a time. Wait for the Dimmer, Switch or GRAFIK Eye Control Unit to flash its ® light(s) before activating any remaining Dimmers, Switches or GRAFIK Eye Control ® Units. RadioRA Setup Guide ®...

  • Page 32: Adding A Switch Closure Interface

    AUXILIARY CONTROLS FLASH AC IN Input 4 LED will remain ON when the Switch Closure Interface has been activated. If a Switch Closure Interface fails to respond as described above, consult the Troubleshooting Guide, Section XI. RadioRA Setup Guide ®...
  • Page 33 • If you want to Verify that your Switch Closure Interface has been activated, see Flash Mode in the Troubleshooting Section on page 4-4. • Proceed to Assigning a Dimmers, Switches or GRAFIK Eye Control Units ® to Input Channels on page 3-7. RadioRA Setup Guide ®...

  • Page 34: Assigning Dimmers, Switches Or Grafik Eye Control Units To Input Channels

    This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received including interference that may cause undesired operation. AC IN RadioRA Setup Guide ®...
  • Page 35 Input Channel, turn the Dimmer, switch closure has been released, until the Switch or GRAFIK Eye Control Unit ® status of a Dimmer or Switch in that SCENE is OFF to unassign it. changed. • Continued on next page. RadioRA Setup Guide ®...
  • Page 36 AC IN Scene Selection on page 3-10. ® Perform Steps 3 and 4 for this newly selected Input Channel. • Proceed to Step 6 when all Input Channels on the Switch Closure Interface have been programmed. RadioRA Setup Guide ®...

  • Page 37: Setting Light Levels/Grafik Eye

    Control ® Control Units - ON to scene 1. ® Units not assigned to Input 1 will turn OFF. • Continued on next page. Note: Closure Type may not be changed while setting light levels. RadioRA Setup Guide 3-10 ®...
  • Page 38 Unit (which will be ON at scene 1). Select from pre-programmed scenes (1 through 4) by turning that scene ON or select OFF if it is to be turned OFF when this Input Channel is activated. LUTRON 3-11 RadioRA Setup Guide ®...
  • Page 39 (1) This device may not cause harmful interference and (2) This device must accept any interference received including interference that may cause undesired operation. AC IN All Input LEDs will flutter for a few seconds when completing. RadioRA Setup Guide 3-12 ®...

  • Page 40: Troubleshooting Guide

    ® frequency (RF) communications between system components. As such, it is highly dependent upon proper system installation and programming of controls. If you experience difficulties programming or operating your RadioRA system, please refer to this guide. Many symptoms of ®...

  • Page 41: Beep Mode

    Tabletop Master). If it is not possible to move the noise source, move a Repeater closer to the affected control. Poor power line frequency Use a 24VAC transformer to power regulation (RadioRA GRAFIK the GRAFIK Eye Interface. ® ®...

  • Page 42: Diagnostic Tools Beep Mode

    Control Unit ON or OFF, press the ALL ON or AUXILIARY CONTROLS FLASH ALL OFF button on a Master Control. Green BEEP LED on that Repeater will go OFF. MAIN or AUXILIARY LED will stay REPEATER ACTIVATE VERIFY MAIN REPEATER BEEP AUXILIARY CONTROLS FLASH RadioRA Setup Guide ®...

  • Page 43: Flash Mode

    (1) This device may not cause harmful interference and (2) This device must accept any interference received including interference that may cause undesired operation. Adding Controls on page 3-3 or Adding a Switch Closure Interface on page 3-5. AC IN RadioRA Setup Guide ®...

  • Page 44: Returning Components To Default Factory Settings Master Controls

    ALL ON ALL OFF All LEDs will turn OFF, indicating that the Master Control has been returned to Default ALL ON Factory Settings. ALL OFF LEDs will flash for only 3 seconds. ALL ON ALL OFF RadioRA Setup Guide ®...

  • Page 45: Switch Closure Interface

    This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received including interference that may cause undesired operation. AC IN AC IN RadioRA Setup Guide ®...

  • Page 46: Dimmers

    Press and hold the raise rocker and the paddle switch while turning the FASS switch ON until the LEDs begin to chase upward. If the LEDs chase downward, continue with Step 3, then repeat Steps 1-3 again. RadioRA Setup Guide ®...

  • Page 47: Switches

    Press and hold the paddle switch while turning the FASS switch ON until the LED begins to flash. The light the Switch controls will remain OFF. If the LED does not flash, continue with Step 3, then repeat Steps 1-3 again. RadioRA Setup Guide ®...

  • Page 48: Grafik Eye Interface

    The GRAFIK Eye Control Unit that was ® controlled by this GRAFIK Eye Interface will ® turn ON and OFF a few times indicating that the interface has been returned to Default Factory Settings. Reattach the faceplate. RadioRA Setup Guide ®...

  • Page 49: Repeaters

    Release both buttons. All LEDs will flash once and only the AUXILIARY LED will stay ON, indicating that the Repeater has been returned to Default Factory Settings. REPEATER ACTIVATE VERIFY MAIN REPEATER BEEP AUXILIARY CONTROLS FLASH RadioRA Setup Guide 4-10 ®...

  • Page 50: Using Radiora ® Master Controls With Raise/Lower

    Using RadioRA Master Controls with Raise/Lower ® On Master Controls equipped with Raise/Lower buttons, you can remotely adjust the light levels of all the Dimmers, and GRAFIK Eye Interfaces assigned to a particular Master Control button. ® How Raise/Lower works...
  • Page 52 Lutron Electronics Co., Inc. year after purchase. For warranty service, return unit 7200 Suter Road to place of purchase or mail to Lutron Electronics Co., Coopersburg, PA 18036-1299 U.S.A. Inc. at 7200 Suter Rd., Coopersburg, PA 18036-1299, TOLL FREE: (800) 523-9466 (U.S.A., Canada, and postage pre-paid.
