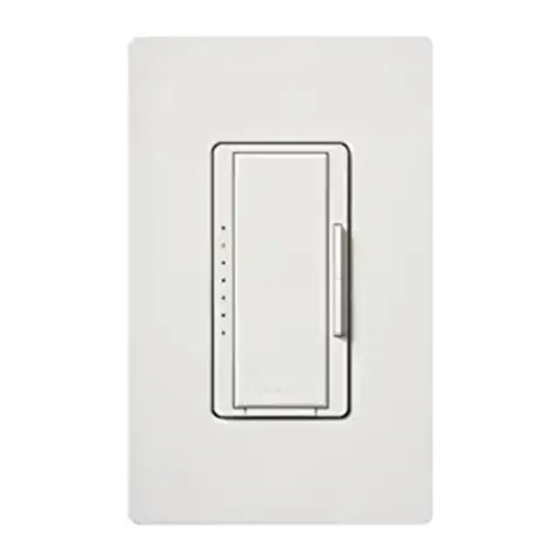

Lutron Electronics RRD-6CL-WH Quick Start Manual

1
Switch
English English
Please read before installing.
Switch
120 V~ 50 / 60 Hz
Lighting Load – 8 A
Motor Load – 1/4 HP 5.8 A
IMPORTANT
Companion Switch
(for 3-way wiring) 1. CAUTION: Use only with permanently installed fixtures with screw-in LED,
self-ballasted compact fluorescent, halogen, or incandescent lamps. Use only to
120 V~ 50 / 60 Hz 8.3 A
control the primary side of permanently installed transformer supplied
low-voltage lighting, or in combination with incandescent lamps. To reduce the
risk of overheating and possible damage to other equipment DO NOT use to
control receptacles.
2. Neutral is required for all load types.
3. Install in accordance with all national and local electrical codes.
4. When no "grounding means" exist within the wallbox, the NEC
404.9 allows a switch without a grounding connection to be installed as a
replacement, as long as a plastic, noncombustible wallplate is used. For this
type of installation, twist a wire connector onto the green ground wire or remove
the green ground wire on the switch and use an ap pro pri ate wallplate such as
Help
Claro or Satin Colors series wallplates by Lutron.
5. Protect the switch from dust and dirt when painting or spackling the wall.
6. This switch is not compatible with standard 3-way or 4-way switches. Use only
Use our mobile friendly self-paced
with Lutron companion switches listed above.
installation tool: 7. In any 3-way / 4-way circuit use only one switch with up to
4 companion switches.
www.lutron.com/wiringwizard
8. Maximum wire length between the switch and the farthest companion switch is
150 ft (45 m).
9. Operate between 32 °F and 104 °F (0 °C and 40 °C).
Find more product information:
10. It is normal for the switches to feel warm to the touch during operation.
www.lutron.com/support
11. Clean the switch with a soft damp cloth only. Do not use any chemical cleaners.
For disinfecting, please refer to App Note #758 (048758), "Cleaning
- Videos
Recommendations for Lutron Products" at www.lutron.com.
- Frequently Asked Questions
12. For indoor use only.
- Online Chat (8 am – 5 pm EST)
Call us:
U.S.A. | Canada | Caribbean
1.844.LUTRON1 (588.7661) (24/7)
Mexico
+1.888.235.2910
Others
+1.610.282.3800
www.lutron.com/support
Limited Warranty:
www.lutron.com/TechnicalDocumentLibrary/Warranty.pdf
For FCC/IC information:
Please visit: www.lutron.com/fcc-ic
Lutron, Claro, and Satin Colors are trademarks or registered trademarks of
Lutron Electronics Co., Inc. in the US and/or other countries.
All product names, logos, and brands are property of their
respective owners.
©2021 Lutron Electronics Co., Inc.
2

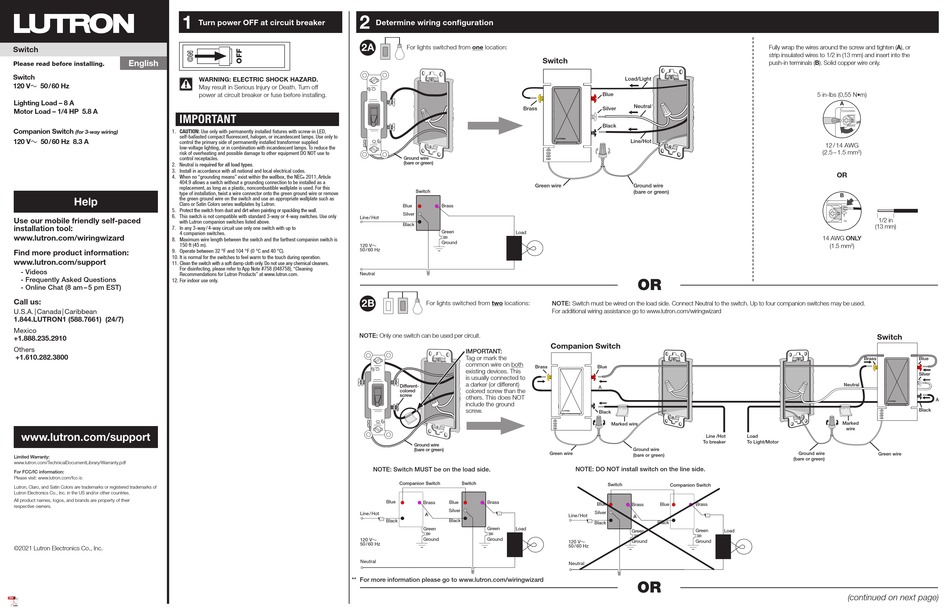

Turn power OFF at circuit breaker Determine wiring configuration
2A
WARNING: ELECTRIC SHOCK HAZARD.
May result in Serious Injury or Death. Turn off
power at circuit breaker or fuse before installing.
2011, Article
®
Line / Hot
120 V~
50 / 60 Hz
Neutral
2B
NOTE: Only one switch can be used per circuit.
NOTE: Switch MUST be on the load side.
Line / Hot
120 V~
50 / 60 Hz
Neutral
** For more information please go to www.lutron.com/wiringwizard
For lights switched from one location:
Switch
Brass
Ground wire
(bare or green)
Green wire
Switch
Blue Brass
Silver
Black
Green
Load
Ground
For lights switched from two locations:
NOTE: Switch must be wired on the load side. Connect Neutral to the switch. Up to four companion switches may be used.
For additional wiring assistance go to www.lutron.com/wiringwizard
Companion Switch
IMPORTANT:
Tag or mark the
common wire on both
Brass
existing devices. This
is usually connected to
a darker (or different)
Different-
colored colored screw than the
screw
others. This does NOT
include the ground
screw.
Ground wire
(bare or green)
Green wire
Companion Switch Switch
Blue
Brass Blue Brass
Silver
A
Black Black
Green Green Load
Ground Ground
Load/Light
Blue
Neutral
Silver
Black
Line/Hot
Ground wire
(bare or green)
OR
Blue
A
Black
Marked wire
Line /Hot Load
To breaker To Light/Motor
Ground wire
(bare or green)
NOTE: DO NOT install switch on the line side.
Switch
Companion Switch
Blue
Brass Blue Brass
Silver
Line / Hot
A
Black Black
Green Green Load
120 V~ Ground Ground
50 / 60 Hz
Neutral
OR
Fully wrap the wires around the screw and tighten (A), or
strip insulated wires to 1/2 in (13 mm) and insert into the
push-in terminals (B). Solid copper wire only.
5 in-lbs (0,55 N•m)
A
12 / 14 AWG
2
(2.5 – 1.5 mm )
OR
B
1/2 in
(13 mm)
14 AWG ONLY
(1.5 mm 2 )
Switch
Brass Blue
Silver
Neutral
A
Black
Marked
wire
Ground wire
Green wire
(bare or green)
(continued on next page)
