Stanza
TM
Installation Instructions
Occupant Copy
Features
• Integrates a Stanza lighting control system with equipment
that has contact closure I/O, including:
- O ccupant and vacancy sensors
- M otorized window treatments
- A V equipment
- S ecurity systems
- T hermostats
• Provides five inputs and five outputs.
• Provides both normally open (NO) and normally closed
(NC) dry contacts.
• Using the inputs, contact closures outputs from other
equipment can operate Stanza devices to:
- S elect scenes.
- T urn lights on or off.
• Using the outputs, other Stanza devices can:
- T rigger outputs to control other equipment.
- Provide status feedback to other equipment.
• Supports an external device drawing up to 100 mA. Note
that the power is supplied directly from the external low-
voltage PELV.
Mounting
1. M ount the interface directly on a wall, as shown in the
Mounting Diagram, using two #6 (M3) screws (not
included).
2. W hen mounting, provide sufficient space for the antenna
and connecting cables.
3. M ount in an accessible location for convenient access to
DIP switches, LEDs, and terminal blocks.
4. T he unit cannot be mounted in a full metal enclosure. If
mounting in a metal enclosure is necessary, antenna must
protrude out of a knockout or other hole. The antenna
may not be removed or mounted remotely.
5. C onnect wiring as shown in the Wiring Diagram. Use wire
sizes as specified in the Wiring Diagram.
6. T he SZ-IO should be mounted no less than 3 ft (1 m) from
motorized window treatments for proper RF performance.
7. T he SZ-IO must remain accessible after commissioning.
8. T he SZ-IO must be connected to Earth/Ground or
Chassis Ground for ESD protection (see wiring diagram).

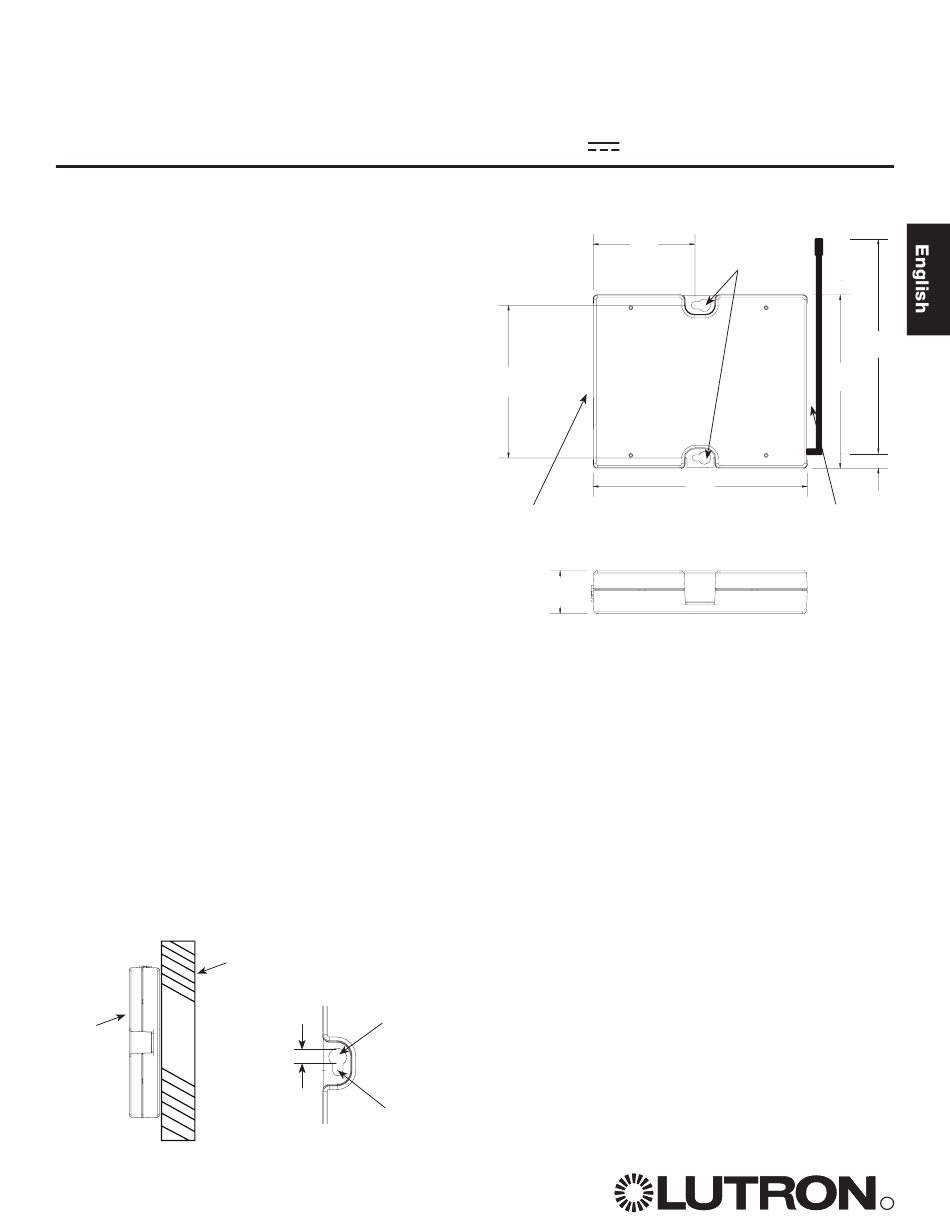

Mounting Diagram
Dimensions are in inches (mm).
Control
interface
Please Read
Wall
Mounting Hole Detail
0.23
(5.8)
0.31 (7.9)
dia.
0.18 (4.6)
dia.
#6 (M3) screw
recommended
(not included)
SZ-IO Control Interface
PELV (Class 2: USA) Device
15 – 24 V 200 mA
Dimensions
Dimensions are in inches (mm).
2.50
(63.5)
3.75
(95.3)
Terminal
blocks
on this side
1.06
(26.9)
FCC Information
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio or television reception. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• C onnect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• C onsult the dealer or an experienced radio/TV technician for
help.
Caution: Changes or modifications not expressly approved
by Lutron Electronics Co. could void the user's authority to
operate this equipment. Operation is subject to the following:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
Mounting
holes
(152.4)
4.26
(108.2)
1.0 (25.4)
5.26
(133.6)
LEDs
and DIP
switches on
this side
6.0
R
