Energi Savr Node QS
Installation of programming connection
WARNING! Danger of Shock. May result in serious injury or death. DO NOT WIRE WHEN LIVE! Switch off power via
circuit breaker or isolator before wiring or servicing the Energi Savr Node QS.
Buttons and LEDs on the front of the unit are used for programming and troubleshooting. If wiring is exposed when ac-
cessing buttons and LEDs, the unit must be accessed by a certified electrician, following local codes.
• The Energi Savr Node QS application for Apple iPod touch or iPhone mobile digital devices is used to program the Energi Savr
Node QS in installations requiring commissioning.

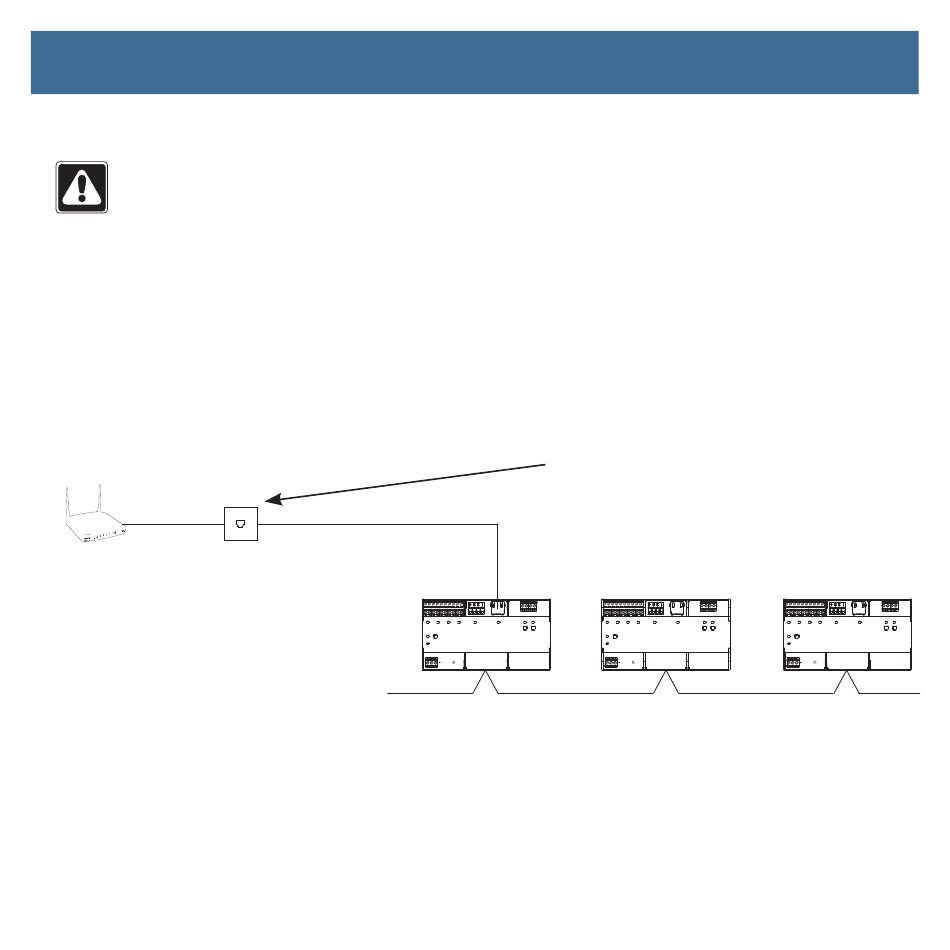

• Connection to the system is made via Wi-Fi through a wireless router as shown below.
• It is recommended that the person programming the system is able to see all the lights during the programming process.
NOTE: Ethernet programming connection not used when Energi Savr Node QS is part of a Quantum
Recommended: Install Wall Jack for Commissioning
Wireless Router (by others)
Wireless router- connected
temporarily (during system
commissioning and future
adjustments) or permanently.
All lights should be visible from
the wireless coverage area of
the router
If ethernet wall jack is not installed, turn power off to Energi Savr Node before connecting ethernet cable.
Energi Savr Node QS DALI Installation Guide
TM
DALI | Installation Guide
TM
Dedicated Ethernet connection for
Energi Savr Node QS units
*
Note: Do not connect directly to corporate or commercial network.
Easily accessible Ethernet wall
jack installed in the area which
has the lights
*
Energi Savr Node QS
QS Control Link
system.
®
|
