Summary of Contents for Lutron Electronics RadioRA 2

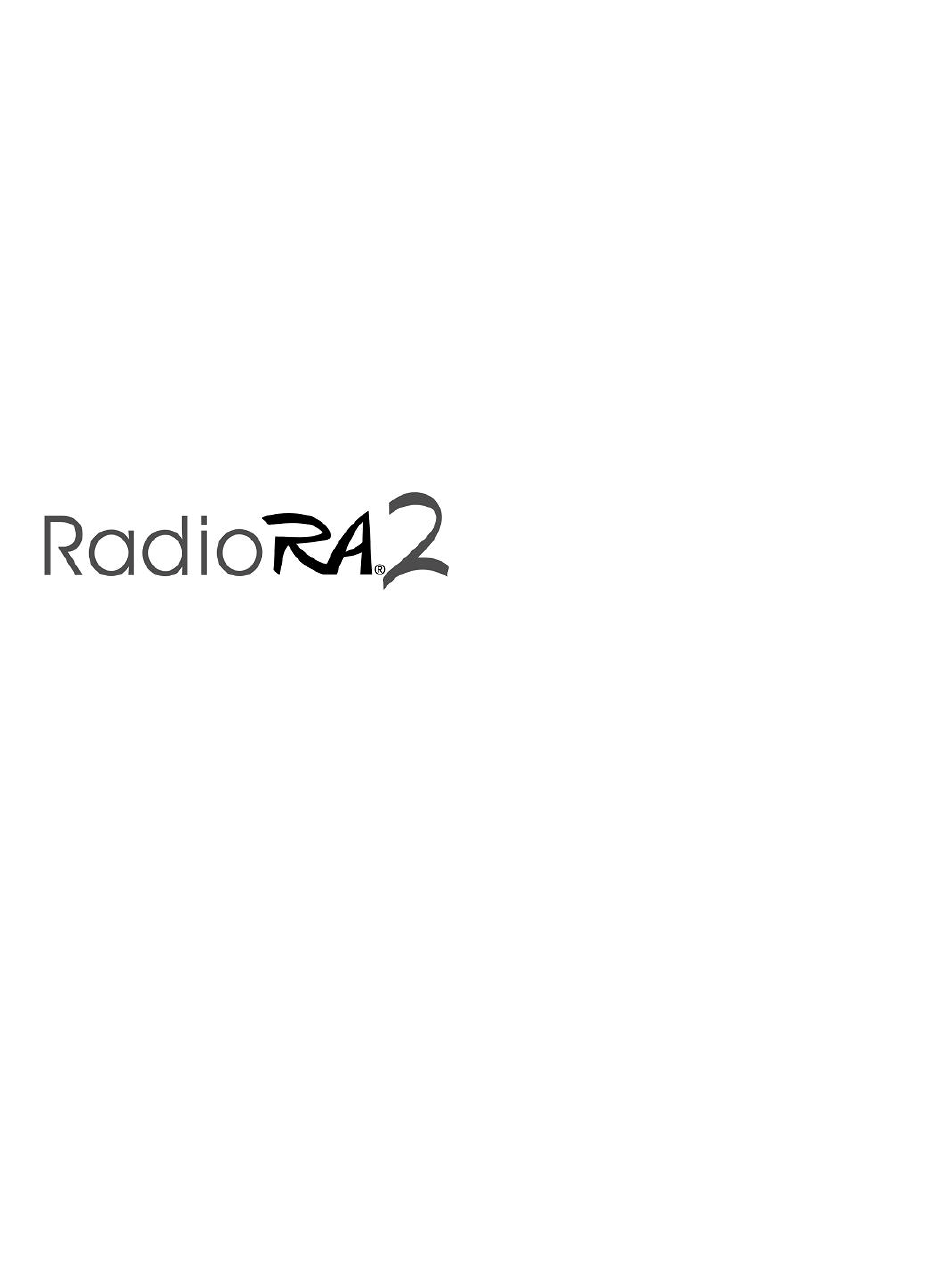

  • Page 1 networking revision B...

  • Page 2: Table Of Contents

    Table of Contents Local area network options (Single Main Repeater Systems) ......3 Wired/Wi-Fi connection through Wi-Fi router ................3 Wired connection through router .................... 4 Direct connection ........................5 Local area network options (Two Main Repeater Systems) ......... 6 Wired/Wi-Fi connection through Wi-Fi router ................

  • Page 3: Local Area Network Options (Single Main Repeater Systems)

    Local area network options (Single Main Repeater Systems) Option #1: Wired/Wi-Fi connection through Wi-Fi router Example A Wi-Fi enabled PC Wi-Fi Router RadioRA 2 Main Repeater IP address DHCP IP address 192.168.1.1 IP address DHCP subnet mask DHCP subnet mask 255.255.255.0...

  • Page 4: Wired Connection Through Router

    Option #2: Wired connection through router Example C Router RadioRA 2 Main Repeater IP address 192.168.1.2 IP address 192.168.1.1 IP address 192.168.1.3 subnet mask 255.255.255.0 subnet mask 255.255.255.0 subnet mask 255.255.255.0 Example D Router RadioRA 2 Main Repeater IP address...

  • Page 5: Direct Connection

    Option #3: Direct connection Example E RadioRA 2 Main Repeater IP address 192.168.1.1 IP address 192.168.1.2 subnet mask 255.255.255.0 subnet mask 255.255.255.0 When to use: This is a great option when no router is available or, you think your router is not working correctly or not setup correctly.

  • Page 6: Local Area Network Options (Two Main Repeater Systems)

    Option #1: Wired/Wi-Fi connection through Wi-Fi router Main Repeater Main Repeater Subnet 1 Subnet 2 Example A Wi-Fi enabled PC Wi-Fi Router RadioRA 2 Main Repeater 1 IP address DHCP IP address 192.168.1.1 IP address DHCP subnet mask DHCP subnet mask 255.255.255.0...

  • Page 7: Wired Connection Through Router

    Option #2: Wired connection through router Example C Router RadioRA 2 Main Repeater 1 IP address 192.168.1.2 IP address 192.168.1.1 IP address 192.168.1.3 subnet mask 255.255.255.0 subnet mask 255.255.255.0 subnet mask 255.255.255.0 RadioRA 2 Main Repeater 2 IP address 192.168.1.4 subnet mask 255.255.255.0...

  • Page 8: Repeater To Repeater Connection

    Option #3: Repeater to Repeater Connection Example E RadioRA 2 Main Repeater 1 RadioRA 2 Main Repeater 2 IP address 192.168.1.2 IP address 192.168.1.3 subnet mask 255.255.255.0 subnet mask 255.255.255.0 When to use: Utilize this setup ONLY AFTER System Activation and Transfer have been completed.

  • Page 9: How To Change Network Settings

    How to change network settings Step 1 Change your PC network settings A. This step may be not be necessary B. Go to your Control Panel and select Network Settings. Depending on whether you are connecting wirelessly or through a wire, right click and select ‘Properties’ on either your LAN or Wireless network connection.

  • Page 10: Change Network Settings On Router

    Step 2 Change network settings on router A. Connect your computer to your Wi-Fi router B. Open your web browser and type in your router’s IP address: Linksys default – 192.168.1.1 Dlink and Netgear default – 192.168.0.1 Other routers – consult your router’s documentation C.

  • Page 11: Basic Networking - Local Area Networks

    A network is a set of devices that are connected together to exchange digital information or commands. Devices can include desktop computers, laptops, Wi-Fi routers, or a RadioRA 2 main repeater. A local area network, or LAN, is a network of devices that are connected together by physical wires or over Wi-Fi and are in close physical proximity to each other.

  • Page 12: What Is A Subnet Mask

    What is a subnet mask? A subnet mask is used to tell what messages are for this network and which are for another network. A subnet mask consists of 4 “octets” of numbers ranging from 0 to 255. The subnet masks should match on all devices that are part of the same network.
