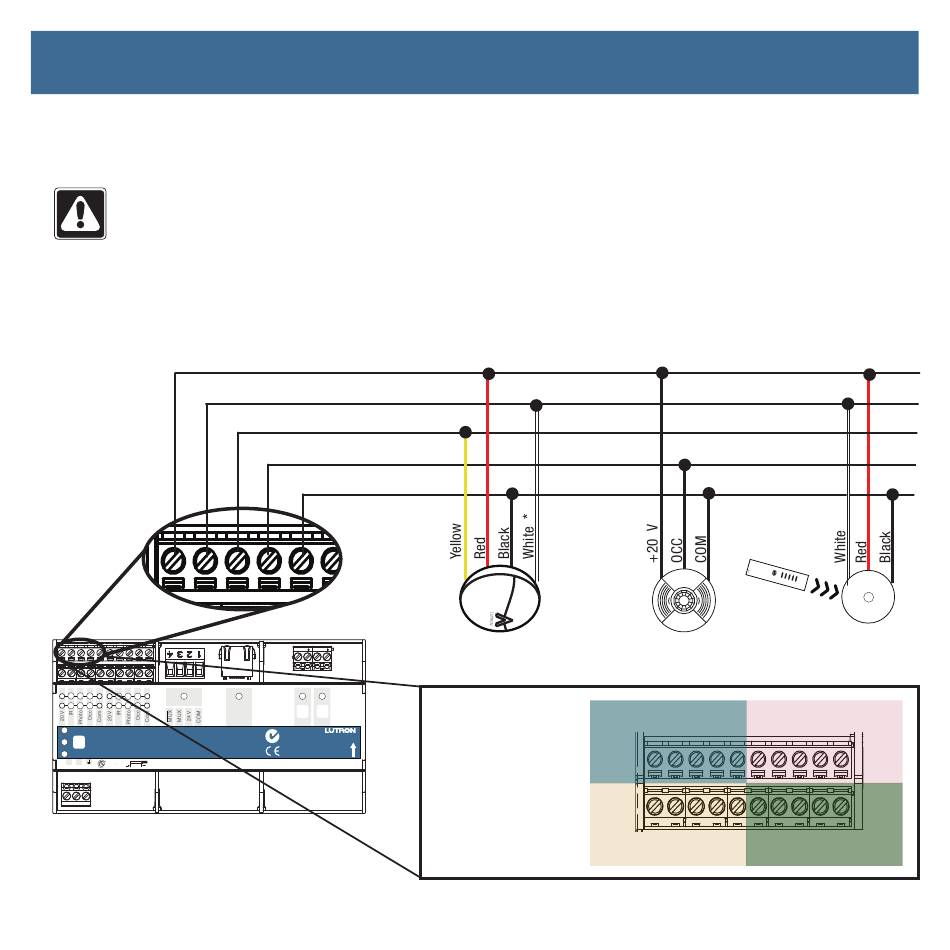

Step 4: Sensor wiring
To connect a daylight sensor, occupancy sensor and/or infrared receiver, refer to the instruction sheets provided with the
devices. Diagrams for the PELV sensors terminals are shown below.
WARNING! Danger of Shock. May result in serious injury or death. DO NOT WIRE WHEN LIVE! Switch off
power via circuit breaker or isolator before wiring or servicing the Energi Savr Node QS.
Buttons and LEDs on the front of the unit are used for programming and troubleshooting. If wiring is exposed
when accessing buttons and LEDs, the unit must be accessed by a certified electrician, following local codes.
Note: The Energi Savr Node QS accepts only one infrared input (either daylight or IR sensor) per group.
1 1 2 2
QS
3 3 4 4
Energi Savr Node
Hi Temp
QSNE-2DAL-D
Test
230 V~ 50/60 Hz 100 mA
www.lutron.com
Power +44.(0)20.7680.4481
L N
0,5 N m
8 mm
Energi Savr Node QS DALI Installation Guide
TM
TM
20 V
IR Sensor
Daylight Sensor
Occupancy Sensor
COM
Ethernet DALI 1 DALI 2
QS
TM
®
Z096
N1771
V
D E
DALI | Installation Guide
Daylight Sensor
* Do not connect white wire if using an IR sensor.
NOTE: There
are four sensor
groups. Each
group is wired in
the same way and
is shown above.
