Energi Savr Node QS

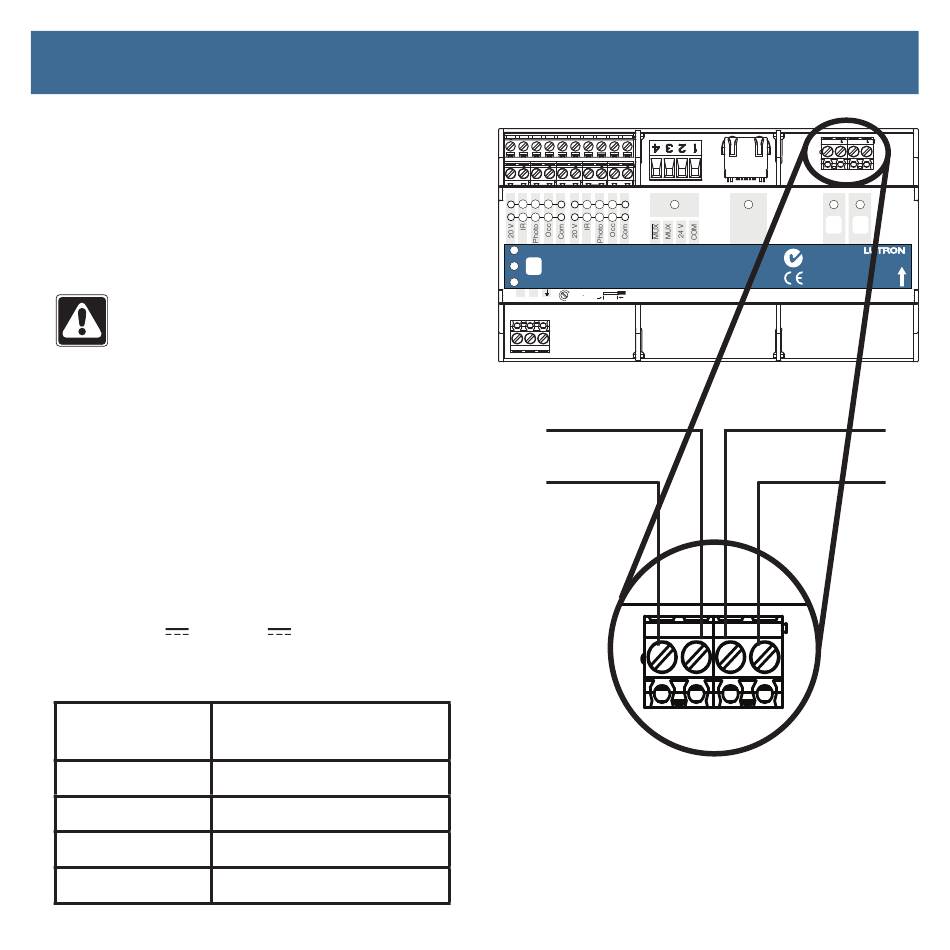

Step 3: DALI bus wiring
DALI bus wiring may be considered to be mains
voltage. (It is not considered SELV.) Consult applicable
national and local codes for compliance.
Lutron recommends using two different colours for
DA1 and DA2. This will prevent wiring mistakes where
several bus wires are co-located. Use the following
instructions for wiring the DALI bus.
WARNING! Danger of Shock. May result in
serious injury or death. DO NOT WIRE WHEN
LIVE! Switch off power via circuit breaker or
isolator before wiring or servicing the Energi
Savr Node QS.
Buttons and LEDs on the front of the unit are used
for programming and troubleshooting. If wiring is
exposed when accessing buttons and LEDs, the
unit must be accessed by a certified electrician,
following local codes.
1. Wire the DALI bus from the DALI terminals to all ballasts.
2. Turn on the circuit breaker or isolator to power up. The
POWER indicator lights green when powered up.
3. The Energi Savr Node QS outputs DALI compliant volt-
+ /
age levels (16 V
to confirm this voltage.
4. Turn power off.
Wire gauge
4,0 mm (12 AWG)
2
2,5 mm (14 AWG)
2
1,5 mm (16 AWG)
2
1,0 mm (18 AWG)
2
Energi Savr Node QS DALI Installation Guide
TM
TM
-
4,5 V ). Use a voltage meter
Maximum DALI-compliant
bus wire length
671 m (2 200 ft)
427 m (1 400 ft)
275 m (900 ft)
175 m (570 ft)
DALI | Installation Guide
1 1 2
3 3 4
Hi Temp
Test
Power
L N
0,5 N m
DALI Bus 1
DALI 1
DALI 1
2
QS Ethernet
4
Energi Savr Node QS
TM
QSNE-2DAL-D
230 V~ 50/60 Hz 100 mA
www.lutron.com
+44.(0)20.7680.4481
8 mm
DALI Bus 2
DALI 2
DALI 2
These terminals accept
1,0 - 4,0 mm
2
conductors
DALI 1 DALI 2
®
Z096
N1771
V
D E
|
