Energi Savr Node QS
Step-by-step installation instructions

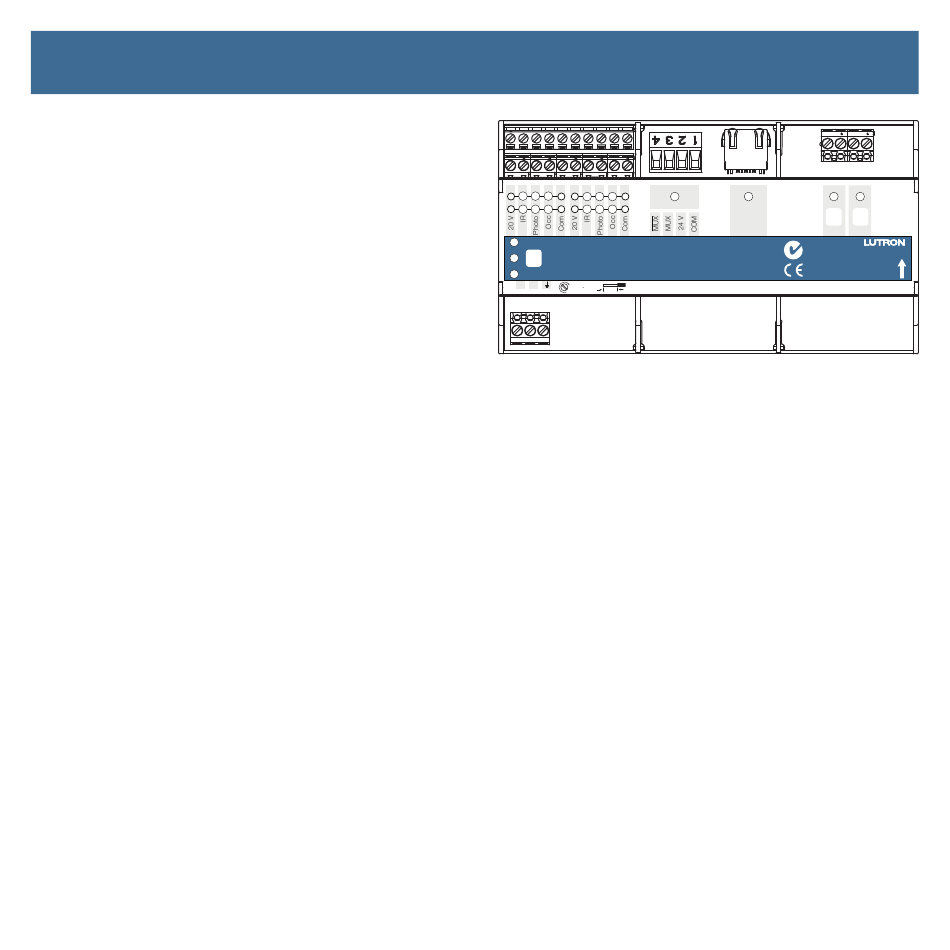

Step 1: Mounting the Energi Savr Node QS
Note: Mount the Energi Savr Node QS in a position
where it can be easily located and accessed if service
or troubleshooting is necessary. The Energi Savr Node
QS should be mounted with the directional arrows
pointing upwards.
Use an IP65 rated consumer panel or breaker panel
with integrated DIN rail and dead cover. The Energi
Savr Node QS is 161,7 mm wide.
To clip the Energi Savr Node QS onto the DIN rail:
1. Hook the Energi Savr Node QS onto the top of the
DIN rail
2. Pivot the Energi Savr Node QS onto the DIN rail
3. Press until the Energi Savr Node QS clips lock
To remove the Energi Savr Node QS from the DIN rail:
1. Using a screwdriver, pull the orange clips until they
click in the unlocked position.
2. Reverse the steps above.
Energi Savr Node QS DALI Installation Guide
TM
DALI | Installation Guide
TM
1
3
Hi Temp
Test
Power
L N
1 2 2
QS Ethernet
3 4 4
Energi Savr Node QS
TM
QSNE-2DAL-D
230 V~ 50/60 Hz 100 mA
www.lutron.com
+44.(0)20.7680.4481
0,5 N m
8 mm
DALI 1 DALI 2
®
Z096
N1771
V
D E
|
