Lutron Electronics GRAFIK 6000 Installation Instructions

Installation Instructions
Please Leave for Occupant
LUTRON
LIGHTING
SYSTEM
HANDHELD
PROGRAMMER
PORT
NTOMX-HHPJ

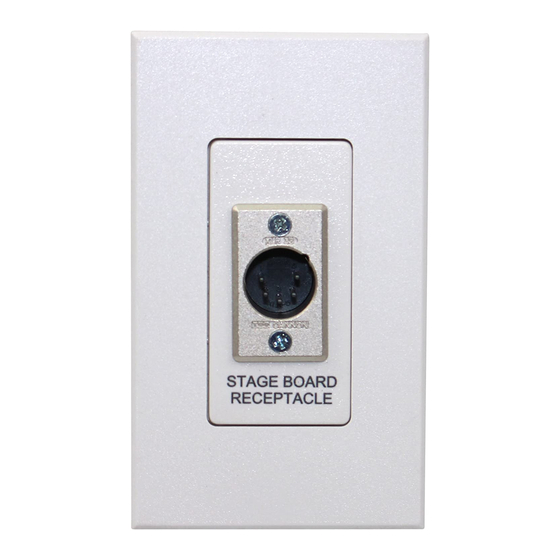

Handheld Programmer Port Walljack
Description
The NTOMX-HHPJ allows the Handheld Programmer to locally access
the Lighting Control System. The Handheld Programmer allows changes
to be made to the stored preset scene settings for the Lighting Control
System.
Important Notes
1. READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION.
2. This device must be installed by a qualified electrician.
3. Install in accordance with the National Electric Code
cable local regulations.
4. Turn power OFF at the control panel before installing the device. Do
not connect high-voltage power to low voltage terminals. Improper
wiring can result in personal injury or damage to the control or to
other equipment.
®
and all appli-
®
Devices:
®
NTOMX-HHPJ
Handheld Programmer Port Walljack
(Class 2 Device)
Installation
1. Prewiring: The Control Links require special wiring considerations.
Refer to the User's Guide and Lutron job drawings for wiring
restrictions and limitations that apply to your specific project.
2. Turn power OFF.
WARNING: Always turn off the power to the control
panel before doing any work. Failure to do so can result
in serious personal injury and damage to equipment.
3. Separate faceplate from faceplate adapter by pulling from the center
of the top of the faceplate. Unscrew faceplate adapter. Set aside.
4. Strip insulation from wires so 3/8" bare wire is exposed. This device
does not get an address and does not count as one of the 32 con-
trols allowed on the Control Link.
5. Connect wiring as shown in Typical User Interface Link Wiring
Diagram. Confirm all connections.
6. Mount device as shown in the Mounting Diagram using the mount-
ing screws provided. Screw on faceplate adapter and snap on face-
plate.
7. Restore power to the control panel after the installation of the sys-
tem is complete.
Mounting Diagram
Terminal Block
Wallbox
Walljack
Adapter Walljack
Mounting Mounting
Screws Screws
Faceplate
Adapter Faceplate
