ADP5350-EVALZ User Guide
USING THE EVALUATION BOARD
POWERING UP THE EVALUATION BOARD
The
ADP5350-EVALZ
evaluation board is supplied fully
assembled and tested. Before applying power to the evaluation
board, follow the procedures in this section.
Input Jumpers
Because VIN123 and VIN4 must be connected to VSYS, the
input jumpers, S1 and S2, are shunted by default.
Quick Start
A typical test setup follows:
1.
Connect the
USB-SDP-CABLEZ
USB port to the
ADP5350-EVALZ
2.
Use a dc power supply to connect VBUS and GND on the
ADP5350-EVALZ. Set the VBUS supply to 5. 0 V, and turn
the power on. If evaluation of the charge function is not
required, skip this step.
3.
Use a charged battery or a battery simulator to connect
ISOB and GND.
4.
Start the GUI software.
cable from the computer
evaluation board.
Rev. A | Page 9 of 17
LDO1
OUTPUT
2
TO USB I
C
DONGLE
BATTERY
SYSTEM
OR
BATTERY
SIMULATOR
Figure 16.
ADP5350-EVALZ
LDO3 Output
LDO2 Output
DC 5V Supply
System Load
Figure 17.
ADP5350-EVALZ
UG-1104
LDO2
LDO3
OUTPUT
OUTPUT
DC 5V
LOAD
SUPPLY

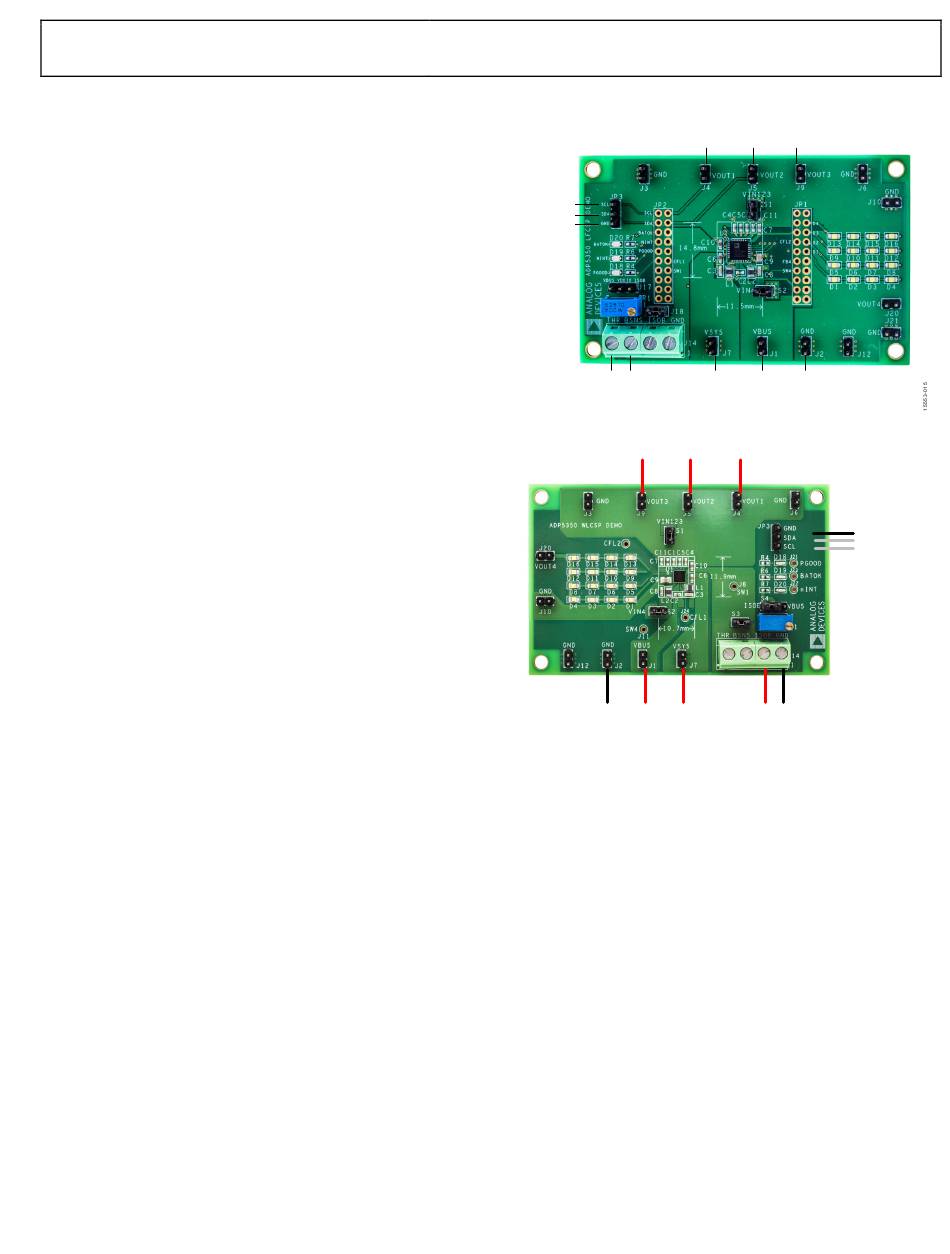

LFCSP Board Connection Diagram
LDO1 Output
To USB I2C
Dongle
Battery or Battery
Simulator
WLCSP Board Connection Diagram
