One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com

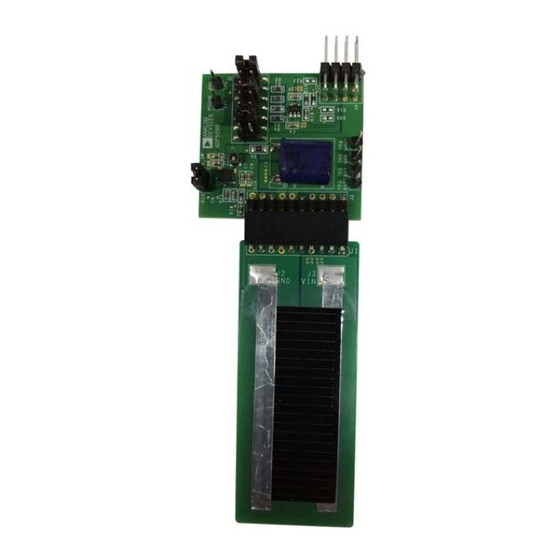

Evaluation Board for the

FEATURES

Plug and play energy harvesting platform
Compatible with Analog Devices, Inc., wireless sensor
network (WSN) platform
Solar panel harvester included
RoHS compliant

GENERAL DESCRIPTION

The
ADP5090
demonstration platform is a plug and play
evaluation board (ADP5090-2-EVALZ) for energy harvesting.
The demonstration platform includes the photovoltaic (PV)
panel and all of the power management to enable devices to be
powered using energy harvesting. It is based on the Alta
Devices™ PV cell, or the IXYS™ Corporation PV cell, and the
ADP5090
energy harvesting power management IC.
The
ADP5090
demonstration platform converts light energy to
electrical energy. The PV panel converts the light to 0.8 V
electrical energy. The
ADP5090
0.8 V to 3.5 V and stores the energy in a supercapacitor.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADP5090
Demonstration Platform for Energy Harvesting
boosts the input voltage from

SYSTEM BLOCK DIAGRAM

ENERGY HARVESTING
POWER MANAGEMENT
SOLAR PV PANEL
ENERGY
STORAGE
SUPERCAP
ADP5090-2-EVALZ User Guide
In addition, there is an on-board, low dropout (LDO) regulator
that powers loads at lower voltage rails than the 3.5 V stored in the
supercapacitor. The Alta Devices PV cell is a light harvesting
gallium arsenide-based cell. The PV cell is optimized for indoor
environments, where lux levels are typically 200 lux to 1000 lux.
The
ADP5090
is an ultra low power, synchronous, boost dc-to-dc
regulator. The
ADP5090
3.3 V and provides a high efficiency solution with an integrated
power switch, synchronous rectifier, and battery management.
The demo platform provides an easy way to evaluate the device.
Full details about the
ADP5090
data sheet and must be consulted when using the
ADP5090-2-EVALZ
The demo platform system also plugs directly into the Analog
Devices
WSN
demo platform.
This user guide describes how to set up the
EVALZ
board and how to use it for powering loads.
OUTPUT CONNECTOR
ADP5090
BACKUP
BATTERY
Figure 1.
Rev. A | Page 1 of 9
runs from input voltages of 0.38 V to
ADP5090
devices are available in the
evaluation board.
ADP5090-2-
UG-782

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADP5090-2-EVALZ and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices ADP5090-2-EVALZ

Summary of Contents for Analog Devices ADP5090-2-EVALZ

  • Page 1: Features

    3.5 V stored in the Plug and play energy harvesting platform supercapacitor. The Alta Devices PV cell is a light harvesting Compatible with Analog Devices, Inc., wireless sensor gallium arsenide-based cell. The PV cell is optimized for indoor network (WSN) platform environments, where lux levels are typically 200 lux to 1000 lux.

  • Page 2: Table Of Contents

    UG-782 ADP5090-2-EVALZ User Guide TABLE OF CONTENTS Features ....................1 Power Management of the Output (LDO) .........4 General Description ................. 1 J4 Output Connector ..............5 System Block Diagram ..............1 Evaluation Board Schematic and Artwork ........6 Revision History ................2 Bill Of Materials .................8...

  • Page 3: Demonstration Board Quick Start Guide

    ADP5090-2-EVALZ User Guide UG-782 DEMONSTRATION BOARD QUICK START GUIDE This section explains how to connect the solar panel to the Connect the J2_1 and J2_2, J2_9 and J2_10, and J2_11 and evaluation board and how to configure the evaluation board to...

  • Page 4: Evaluation Board Hardware

    UG-782 ADP5090-2-EVALZ User Guide EVALUATION BOARD HARDWARE POWER MANAGEMENT OF THE OUTPUT (LDO) A low dropout (ADP161) is included on the demo board (the ADP5090-2-EVALZ evaluation board). This regulator chooses different output voltages. Table 1 shows the jumper connections and the corresponding output voltage on the ADP5090-2- Figure 6.

  • Page 5: Changes To Figure 9

    The EN pin (Pin 6) is the enable control signal for the ADP161 LDO regulator on the ADP5090 demo board PGOOD (ADP5090-2-EVALZ). Connect this pin to the host MCU DIS_SW GPIO output to enable or disable the ADP161. • Connect the BACK_UP pin (Pin 7) to the analog input of OUTPUT...

  • Page 6: Changed Evaluation Board Schematic Section To Evaluation Board Schematic And Artwork Section

    UG-782 ADP5090-2-EVALZ User Guide EVALUATION BOARD SCHEMATIC AND ARTWORK PGOOD DIS_SW 2.32M DIS_SW PGOOD VOUT 1.4M 1.02M BACK_UP 5.9M 4.99M 4.7M ADP5090 0.1uF 4.7uF/10V BATT SETSD BACK_UP BATT U2 ADP161 TERM B_CHRG 3.3k AGND VOUT 4.02M 4.99M 4.7M MINOP 22uH...

  • Page 7: Moved Figure 11 And Figure 12

    ADP5090-2-EVALZ User Guide UG-782 Figure 11. ADP5090-2-EVALZ Evaluation Board Top Assembly Figure 12. ADP5090-2-EVALZ Evaluation Board Bottom Assembly Rev. A | Page 7 of 9...

  • Page 8: Bill Of Materials

    UG-782 ADP5090-2-EVALZ User Guide BILL OF MATERIALS Table 3. Bill of Materials Quantity Reference Description Part Number Vendor CR2032 holder BC2032-F1 Memory Protection Devices C1, C7 0.1 µF capacitors, C0603 GRM188R71H104KA93 Murata C2, C8 4.7 µF, 10 V capacitors, C0603...
  • Page 9 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
