FEATURES
4-layer PCB (33 mm × 55 mm form factor)
2 power supply options
2.2 V to 3.6 V from an external power supply
5 V from interface/emulator board
Power indicator/general-purpose LEDs
Reset and download push buttons
8-pin connector to the interface/emulator board or to
RS-232 interface cable (top row)
Access to
ADuCRF101
pins on the two footprints for through-
hole connectors on the edge of the board
32.768 kHz watch crystal footprint
Matching network and SMA connector for wireless
communication
EVALUATION KIT CONTENTS
A DVD containing evaluation software, user guides,
data sheets, and example code
Antenna
Emulator board (QuickStart and QuickStart Plus kits only)
GENERAL DESCRIPTION
The
ADuCRF101
is a fully integrated, data acquisition solution
designed for low power wireless applications. It features a 12-bit
ADC, a low power ARM Cortex™-M3 processor, a 431 MHz
to 464 MHz and 862 MHz to 928 MHz RF transceiver, and
Flash/EE memory, in a 9 mm × 9 mm LFCSP package.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADuCRF101
Evaluation Board User Guide
ADuCRF101

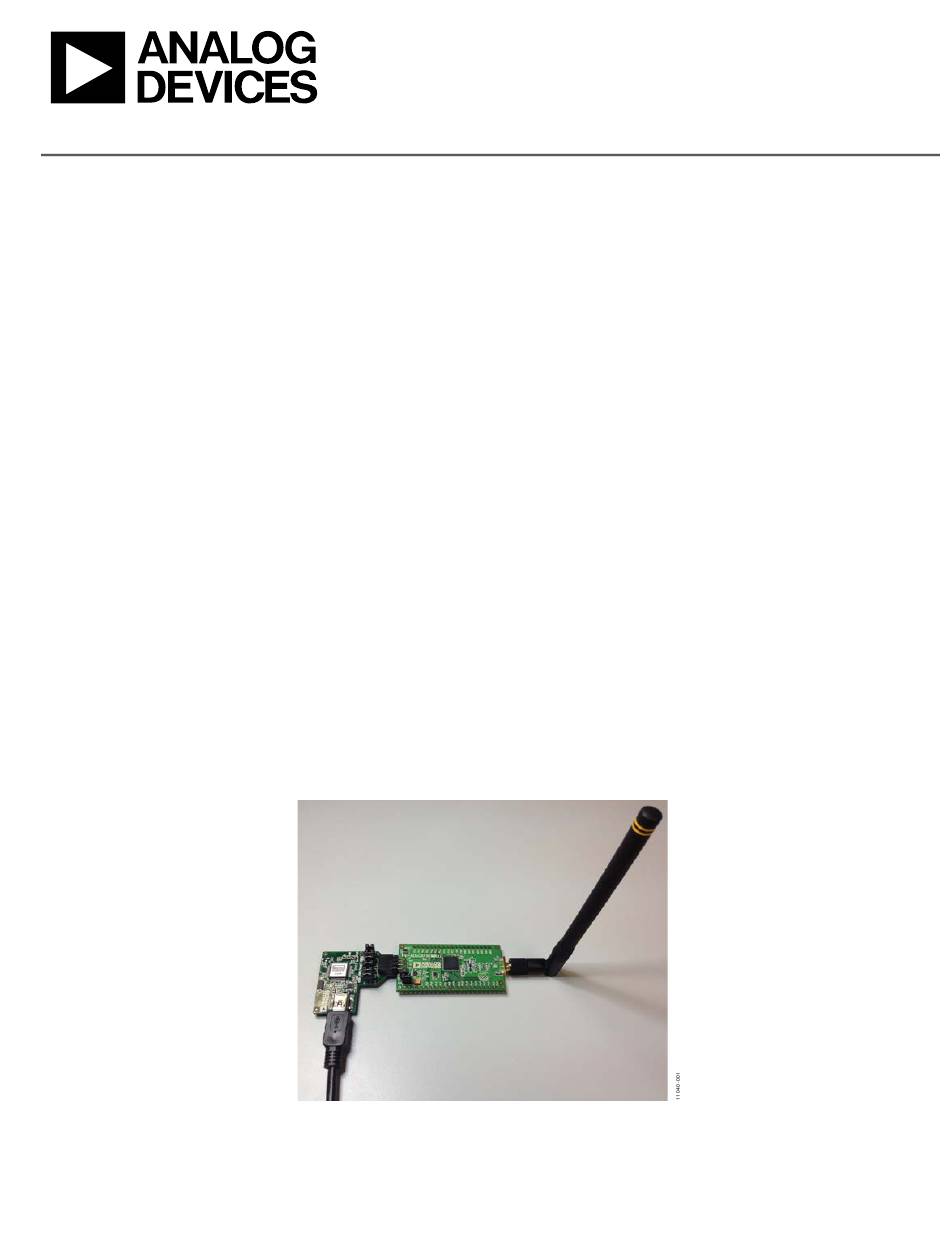

Figure 1
Rev. 0 | Page 1 of 12
Evaluation Board User Guide
EVALUATION BOARD OVERVIEW
The
ADuCRF101
mini board allows a user to program, debug,
and evaluate the performance of the ADuCRF101. Its small
form factor makes it the ideal hardware for evaluation of large
wireless sensor networks.
Six kits are available, from a mini board only, to a combination
of emulator and boards.
•
EV-ADuCRF101MK3Z mini board for 433 MHz operation
•
EV-ADuCRF101MK1Z mini board for 868 MHz/915 MHz
operation
•
EV-ADuCRF101QSP1Z QuickStart Plus for 868 MHz/915
MHz operation
•
EV-ADuCRF101QSP3Z QuickStart Plus for 433 MHz
operation
•
EV-ADuCRF101QS1Z QuickStart for 868 MHz/915 MHz
operation
•
EV-ADuCRF101QS3Z QuickStart for 433 MHz operation
Figure 1 shows the content of a quick start kit, one mini board
with antenna and one emulator.
Mini Board and Emulator Board
EV-ADuCRF101
Advertisement
Table of Contents
Related Manuals for Analog Devices EV-ADUCRF101
Summary of Contents for Analog Devices EV-ADUCRF101
-
Page 1: Features
Evaluation Board User Guide EV-ADuCRF101 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com ADuCRF101 Evaluation Board User Guide FEATURES EVALUATION BOARD OVERVIEW ADuCRF101 mini board allows a user to program, debug, 4-layer PCB (33 mm ×... -
Page 2: Table Of Contents
EV-ADuCRF101 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Power Indicator/General-Purpose LEDs ........4 Evaluation Kit Contents ..............1 Crystal Circuits ................4 General Description ................. 1 Emulator Interface ................4 Evaluation Board Overview ............1 Reset/Download Push Buttons ............4 Revision History ................2 RS-232 Interface ................4... -
Page 3: Development Systems Description
Evaluation Board User Guide EV-ADuCRF101 DEVELOPMENT SYSTEMS DESCRIPTION Different systems are available that are optimized for the J-LINK OB EMULATOR various types of evaluation requirements. The J-Link OB emulator board provides a debug path via serial Table 1 lists the contents available for each type of system. -
Page 4: Mini Board Features
EV-ADuCRF101 Evaluation Board User Guide MINI BOARD FEATURES Other emulators supporting serial wire debug (for example, JLINK POWER SUPPLY Version 6 and higher) can be used. The connections between Two options are available for powering the board. the mini board and the 20-pin JTAG connector are listed in •... -
Page 5: Rf Matching Network
Evaluation Board User Guide EV-ADuCRF101 RF MATCHING NETWORK The list of components for the different models available is available in Table 8 to Table 12. An RF matching network is available to match the LNA input The 868 MHz/915 MHz models come with a matching network impedance and PA output with the 50 Ω... -
Page 6: Mini Board Connectors
EV-ADuCRF101 Evaluation Board User Guide MINI BOARD CONNECTORS EDGE CONNECTORS J1 AND J2 Table 6. Pin Functions for Edge Connector J2 Pin No. Pin Function ADuCRF101 signals, such as GPIOs and analog inputs are J2-1 ADC0 available on the edge of the board, on two unpopulated... -
Page 7: Mini Board Schematic And Artwork
Evaluation Board User Guide EV-ADuCRF101 MINI BOARD SCHEMATIC AND ARTWORK Figure 5. ADuCRF101 Rev. 0 | Page 7 of 12... - Page 8 EV-ADuCRF101 Evaluation Board User Guide Figure 6. Connectors Rev. 0 | Page 8 of 12...
- Page 9 Evaluation Board User Guide EV-ADuCRF101 Figure 7. Matching Network Section Rev. 0 | Page 9 of 12...
- Page 10 EV-ADuCRF101 Evaluation Board User Guide Figure 8. Top Side Silkscreen Figure 9. Bottom Side Silkscreen Rev. 0 | Page 10 of 12...
-
Page 11: Bill Of Materials
Evaluation Board User Guide EV-ADuCRF101 BILL OF MATERIALS Table 8. Component Description Order No. Supplier EV-ADuCRF101MKxZ, Rev. E PCB Two-sided surface mount PSB-1 Analog Devices Precision analog microcontroller with RF transceiver ADuCRF101BCPZ128 Analog Devices Low quiescent current, 3.3 V linear regulator... - Page 12 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
