FEATURES

Variable 72 V to 96 V Regulated Voltage Range, Suitable for
►
E2W/E3W Applications
ASIL-D Compliant and Automotive Grade BMS Chip
►
Built-In Charge/Precharge, and Discharge Circuitry
►
1.8 mV Total Measurement Error for Cell Voltage Monitoring
►
High Performance Cell/Pack Voltage and Current Monitoring
►
On-Board isoSPI Communication
►
Low Power Cell Monitoring (LPCM) Capability
►
GPIO Controllable FET Monitoring
►
ADBMS6830 GPIO Input Ready for NTC Sensors
►
Low Power MAX32690 MCU
►
UART and CAN Communication
►
SOC and SOH Thru Enhanced Coulomb Counting Technique
►
E2W/E3W Basic System Behavior Modes
►
GUI Capable of the Following Measurements and Fault Detec-
►
tion:
Cell Monitoring
►
Voltage and Current Pack Monitoring
►
Charge Current Monitoring
►
Discharge Current Monitoring
►

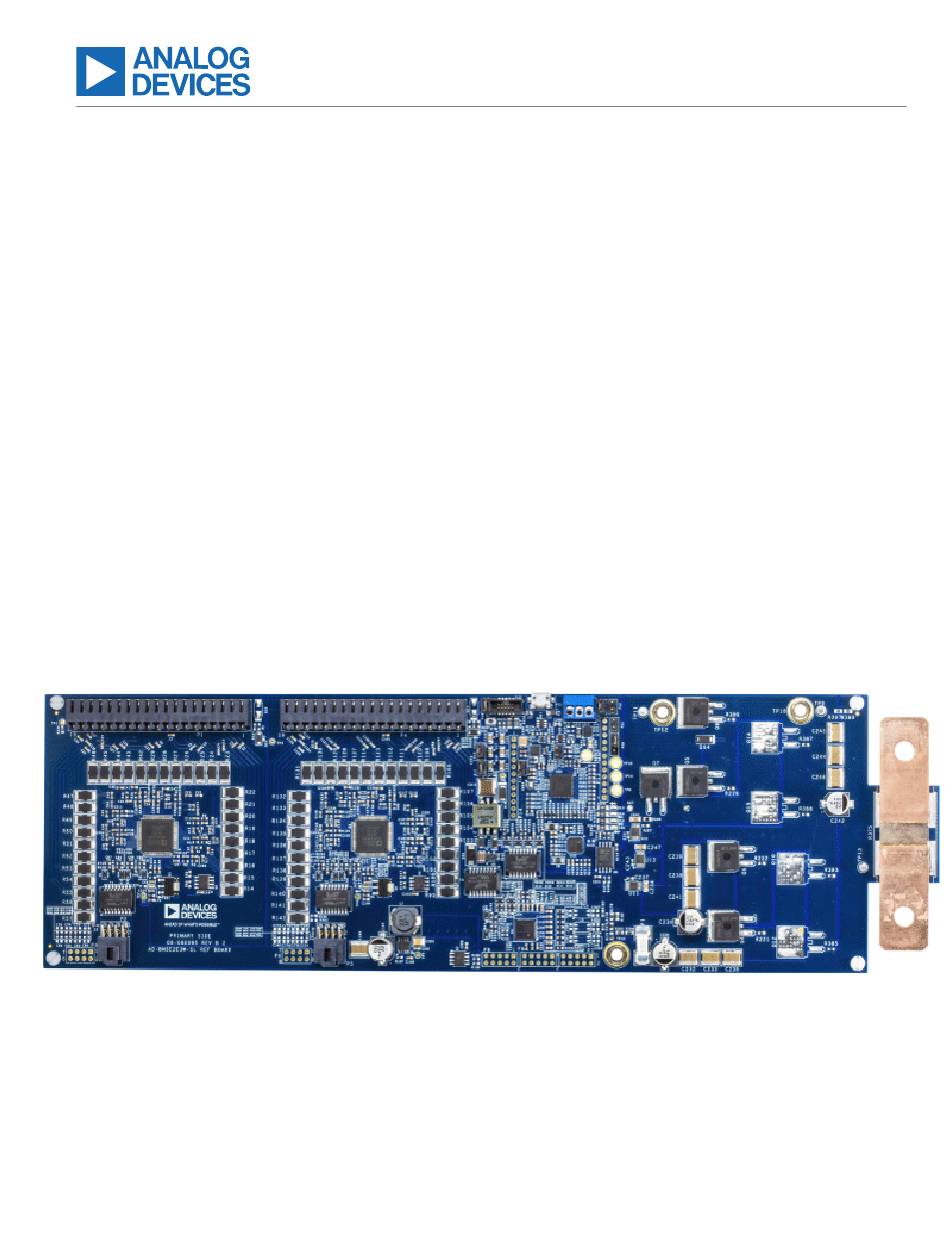

EVALUATION BOARD PHOTOGRAPH

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
User Guide | AD-BMSE2E3W-SL
AD-BMSE2E3W-SL Quick Start Guide
►
►
►
►

EQUIPMENT NEEDED

1x AD-BMSE2E3W-SL (Main Board)
►
2x Cell Connector Block
►
2x DC2472A Battery Emulator
►
1x MAX32625PICO Programmer with 10-Pin SWD Cable
►
4x USB Type B Cable
►
1x BU-P1166-12-2 (Red) Banana Plug to Alligator Clip
►
1x BU-P1166-12-0 (Black) Banana Plug to Alligator Clip
►
Host PC Running Microsoft Windows 10
►

GENERAL DESCRIPTION

The AD-BMSE2E3W-SL is a complete BMS reference design
suitable for light electric vehicles with a voltage range of 72 V
to 96 V and a current capacity up to 100 A. This integrated
single-board system features the ADBMS6830 16-cell monitor,
ADBMS2950 pack current monitor, ADBMS6822 isoSPI transceiver,
and MAX32690 microcontroller.

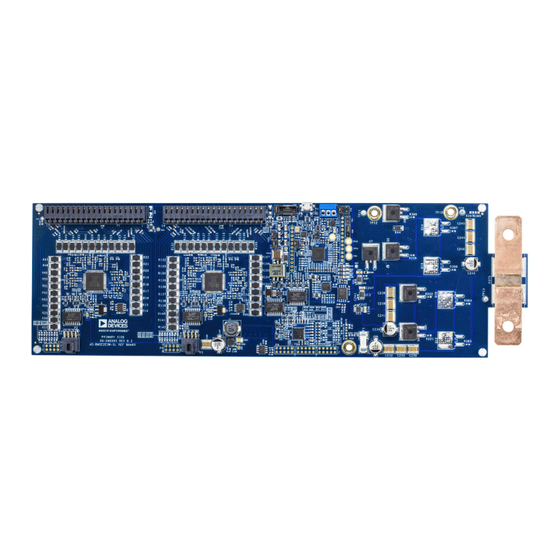

Figure 1. Evaluation Board Photograph
Temperature Monitoring
Cell OV/UV Detection
Cell/GPIO Open-Wire Detection
Cell Balancing
UG-2245
Rev. 0 | 1 of 6
