DIRECT REGISTER WRITE AND READ

It is possible to read and write the content of each register using
the Register R&W tab as shown in the GUI (see Figure 14).
Clicking Read All Registers updates the content of each register
to the GUI. Use the Read/Write a Single Register controls on
the left side of the Register R/W tab of the GUI to initiate a
single register read or write. Enter the register address in the
Register Address box. Click Read to read the binary data, or
click Write to write the binary data. Some registers, such as
Register 0x00 and Register 0x01, are read only registers and
cannot be overwritten.
Click the Save button to save the current parameter setting to a
text file. Click the Load button to reload the existing setting file
from a selected folder.

FUEL GAUGE DATA LOG

In the fuel gauge Data Log tab, the battery voltage and SOC
data update in the Battery SoC/Voltage graph every 1 sec.

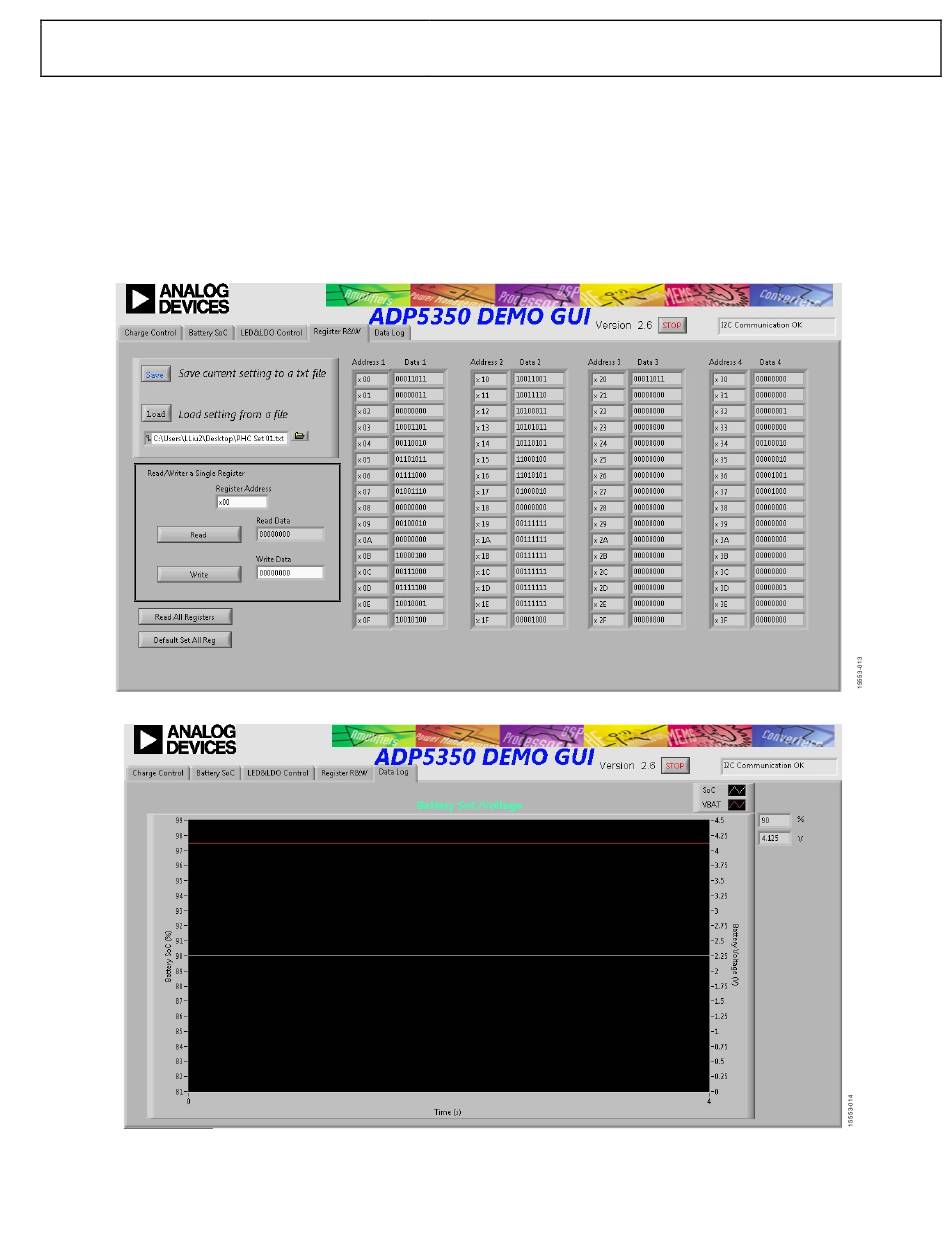

Figure 14. ADP5350 GUI Software, Register R&W Tab
Figure 15. ADP5350 GUI Software, Data Log Tab
