UG-1104

BATTERY SOC SETTINGS

Program the battery state of charge (SOC) settings by adjusting
the voltage and internal battery resistance, which varies with
temperature, in the Battery SoC tab (see Figure 12). Enter all
battery characterization data, and then click the Program SoC
Curve button or Program RBAT button to write all data to the
ADP5350. The GUI then updates the Battery SoC Curve and
the RBAT Temperature Compensation graphs. Other SOC
filter parameters, including the K_RBAT_CHARGE, KRBAT_
SOC, Filter_Charge Limit, Filter_Dischange Limit, and
Filter_Idle Limit options can be selected in this tab as well.

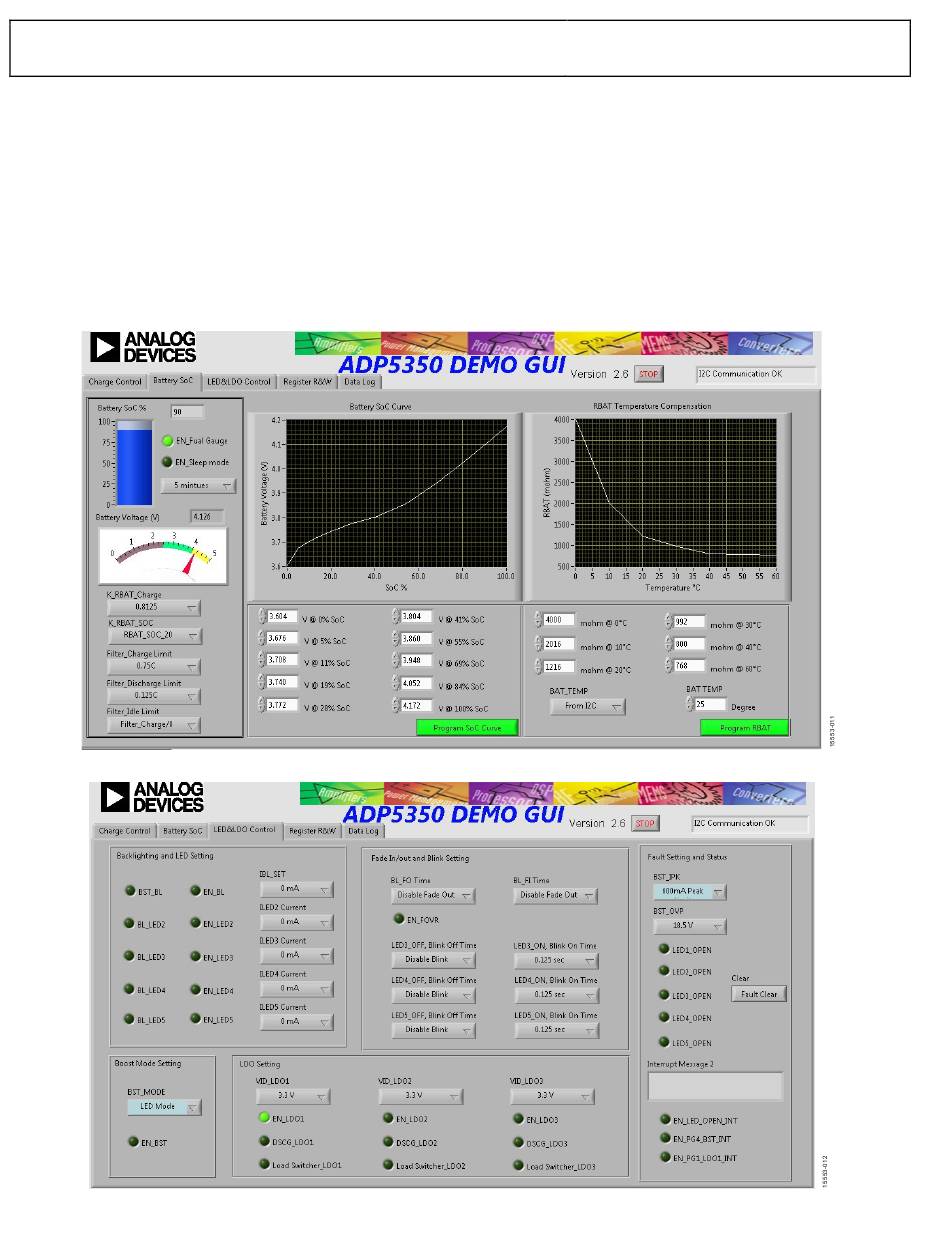

Figure 12. ADP5350 GUI Software, Battery SoC Tab
GUI Software, LED&LDO Control Tab
Figure 13. ADP5350
Rev. A | Page 6 of 17
ADP5350-EVALZ User Guide

LED LIGHTING, BOOST, AND LDO SETTINGS

In the LED&LDO Control tab, program the boost mode
selection, LED lighting functionalities, fade in/out settings,
LDO enable and LDO mode settings, and the interrupt (see
Figure 13). Before enabling the backlight or the individual LED,
the current value must be programmed accordingly. When an
LED open fault occurs, verify that the open fault is cleared on
the evaluation board and then click Fault Clear.
