ADP5350-EVALZ User Guide
UG-1104

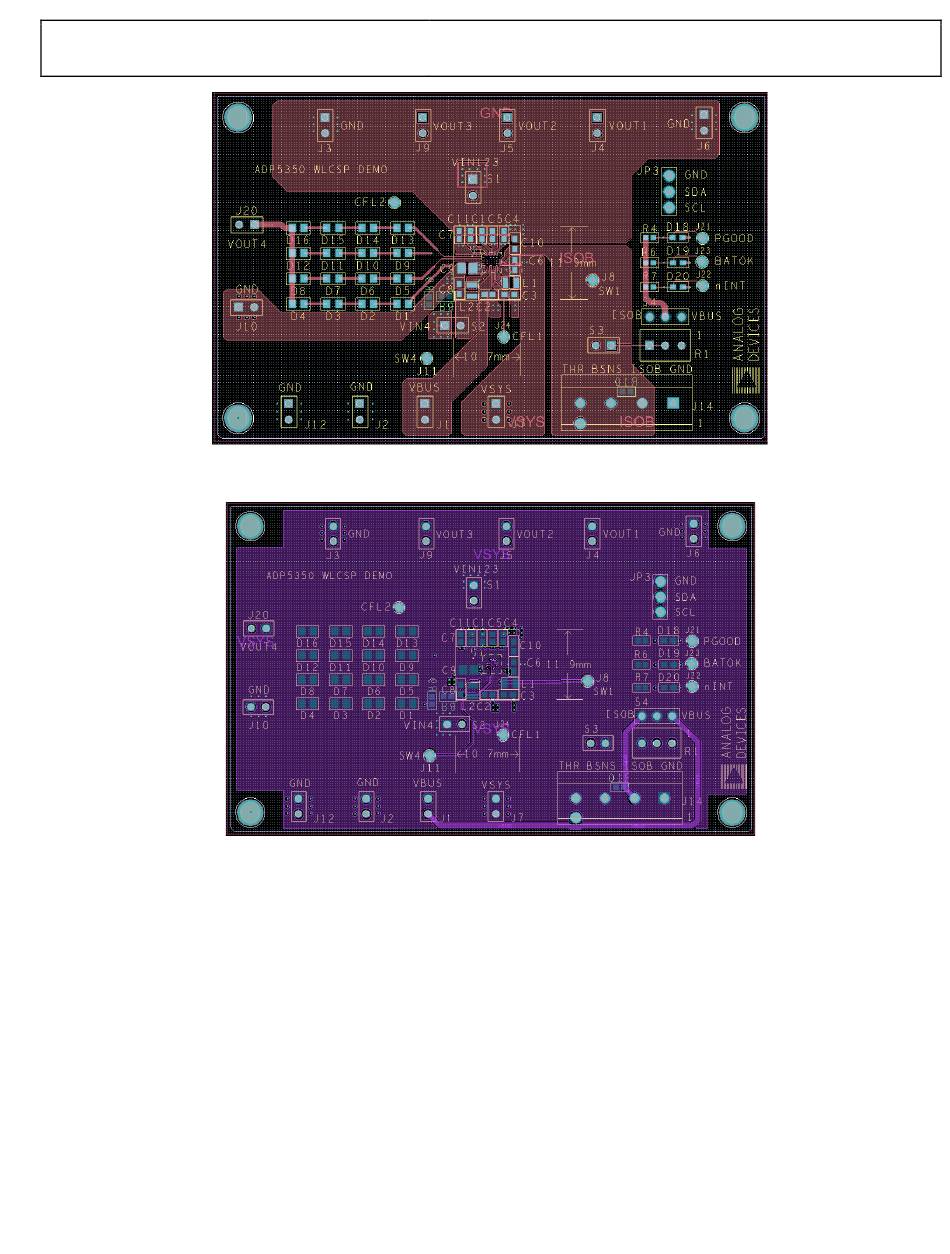

Figure 23. Top Layer, Recommended Layout for the
ADP5350-EVALZ
WLCSP Evaluation Board
Figure 24. Second Layer, Recommended Layout for the
ADP5350-EVALZ
WLCSP Evaluation Board
Rev. A | Page 15 of 17
