ADP5350-EVALZ User Guide

INSTALLING THE SOFTWARE

The ADP5350-EVALZ GUI software allows evaluation of all
functions and features of the program registers.
Before starting the software installation, ensure that the
ADP5350-EVALZ evaluation board is not connected to the USB
port of the PC.

INSTALLING LabVIEW

If the PC already has LabVIEW™ installed, this step is not
needed.
The application software is a compiled LabVIEW program, which
requires LabVIEW 8.5 or later and a run-time engine installed
on the PC. Download the LabVIEW run-time engine from the
National Instruments website. A LabVIEW 8.5 run-time installa-
tion is available on the ADP5350-EVALZ
INSTALLING THE ADP5350
After installation, it may be necessary to reboot the PC to
complete the operation.

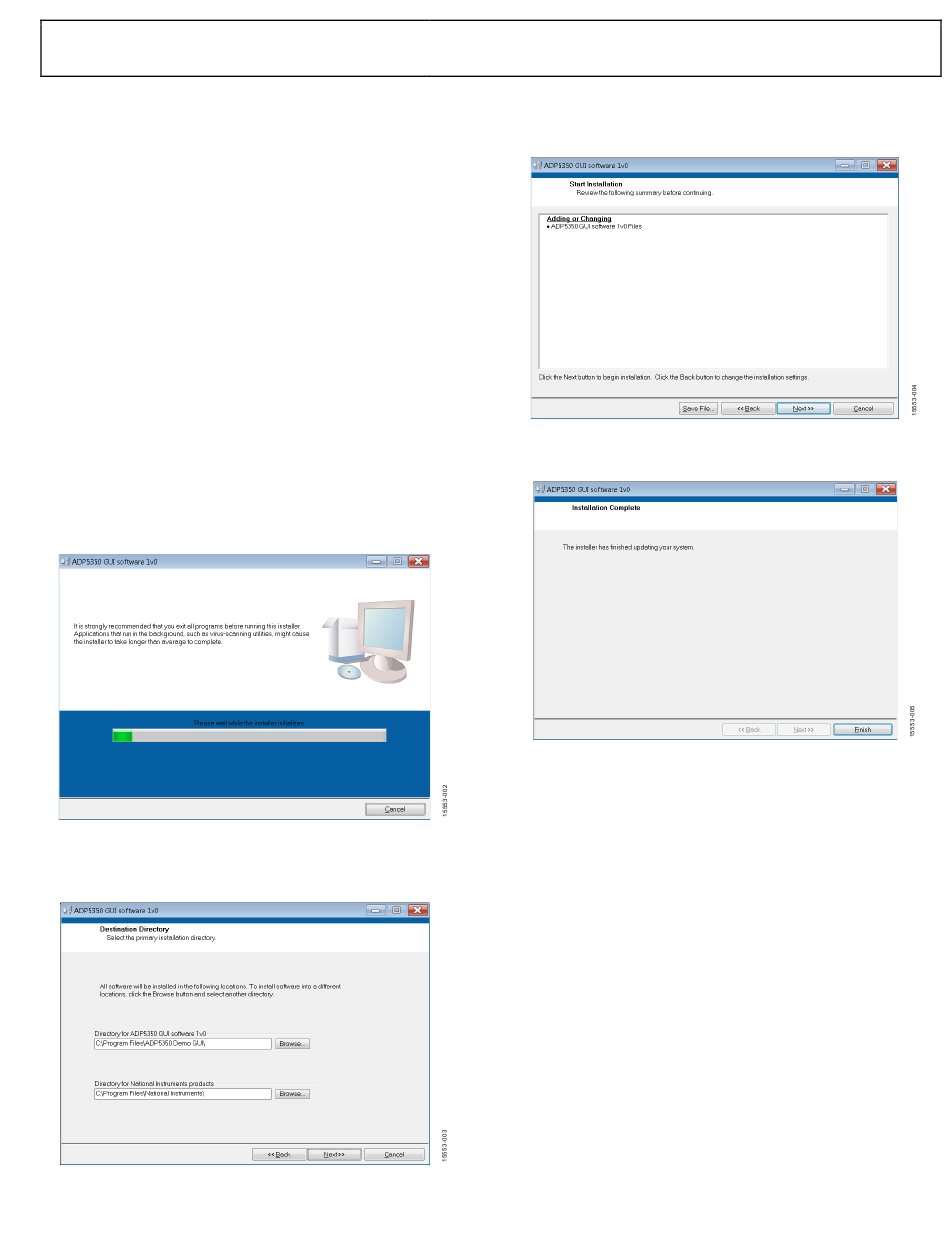

1. Launch the Setup.exe file. The dialog box shown in Figure 3
appears.
Figure 3. ADP5350
2. Click Next to install the files to the default destination folder
or click Browse... to choose a different file (see Figure 4).
Figure 4. Choose Destination Location
installation CD.
GUI SOFTWARE
Evaluation Software Setup
3. Click Next to install the program (see Figure 5).
4. Click Finish to complete the installation (see Figure 6).
Rev. A | Page 3 of 17
Figure 5. Select Program Folder
Figure 6. Installation Complete
UG-1104
