Evaluating the ADAQ4380-4 Quad, 16-Bit, 4 MSPS, Simultaneous Sampling, µModule Data Acquisition Solution

FEATURES

ADAQ4380-4
quad,16-bit, 4 MSPS, µModule
Versatile analog signal conditioning circuitry
On-board LDO and power supply circuits
PC software for control and data analysis of time and frequency
domain
System demonstration platform-compatible
controller board
(EVAL-SDP-CH1Z))

EVALUATION BOARD KIT CONTENTS

EV-ADAQ4380-4FMCZ evaluation board

EQUIPMENT NEEDED

®
PC running Windows
10 or higher
SDP-H1 (EVAL-SDP-CH1Z) controller board
Low noise, precision signal source (such as APX500 series)
Standard USB A to USB mini-B
Band-pass filter suitable for 16-bit testing (optional, value based
on signal frequency)

SOFTWARE NEEDED

ADAQ4380-4
ACE
plug-in
SDP-H1 driver

EVALUATION BOARD PHOTOGRAPH

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
User Guide | EVAL-ADAQ4380-4
®
evaluation board
(SDP-H1, high-speed

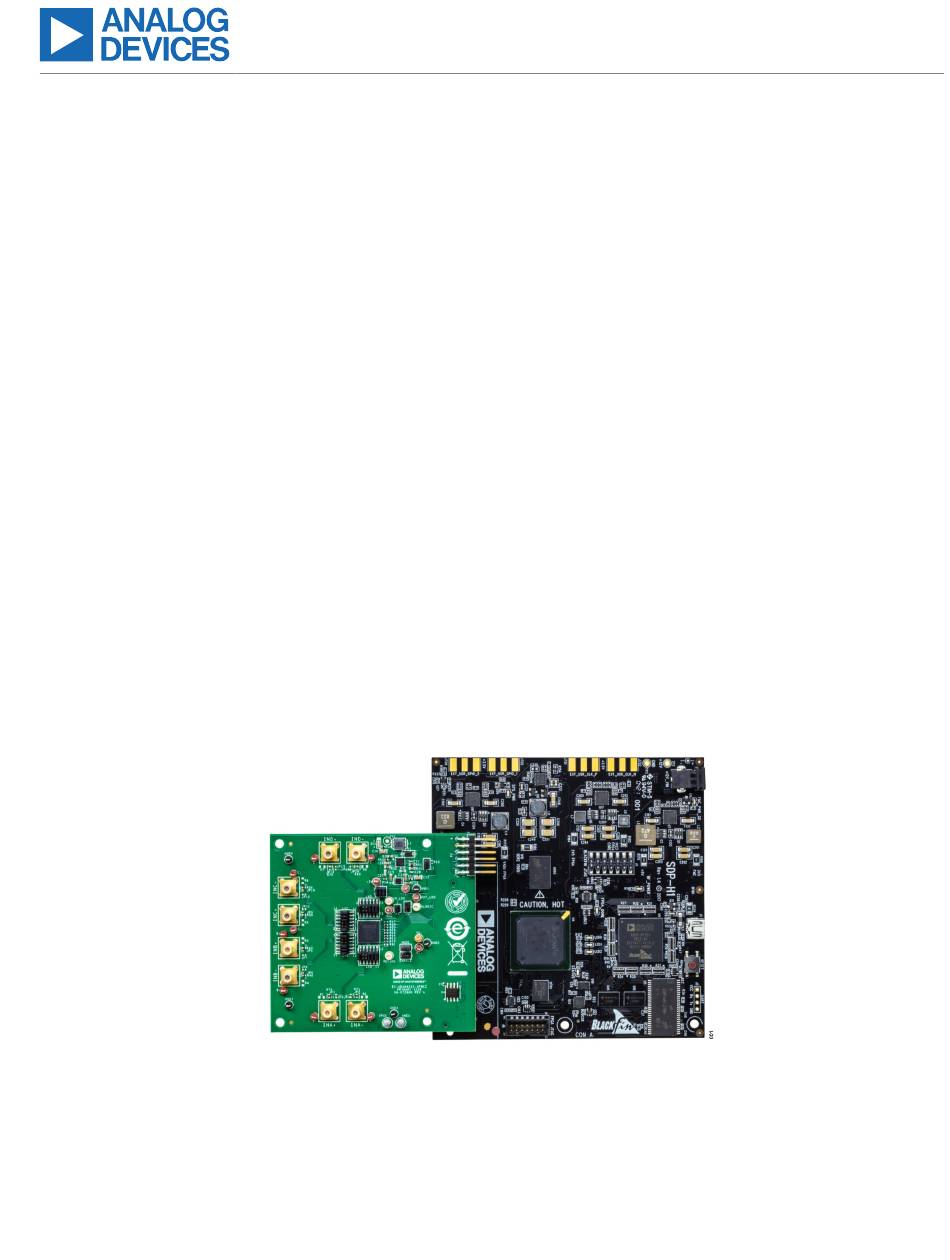

Figure 1. Evaluation Board Photograph

GENERAL DESCRIPTION

The EV-ADAQ4380-4FMCZ evaluation board (see
bles a simple evaluation of the ADAQ4380-4 quad, 16-bit, 4 MSPS,
simultaneous sampling, μModule data acquisition solution.
The evaluation board demonstrates the performance of the
ADAQ4380-4 μModule and is a versatile tool for variety of
applications.
The ADAQ4380-4 μModule combines multiple common signal proc-
essing and conditioning blocks into a single device that includes
a low noise, fully differential analog-to-digital converter (ADC) driv-
ers, a high precision 3.3 V reference chip, low-noise reference
buffer, high resolution, quad, 16-bit, 4 MSPS simultaneous sampling
successive approximation register (SAR) ADC, and all the critical
passive components necessary for optimum performance.
The EV-ADAQ4380-4FMCZ evaluation board interfaces with high-
speed system demonstration platform SDP-H1 (EVAL-SDP-CH1Z)
board through a 160-pin FMC connector, as shown in
Full specifications on the ADAQ4380-4 are available in the
ADAQ4380-4 data sheet available from Analog Devices, Inc., and
must be consulted with this user guide when using the
EV-ADAQ4380-4FMCZ evaluation board. For the current
schematic, layouts, and bill of materials, refer to the
EVAL-ADAQ4380-4
product page.
UG-2224
Figure
1) ena-
Figure
2.
