Analog Devices EVAL-AD4858 User Manual

Evaluating 8-channel simultaneous sampling, 20-bit 1 msps das
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Evaluating the AD4858 8-Channel Simultaneous Sampling, 20-Bit 1 MSPS DAS

FEATURES

Full featured evaluation board for the
►
8 input channels available through SMA connectors
►
On-board reference circuit and power supplies
►
Standalone capability through FMC connector and/or test points
►
PC software for control and data analysis of the time and fre-
►
quency domain
ZedBoard-compatible
►
Compatible with other FMC controller boards
►

EQUIPMENT NEEDED

®
PC running Windows
10 operating system or higher
►
Digilent ZedBoard with 12 V wall adapter power supply
►
Precision signal source
►
SMA cables (inputs to evaluation board)
►
USB cable
►

SOFTWARE NEEDED

Analysis | Control | Evaluation (ACE) Software
►
AD4858
ACE plugin
from plug-in manager
►

EVALUATION BOARD KIT CONTENTS

EVAL-AD4858FMCZ evaluation board
►
Micro-SD memory card (with adapter) containing system board
►
boot software and Linux OS

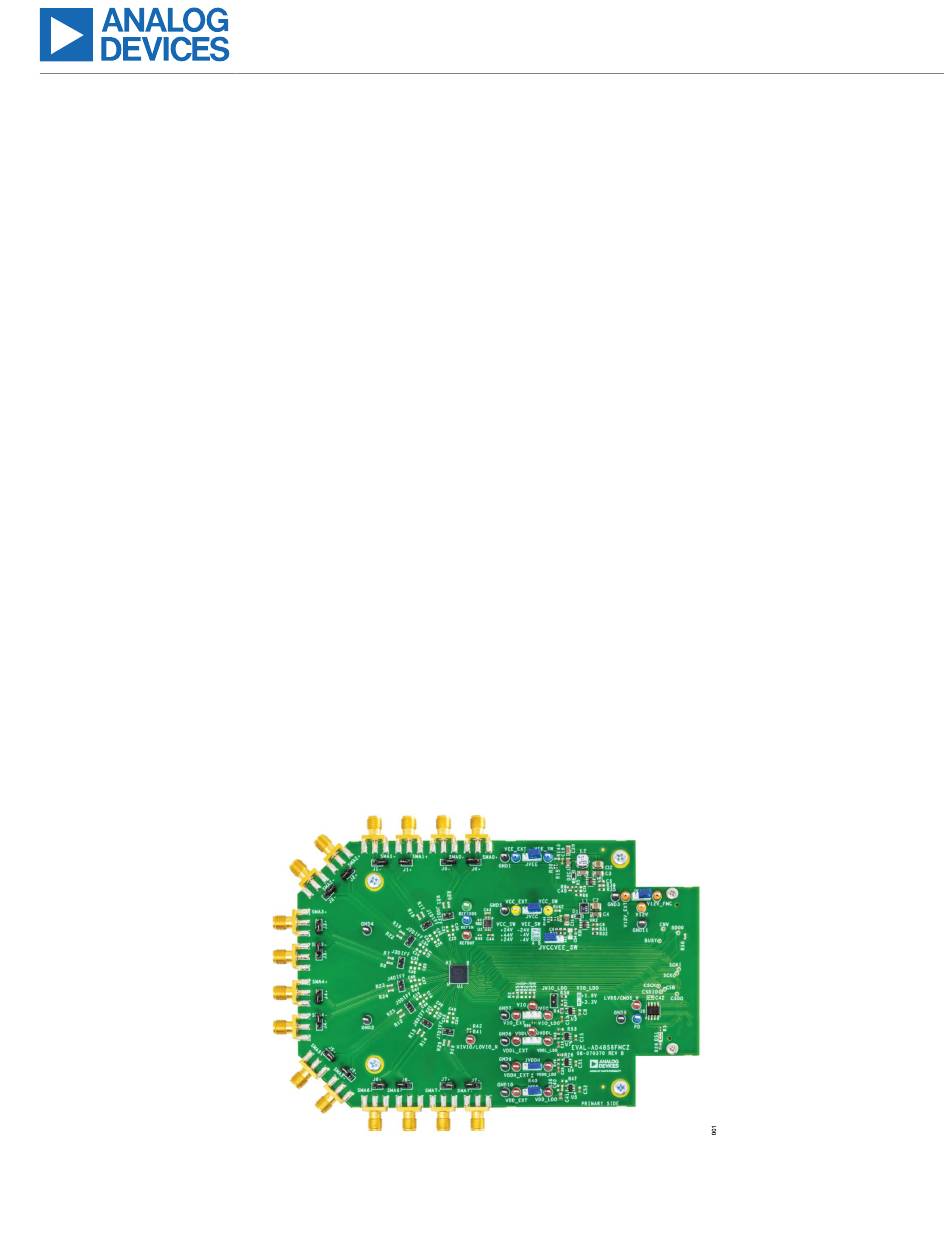

EVALUATION BOARD PHOTOGRAPH

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
AD4858

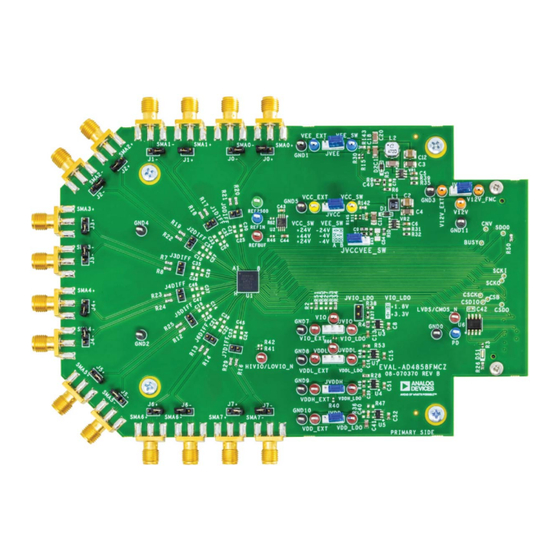

Figure 1. Evaluation Board Photograph
User Guide | EVAL-AD4858

GENERAL DESCRIPTION

The EVAL-AD4858FMCZ is designed to demonstrate the perform-
ance of the AD4858 and to provide access to many included
configuration options that are accessed via a simple ACE plug-in
graphical user interface (GUI). The AD4858 is a fully buffered,
8-channel simultaneous sampling, 20-bit, 1 MSPS data acquisition
system (DAS) with differential, wide common-mode range inputs.
The EVAL-AD4858FMCZ on-board components include the follow-
ing:
The
LTC6655
high precision, low drift, 4.096 V voltage reference
►
(not used by default)
The LT1761, low noise, 1.8 V, 2.5 V, and 5 V low dropout (LDO)
►
regulators
The
LT8330
low quiescent current (I
►
For full details on the AD4858, see the AD4858 data sheet, which
must be consulted in conjunction with this user guide when using
the EVAL-AD4858FMCZ evaluation board.
This evaluation board can also be used to evaluate the perform-
ance of the AD4856.
UG-2142
) boost converter
Q
Rev. A | 1 of 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAL-AD4858 and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices EVAL-AD4858

Summary of Contents for Analog Devices EVAL-AD4858

  • Page 1: Features

    User Guide | EVAL-AD4858 UG-2142 Evaluating the AD4858 8-Channel Simultaneous Sampling, 20-Bit 1 MSPS DAS FEATURES GENERAL DESCRIPTION Full featured evaluation board for the AD4858 The EVAL-AD4858FMCZ is designed to demonstrate the perform- ► ance of the AD4858 and to provide access to many included 8 input channels available through SMA connectors ►...

  • Page 2: Table Of Contents

    User Guide EVAL-AD4858 TABLE OF CONTENTS Features..............1 Evaluation Board Hardware........5 Equipment Needed..........1 Hardware Link Options........5 Software Needed...........1 Connectors and Sockets........7 Evaluation Board Kit Contents.......1 Power Supplies..........7 General Description..........1 Reference Circuit..........7 Evaluation Board Photograph........1 Evaluation Board Schematics and Artwork... 8 Quick Start Guide..........

  • Page 3: Quick Start Guide

    8. The red LD7 LED blinks approximately 20 sec to 30 sec later, indicating that the boot process is complete. 9. Launch the ACE Software from the Analog Devices folder in the Windows Start menu. The EVAL-AD4858FMCZ appears in the ACE Start in the Attached Hardware view, as shown in...
  • Page 4 User Guide EVAL-AD4858 QUICK START GUIDE Figure 5. Attached Hardware View analog.com Rev. A | 4 of 11...

  • Page 5: Evaluation Board Hardware

    User Guide EVAL-AD4858 EVALUATION BOARD HARDWARE The AD4858 is a fully buffered, 8-channel simultaneous sampling, HARDWARE LINK OPTIONS 20-bit 1 MSPS DAS with differential, wide common-mode range Table 1 details the link option functions and the default power link inputs. The AD4858 has an on-chip low drift 4.096 V internal options.
  • Page 6 User Guide EVAL-AD4858 EVALUATION BOARD HARDWARE Table 1. Jumper Details with the Factory Default Settings (Continued) Link Default Position Function JVIO Not inserted The JVIO link selects the V pin supply source. If not inserted, the V pin is taken from the ZedBoard (default).

  • Page 7: Connectors And Sockets

    User Guide EVAL-AD4858 EVALUATION BOARD HARDWARE CONNECTORS AND SOCKETS REFERENCE CIRCUIT The connectors and sockets on the EVAL-AD4858FMCZ are out- By default, the AD4858 in the EVAL-AD4858FMCZ uses the in- lined in Table ternal low noise, low drift (10 ppm/°C maximum), temperature compensated band-gap reference that is factory trimmed to 4.096 V...

  • Page 8: Evaluation Board Schematics And Artwork

    User Guide EVAL-AD4858 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 6. Analog Inputs Schematic analog.com Rev. A | 8 of 11...
  • Page 9 User Guide EVAL-AD4858 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 7. Power Solution Schematic analog.com Rev. A | 9 of 11...
  • Page 10 User Guide EVAL-AD4858 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 8. FMC Connection Schematic analog.com Rev. A | 10 of 11...
  • Page 11 Evaluation Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY.
