AD9776A/AD9778A/AD9779A

OUTLINE DIMENSIONS

NOTES
1. CENTER FIGURES ARE TYPICAL UNLESS OTHERWISE NOTED.
2. THE PACKAGE HAS A CONDUCTIVE HEAT SLUG TO HELP DISSIPATE HEAT AND ENSURE RELIABLE OPERATION OF

ORDERING GUIDE

Model
1
AD9776ABSVZ
1
AD9776ABSVZRL
1
AD9778ABSVZ
1
AD9778ABSVZRL
1
AD9779ABSVZ
1
AD9779ABSVZRL
1
AD9776A-EBZ
1
AD9778A-EBZ
1
AD9779A-EBZ
1
Z = RoHS Compliant Part.
©2007–2008 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
Downloaded from Elcodis.com electronic components distributor
16.00 BSC SQ
1.20
0.75
MAX
0.60
0.45
100
1
SEATING
PIN 1
PLANE
TOP VIEW
(PINS DOWN)
25
26
0.20
0.09
7°
3.5°
0°
0.50 BSC
COMPLIANT TO JEDEC STANDARDS MS-026-AED-HD
THE DEVICE OVER THE FULL INDUSTRIAL TEMPERATURE RANGE. THE SLUG IS EXPOSED ON THE BOTTOM OF
THE PACKAGE AND ELECTRICALLY CONNECTED TO CHIP GROUND. IT IS RECOMMENDED THAT NO PCB SIGNAL
TRACES OR VIAS BE LOCATED UNDER THE PACKAGE THAT COULD COME IN CONTACT WITH THE CONDUCTIVE
SLUG. ATTACHING THE SLUG TO A GROUND PLANE WILL REDUCE THE JUNCTION TEMPERATURE OF THE
DEVICE WHICH MAY BE BENEFICIAL IN HIGH TEMPERATURE ENVIRONMENTS.

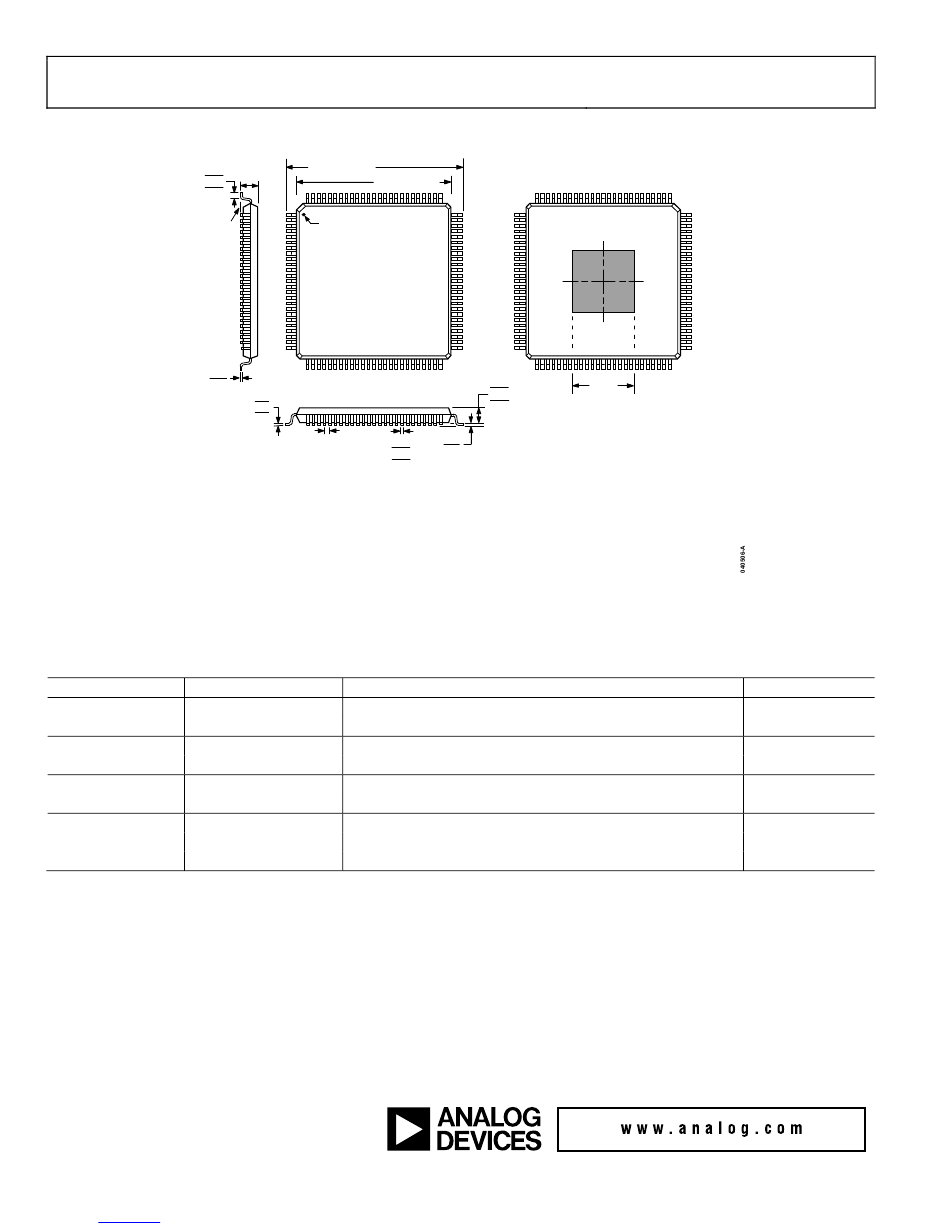

Figure 113. 100-Lead Thin Quad Flat Package, Exposed Pad [TQFP_EP]
