EVALUATION BOARD OPERATION

The AD9776A/AD9778A/AD9779A evaluation board is
designed to optimize the DAC performance and the speed of
the digital interface, yet remains user friendly. To operate the
board, the user needs a power source, a clock source, and a
digital data source. The user also needs a spectrum analyzer
or an oscilloscope to look at the DAC output. The diagram in
Downloaded from Elcodis.com electronic components distributor
CLOCK
GENERATOR
ADAPTER
CABLES
CLKIN
DIGITAL
PATTERN
GENERATOR
EVALUATION
CLOCK IN
DATACLK OUT

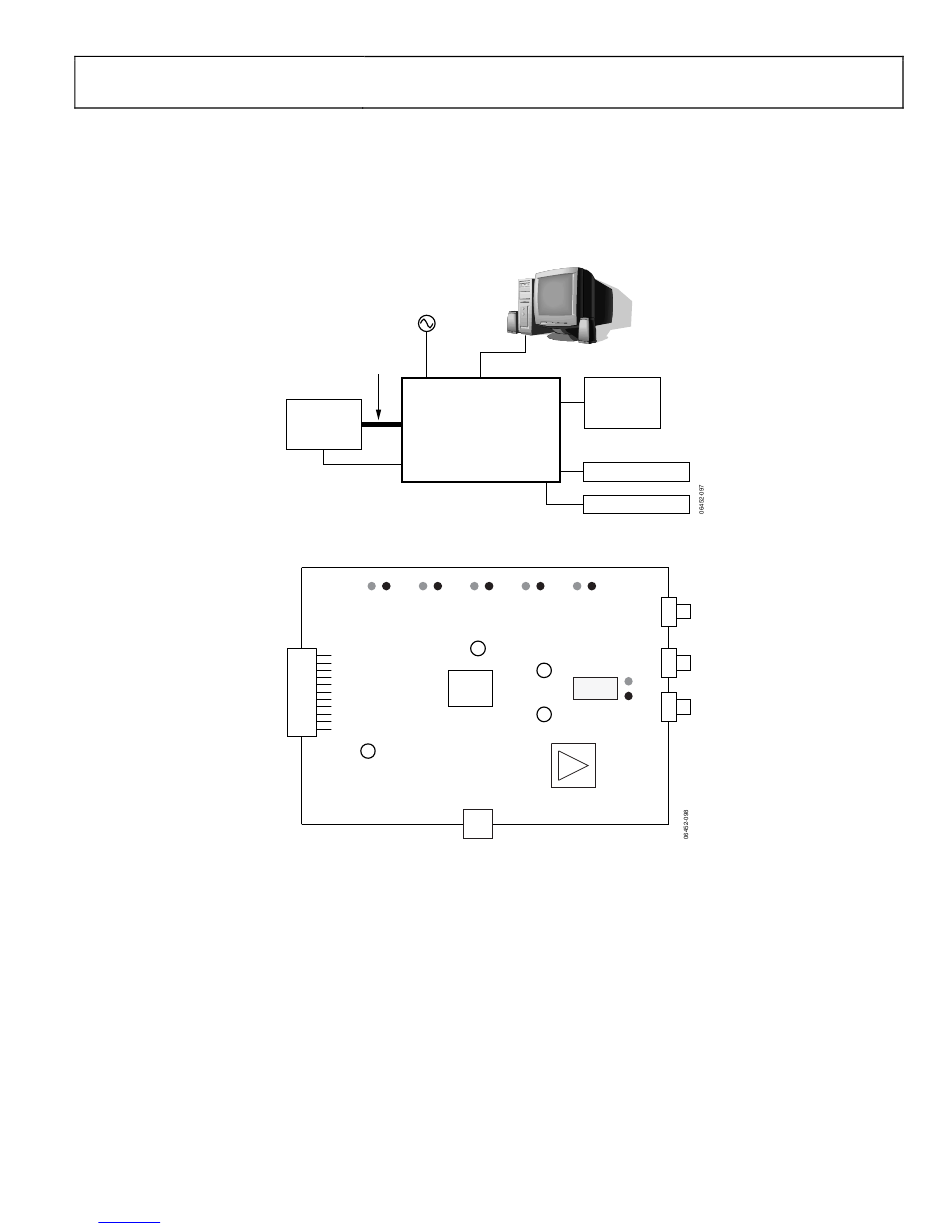

Figure 101. Typical Test Setup
AUX33
DVDD18
P4 DIGITAL INPUT CONNECTOR
AD9779A
S7 DCLKOUT
Figure 102. AD9776A/AD9778A/AD9779A Evaluation Board Showing All Connections
Rev. A | Page 49 of 60
AD9776A/AD9778A/AD9779A
Figure 101 illustrates the test setup. A sine or square wave clock
works well as a clock source. The dc offset on the clock is not a
problem, because the clock is ac-coupled on the evaluation board
before the REFCLK inputs. All necessary connections to the
evaluation board are shown in more detail in Figure 102.
SPI PORT
SPECTRUM
AD9776A/
ANALYZER
AD9778A/
AD9779A
BOARD
1.8V POWER SUPPLY
3.3V POWER SUPPLY
DVDD33 CVDD18 AVDD33
J2
5V SUPPLY
MODULATOR
J1 CLOCK IN
OUTPUT
JP4
S5 OUTPUT 1
JP15
JP8
JP14
ADL537x
JP3
JP16
JP2
S6 OUTPUT 2
JP17
LOCAL OSC
INPUT
ANALOG
DEVICES
AD9776A/
AD9788A/
SPI PORT
AD9779A
+5V
GND
