Analog Devices AD9776A Manual page 53

Dual 12-/14-/16-bit, 1 gsps, digital-to-analog converters
Hide thumbs Also See for AD9776A:
Table of Contents

Advertisement

AD9776A/AD9778A/AD9779A
CR2
VAL
ACASE
RC 0 60 3
RC 0 60 3
ACA
S E
ACA
S E
VOLT
VOLT

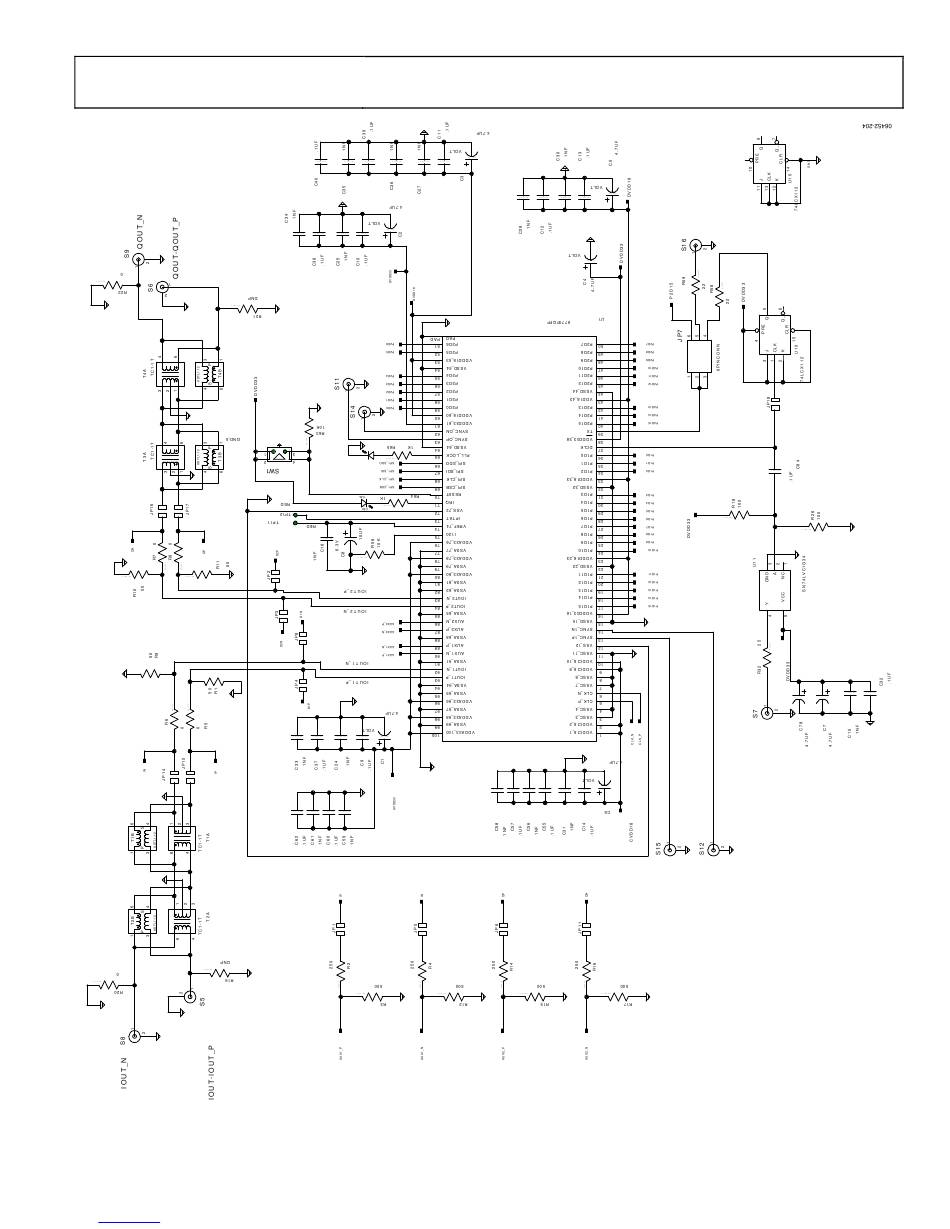

Figure 106. Evaluation Board, Rev. A, Analog and Digital Interfaces to TxDAC
Rev. A | Page 53 of 60
