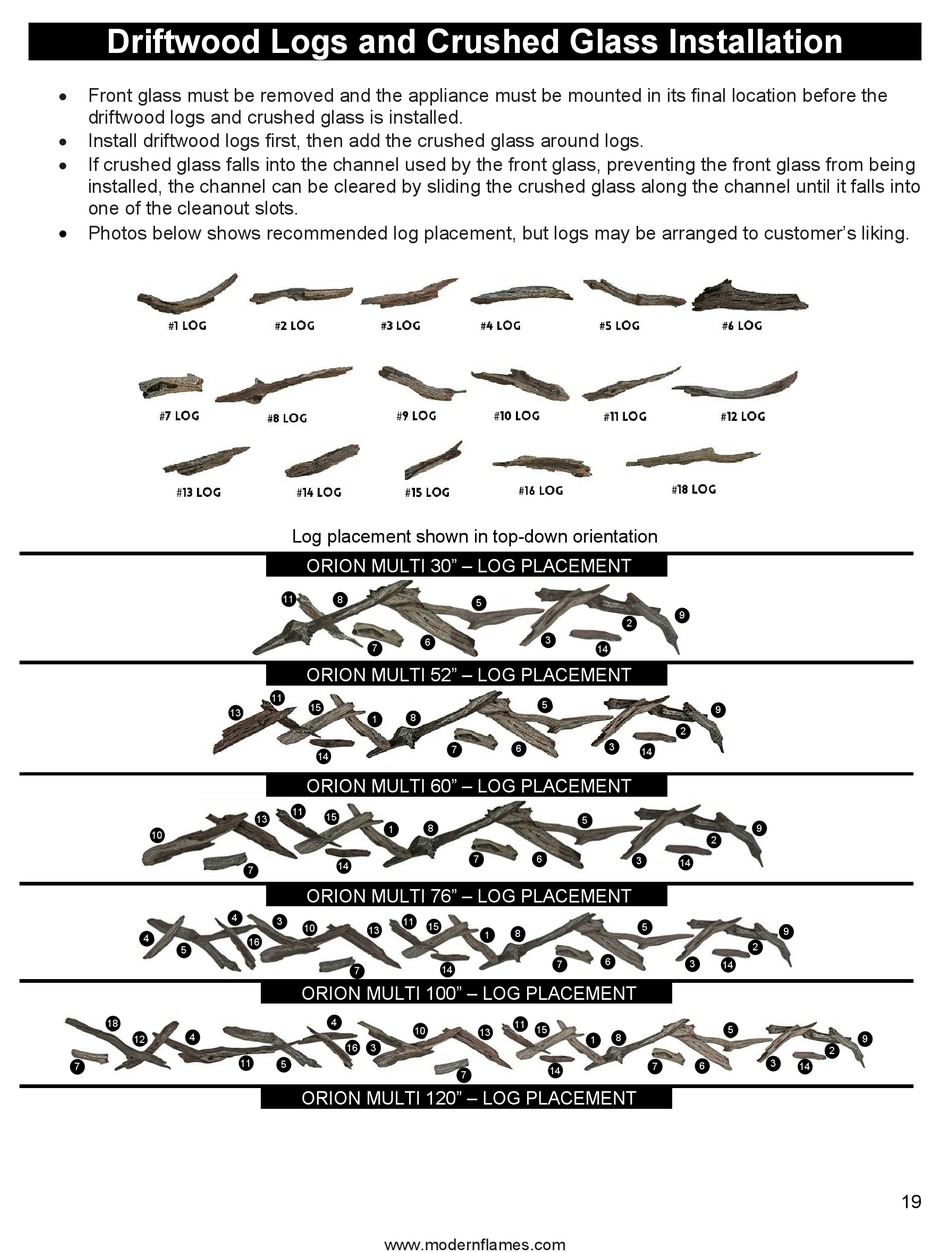

Driftwood Logs and Crushed Glass Installation

 Front glass must be removed and the appliance must be mounted in its final location before the
driftwood logs and crushed glass is installed.
 Install driftwood logs first, then add the crushed glass around logs.
 If crushed glass falls into the channel used by the front glass, preventing the front glass from being
installed, the channel can be cleared by sliding the crushed glass along the channel until it falls into
one of the cleanout slots.
 Photos below shows recommended log placement, but logs may be arranged to customer's liking.
13
v
10
4
4
5
18
4
12
7
Log placement shown in top-down orientation
ORION MULTI 30" – LOG PLACEMENT
11 8
7
ORION MULTI 52" – LOG PLACEMENT
11
15
8
1
14
ORION MULTI 60" – LOG PLACEMENT
11
15
13
1
14
7
ORION MULTI 76" – LOG PLACEMENT
3 11
10
13
16
7
ORION MULTI 100" – LOG PLACEMENT
4
10
16 3
11
5
ORION MULTI 120" – LOG PLACEMENT
