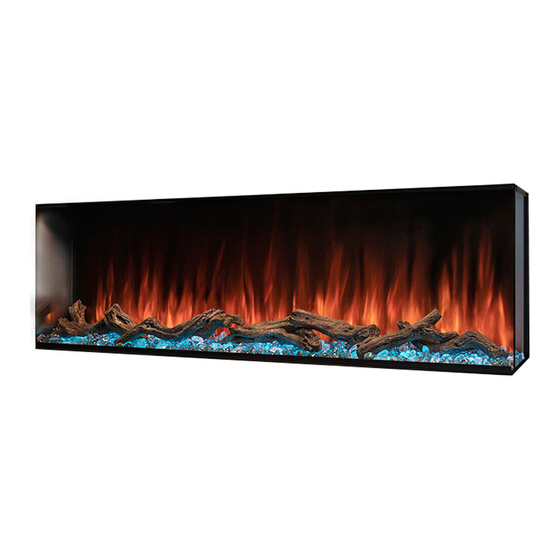

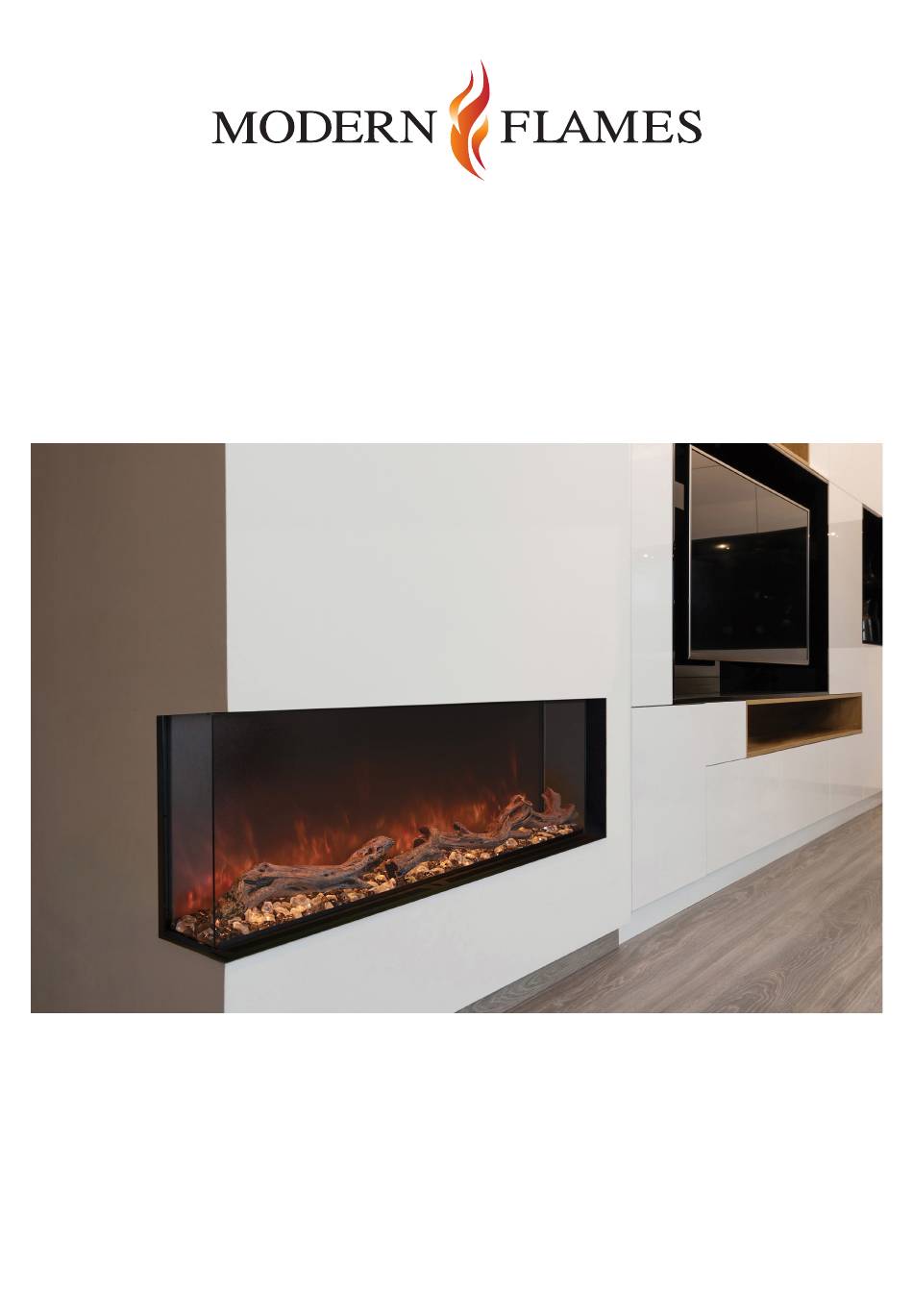

- Page 1 Landscape Pro Multiview Series LPM-4216 • LPM-5416 • LPM-6616 • LPM-7816 INSTALLATION/OWNERS MANUAL FOR USE IN UNITED STATES AND CANADA SERIAL NUMBER:________________________________________...
- Page 2 USER INSTRUCTIONS LANDSCAPE PRO SERIES MULTIVIEW LPM - 4216 • LPM - 5416 • LPM - 6616 • LPM - 7816 SAFETY INFORMATION AND OPERATIONS MANUAL Read these instructions completely before beginning installation. Failure to follow them could cause a heater malfunction resulting in serious injury and/or property damage. WARNING: All electric heaters have hot and arcing or sparking parts inside.
-
Page 3: Table Of Contents
USER INSTRUCTIONS TABLE OF CONTENTS Important Instructions Service Parts Power Data Troubleshooting Product Guide Frequently Asked Questions Box Contents Cleaning and Maintenance Instructions Installation Wiring Diagram Operation IMPORTANT INSTRUCTIONS When using electrical heaters, basic 1. Read all instructions before installing or precautions should always be followed to using this heater. -
Page 4: Power Data
USER INSTRUCTIONS POWER DATA LPM-4216 LPM-5416 LPM-6616 LPM-7816 AC 120V 60Hz 14 AC 120V 60Hz 14 AC 120V 60Hz 14 AC 120V 60Hz 14 Volts/HZ Amps Amps Amps Amps Amps Optional AC 240V Optional AC 240V Optional AC 240V Optional AC 240V 60Hz 14 Amps 60Hz 14 Amps 60Hz 14 Amps... -
Page 5: Box Contents
INSTALLATION BOX CONTENTS 1 Fire Unit 1 Remote 4 L-Metal Mounting 2 Side Covers Brackets 2 Side Glass Pieces 1 Front Glass 2 Suction Cups Clear Acrylic Stones Smoke Acrylic Canyon Driftwood Crystals Logs 1 Owner's Manual... -
Page 6: Installation
INSTALLATION INSTALLATION WARNING: If the information in these CAUTION: Keep combustible materials, instructions is not followed exactly, a fire such as furniture, pillows, bedding, or explosion may result causing property papers, clothes and curtains at least 3 damage, personal injury or death. feet (0.9m) from the front of the heater and keep them away from the sides and rear. - Page 7 INSTALLATION Model LPM-4216 44 1/4” 25 1/4” 12” LPM-5416 56 1/4” 25 1/4” 12” LPM-6616 68 1/4” 25 1/4” 12” LPM-7816 80 1/4” 25 1/4” 12” 1. Prepare the framed opening according to the chart above. Provide a dedicated flexible 15 amp 120 volt circuit for hard wire installation.
- Page 8 INSTALLATION Fully recessed installation - 1 side 1. Follow steps 1 & 2 from the 3 sided installation instructions. 2. Remove the corresponding drywall stops according to your installation (in the example, the drywall stops on the left end would be removed.) 3.
- Page 9 INSTALLATION Half recessed installation 1. This installation is optimized for a 2x4 framed wall. Prepare the framed opening according to the height and width of the chart on page 7. Provide a dedicated flexible 15 amp 120 volt circuit for hard wire installation. 2.
- Page 10 INSTALLATION Floating cabinet installation Follow the directions included with the Floating Cabinet Accessory Kit. Slide-in cabinet installation Follow the directions included with the Slide-in Cabinet Accessory Kit. Installing Optional Wall Mounted Touch Control 1. Remove glass face (attached with magnets) from touch assembly. 2.
-
Page 11: Operation
Power when it was cycled off. If the fireplace is on, this button will act as a reset and bring all colors back to the default Modern Flames Reset orange/yellow. This will cycle the heater between high, low and off. -
Page 12: Service Parts
MAINTENANCE SERVICE PARTS ITEM PHOTO DESCRIPTION PRINTED CIRCUIT BOARD CONTROLS LOW MF-PRO-PCB VOLTAGE AND HIGH VOLTAGE FUNCTIONS AND TRANSFORMER WIFI MF-PRO-WIFI WIFI BOARD MF-PRO-HF HEATER FAN 120 V MF-PRO-PTC PTC HEATER 120/240 V 1500/3000 WATTS MFSM120 SPINDLE MOTOR 120 V 50-60 HZ MF-PRO-RC PRO SERIES RF REMOTE CONTROL OPTIONAL... - Page 13 MAINTENANCE SERVICE PARTS ITEM PHOTO DESCRIPTION MF-PRO-PIB POWER INDICATOR BOARD MF-PRO-NTC THERMOSTAT SENSOR MF-LPM-SG-C SIDE GLASS CLEAR MF-LPM-SG-B SIDE GLASS BLACK MF-LPM-F/LED-42 MF-LPM-F/LED-54 RGB FLAME LED BAR SET MF-LPM-F/LED-66 MF-LPM-F/LED-78 MF-LPM-EB/DL-42 MF-LPM-EB/DL-54 RGB EMBER BED/DOWNLIGHT LED STRIP MF-LPM-EB/DL-66 MF-LPM-EB/DL-78 MF-LPM-SR-42 MF-LPM-SR-54 SPINDLE ROD FOR FLAME AND EMBER BED MF-LPM-SR-66...
-
Page 14: Troubleshooting
MAINTENANCE TROUBLESHOOTING Problem Possible Cause Corrective Action A. Breaker tripped or circuit has A. Reset breaker, test circuit for no power power B. Turn power off at the main B. Internal component is frozen breaker for 20 seconds. Turn and needs to be reset Nothing comes on (touch screen, power back on. -
Page 15: Frequently Asked Questions
MAINTENANCE Problem Possible Cause Corrective Action A. Disconnect unit from power A. Wiring for motor is loose source and inspect for loose Fireplace lights up but there is connections from motor no flame image or flame image frozen B. Motor is defective B. -
Page 16: Cleaning And Maintenance Instructions
MAINTENANCE CLEANING AND MAINTENANCE INSTRUCTIONS There is very little maintenance involved with your electric fireplace. Please follow the few points below: • On a semi-annual basis unplug the machine from it’s power source, wait for the heating element to cool and dust the fire unit with a dry cloth. Be careful not to brush any wires that may be exposed as you do this. - Page 17 MAINTENANCE NOTES...
- Page 18 MAINTENANCE NOTES...
- Page 19 MAINTENANCE NOTES...
- Page 20 ©2019 www.modernflames.com Please dispose of properly.
