Wall Mounted Installation - Modern Flames OR30-MULTI-INT Owner's Manual

Due to different materials used on different walls, it is highly recommended for
you to consult with your local builder before you install this electric fireplace.
NOTE: A dedicated 13 Amp (EU) or 10 Amp (AU/NZ) breaker is required.
Select a location that is not prone to moisture and is located at least 36" (914mm) away from

combustible materials such as curtain drapes, furniture, bedding, paper, etc.
Have two people hold the appliance against the wall to determine the final location.

 Place the unit down on a soft, non-abrasive surface.
Remove the wall bracket from the back of the unit by removing the screws (Fig. 4-1). Set

screws aside. For best results, keep the side skirts installed onto the fireplace.
After you have selected a suitable location for wall mounting, locate the studs on the wall. You

must be able to secure to a minimum of 2 studs for proper installation of the bracket.
FAILURE TO DO SO CAN RESULT IN PERSONAL INJURY
Using the wall bracket as a guide, mark the mounting hole locations.

This bracket MUST have the hooks facing upward and be level (Fig. 4-2).

 Additional support is provided by using the included wall anchors (B) between the studs.
Additional wall anchors must be installed prior to the wall bracket being mounted.

i. To install additional wall anchors, pre-drill (optional) all locations with a 1/8" drill bit.
ii. Install the wall anchors with a Philips tip screwdriver.
 Install the wall bracket to the studs using #8 – 1-5/8" (A) screws and to the wall anchors with a
#8 – 1" screws (C).

Wall Mounted Installation

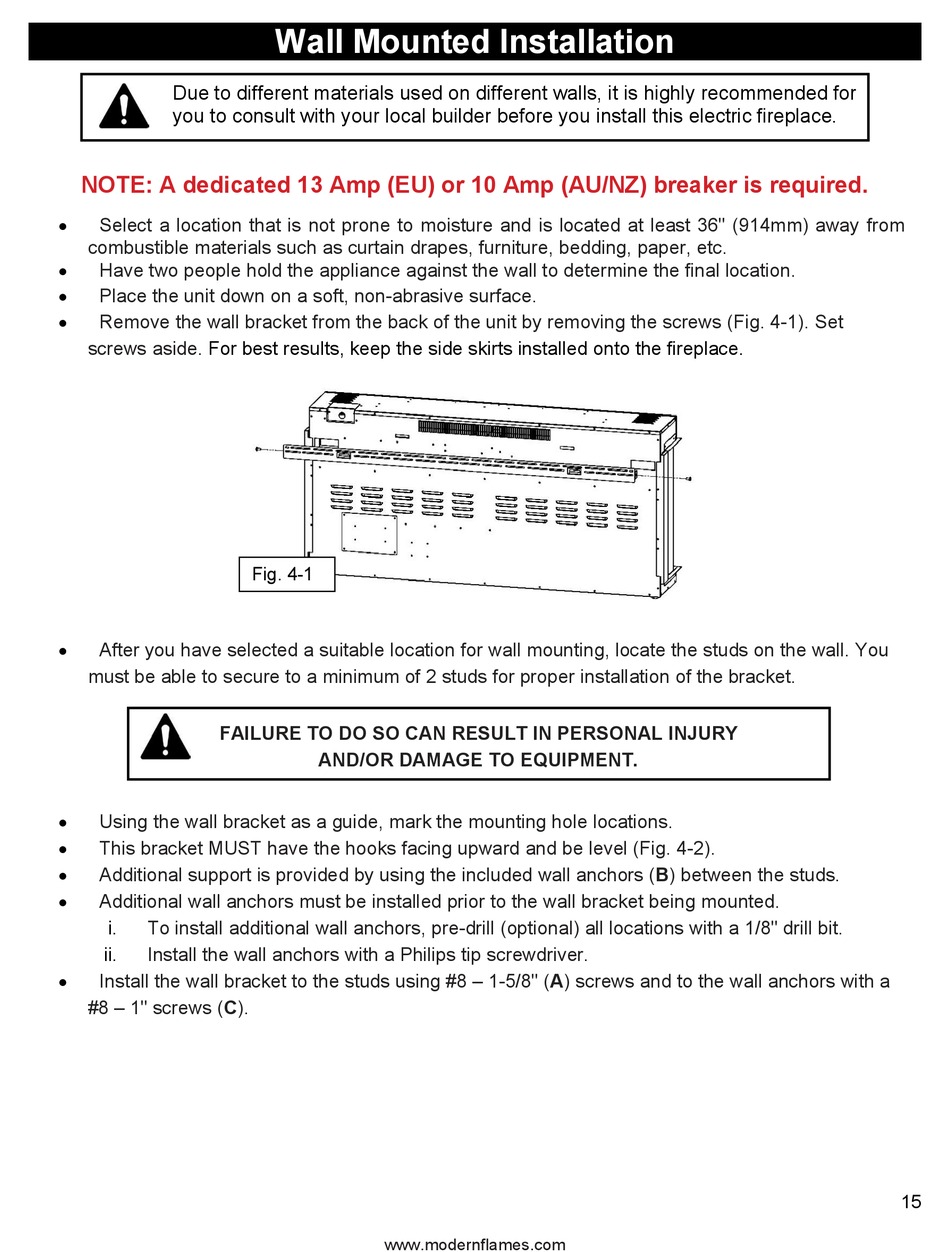

Fig. 4-1
AND/OR DAMAGE TO EQUIPMENT.
