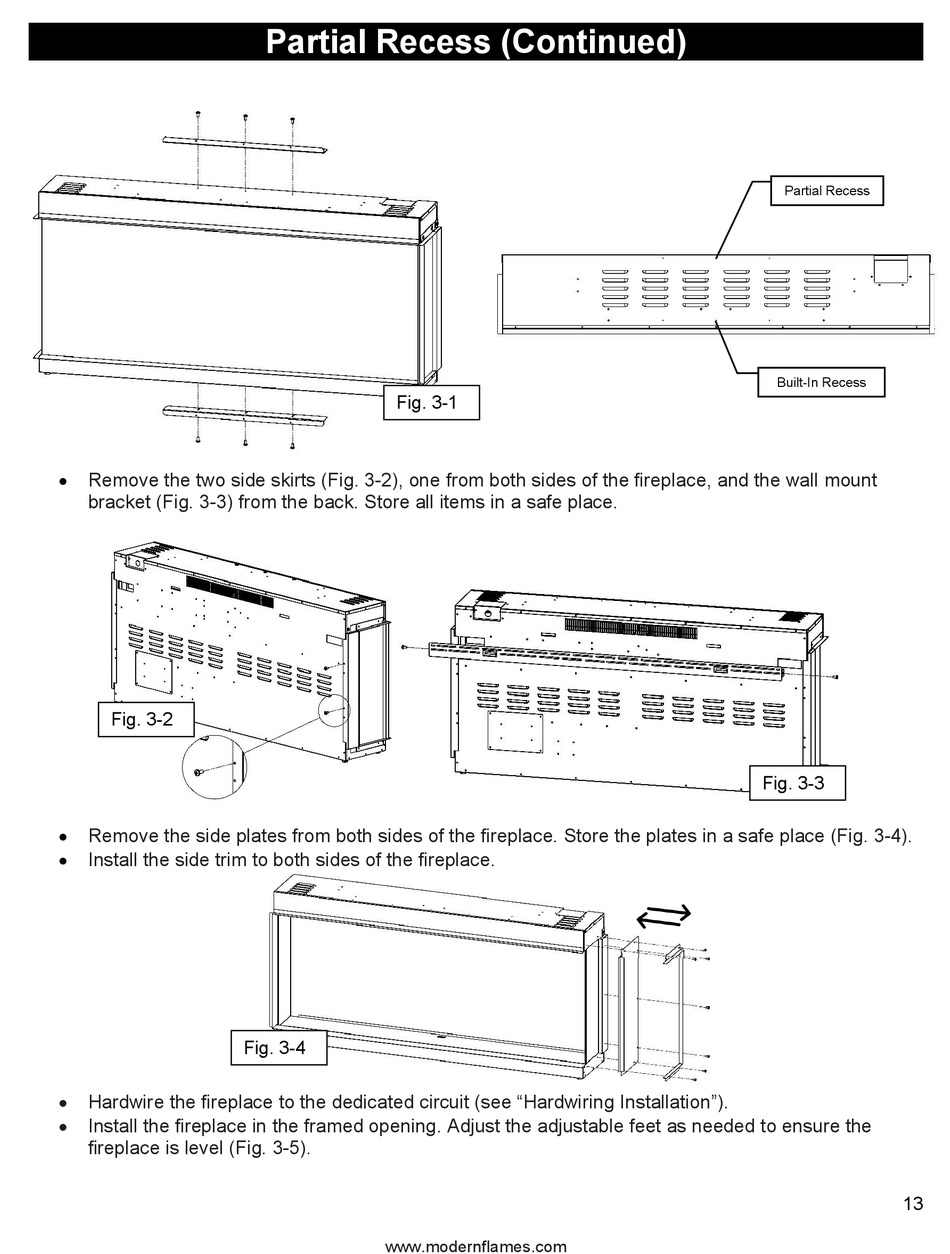

Modern Flames OR30-MULTI-INT Owner's Manual page 13

Remove the two side skirts (Fig. 3-2), one from both sides of the fireplace, and the wall mount

bracket (Fig. 3-3) from the back. Store all items in a safe place.
Fig. 3-2
 Remove the side plates from both sides of the fireplace. Store the plates in a safe place (Fig. 3-4).
 Install the side trim to both sides of the fireplace.
 Hardwire the fireplace to the dedicated circuit (see "Hardwiring Installation").
 Install the fireplace in the framed opening. Adjust the adjustable feet as needed to ensure the
fireplace is level (Fig. 3-5).
Partial Recess (Continued)
Fig. 3-1
Fig. 3-4
www.modernflames.com
Partial Recess
Built-In Recess
Fig. 3-3
13
