Built-In Installation - Modern Flames OR30-MULTI-INT Owner's Manual

 Determine the desired installation style (see "Built-In Installation Styles").
i. See "Wall Mounted Installation" for wall mounting the fireplace.
ii. See "Partial Recessed Installation" for partial recessing the fireplace.
iii. See below for all other installation styles.
 Prepare the framed opening according to the "Framed Opening Dimensions" chart and the
installation style that was selected. Ensure an appropriate dedicated power circuit is provided at
the top right of the framed opening.
Remove the front glass. See "Glass Removal/Installation".

Install the "L" Metal Nailing Flanges to both the top and bottom of the fireplace (Fig. 2-1).

Quantities of "L" Metal Nailing Flanges will change depending on fireplace size ordered. Note that
the location of the "L" bracket will change if partial installation is chosen.
Remove the two side skirts (Fig 2-2), one from both sides of the fireplace, and the wall mount

bracket from the back (Fig. 2-3). Store all items in a safe place.

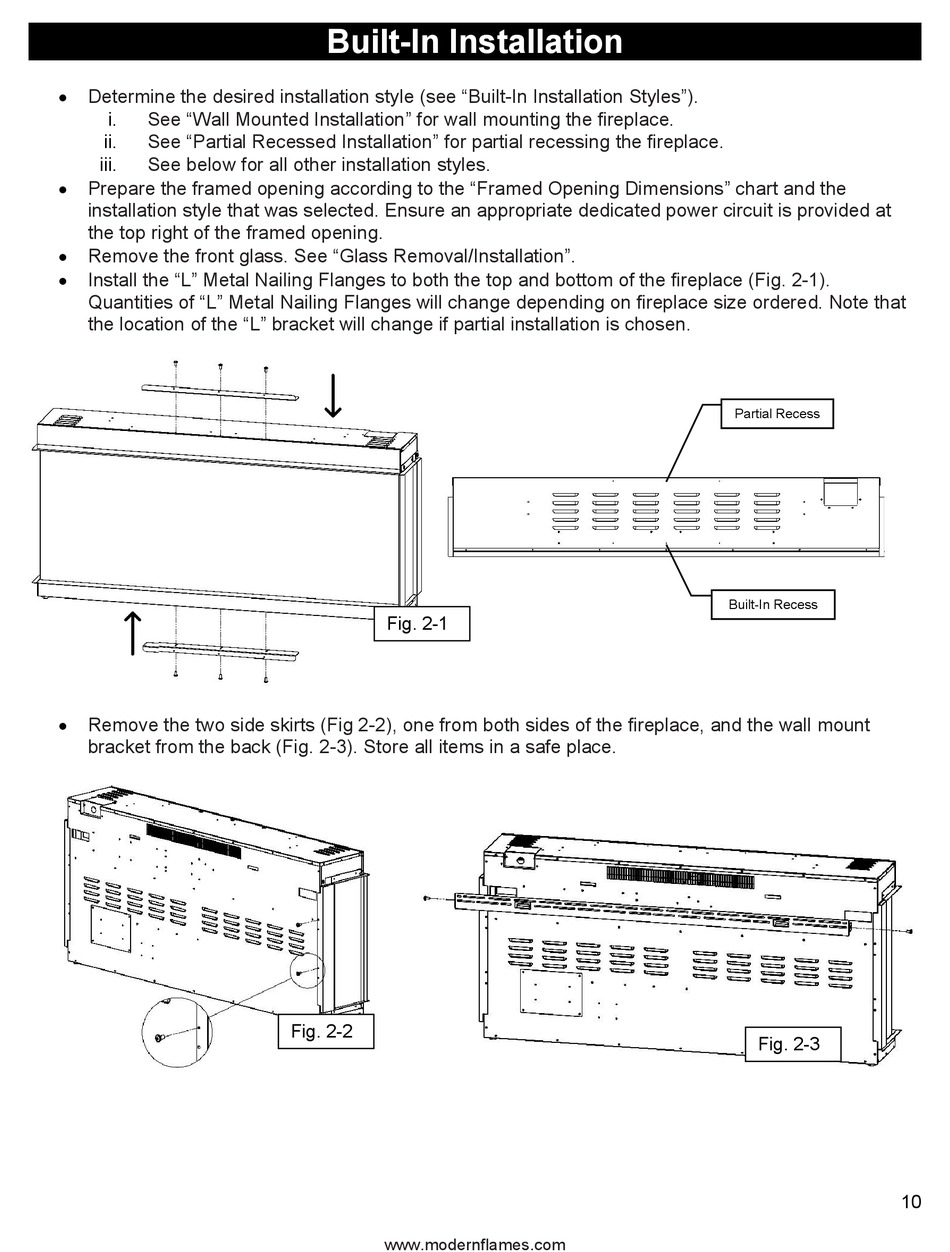

Built-In Installation

Fig. 2-1
Fig. 2-2
www.modernflames.com
Partial Recess
Built-In Recess
Fig. 2-3
