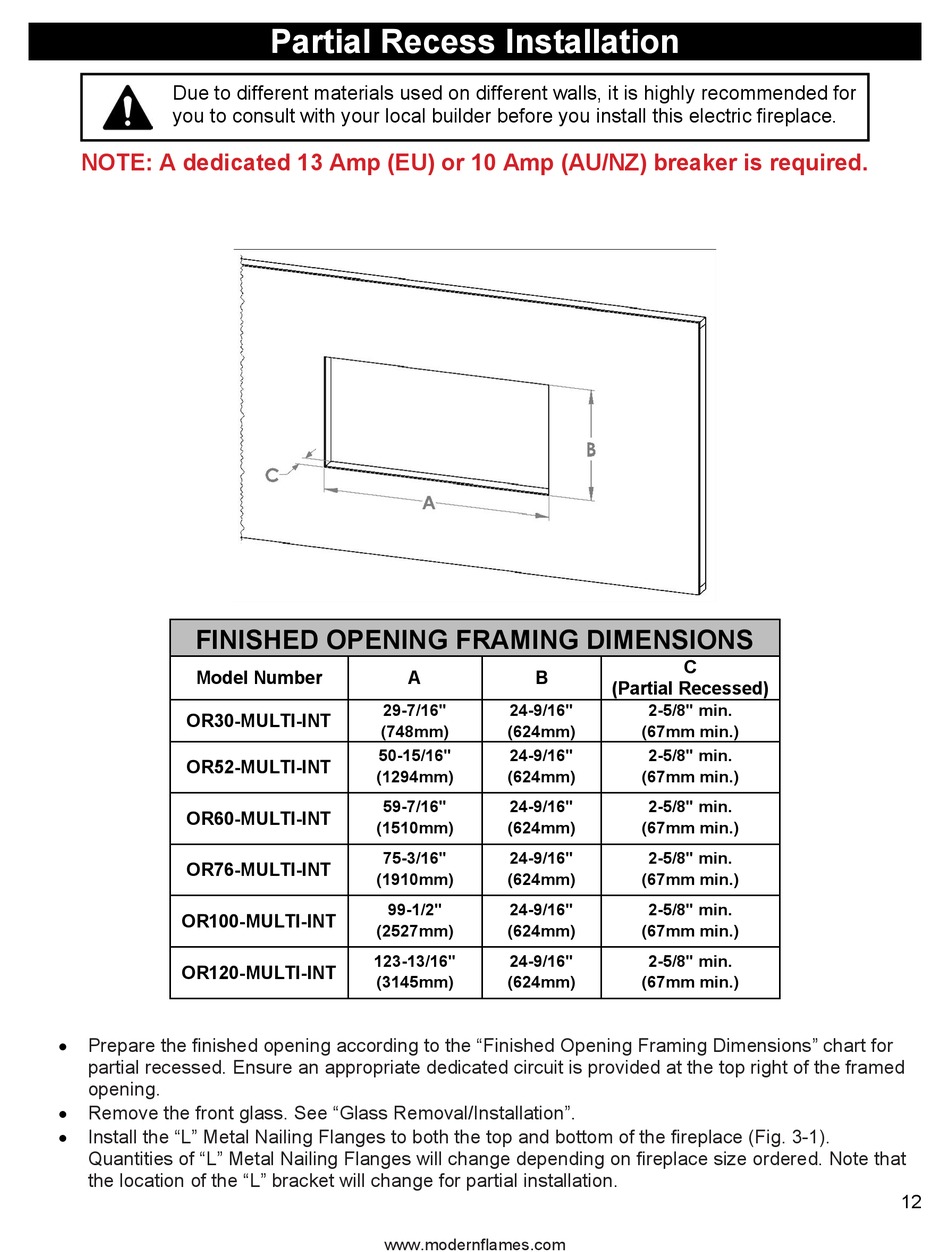

Partial Recess Installation - Modern Flames OR30-MULTI-INT Owner's Manual

Due to different materials used on different walls, it is highly recommended for
you to consult with your local builder before you install this electric fireplace.
NOTE: A dedicated 13 Amp (EU) or 10 Amp (AU/NZ) breaker is required.
FINISHED OPENING FRAMING DIMENSIONS
Model Number
OR30-MULTI-INT
OR52-MULTI-INT
OR60-MULTI-INT
OR76-MULTI-INT
OR100-MULTI-INT
OR120-MULTI-INT
Prepare the finished opening according to the "Finished Opening Framing Dimensions" chart for

partial recessed. Ensure an appropriate dedicated circuit is provided at the top right of the framed
opening.
 Remove the front glass. See "Glass Removal/Installation".
 Install the "L" Metal Nailing Flanges to both the top and bottom of the fireplace (Fig. 3-1).
Quantities of "L" Metal Nailing Flanges will change depending on fireplace size ordered. Note that
the location of the "L" bracket will change for partial installation.

Partial Recess Installation

A
29-7/16"
(748mm)
50-15/16"
(1294mm)
59-7/16"
(1510mm)
75-3/16"
(1910mm)
99-1/2"
(2527mm)
123-13/16"
(3145mm)
www.modernflames.com
C
B
(Partial Recessed)
24-9/16" 2-5/8" min.
(624mm) (67mm min.)
24-9/16" 2-5/8" min.
(624mm) (67mm min.)
24-9/16" 2-5/8" min.
(624mm) (67mm min.)
24-9/16" 2-5/8" min.
(624mm) (67mm min.)
24-9/16" 2-5/8" min.
(624mm) (67mm min.)
24-9/16" 2-5/8" min.
(624mm) (67mm min.)
